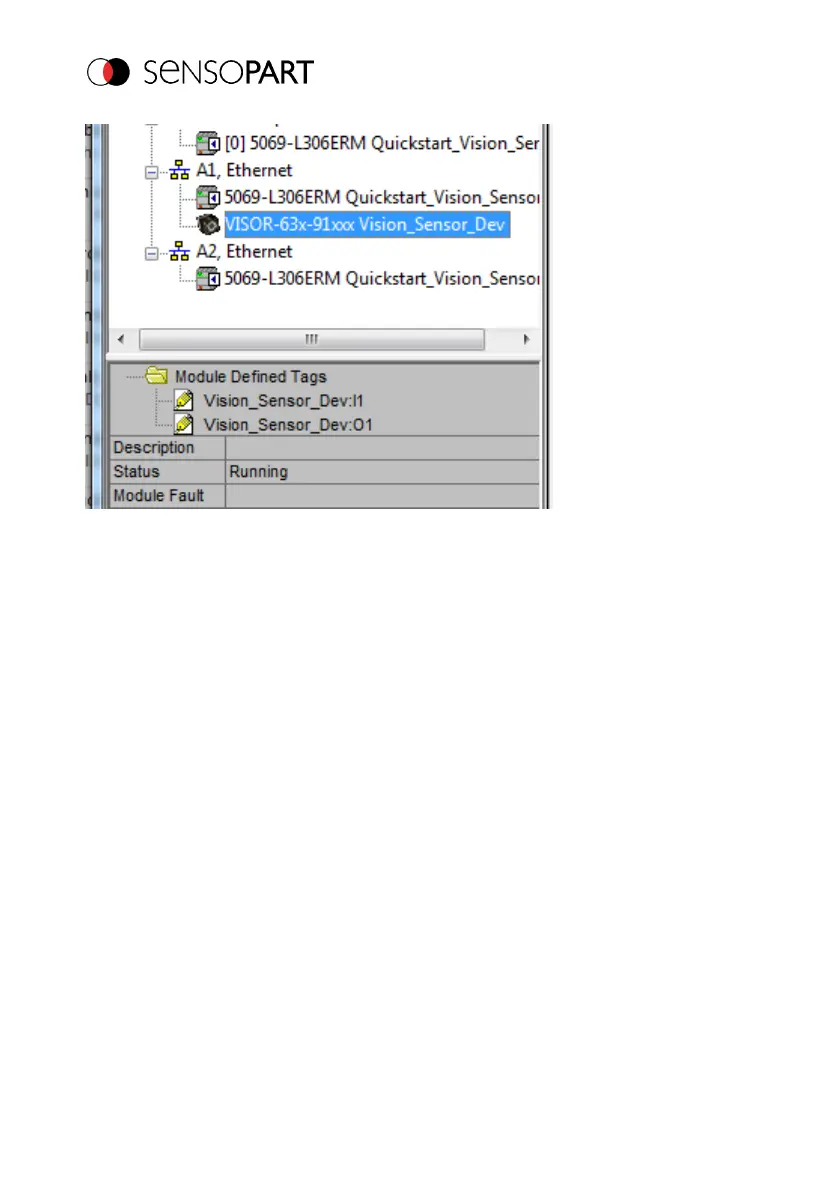

Fig. 67: Running
10.2.4 Mapping of output data
The input data is mapped as follows. (selection of module CNTL + STAT + data (2+69))
Vision-Sensor-Dev …. I1.Data[0] – …. I1.Data [5] Status module (Module 2: "Status" (from
VISOR® to controller) (Page 32))
e.g. ... I1.Data [3] = Job number
…. I1.Data[4] = Image_ID
The data module is appended directly. Start of Data module from ... I1.Data[6] - …. I1.Data[71]
The data specified in Output/Telegram is inserted here. Additional information: Defining
telegrams / data output in SensoConfig (Page 17)
