System drawings
OmniTrax Product Guide Page 77

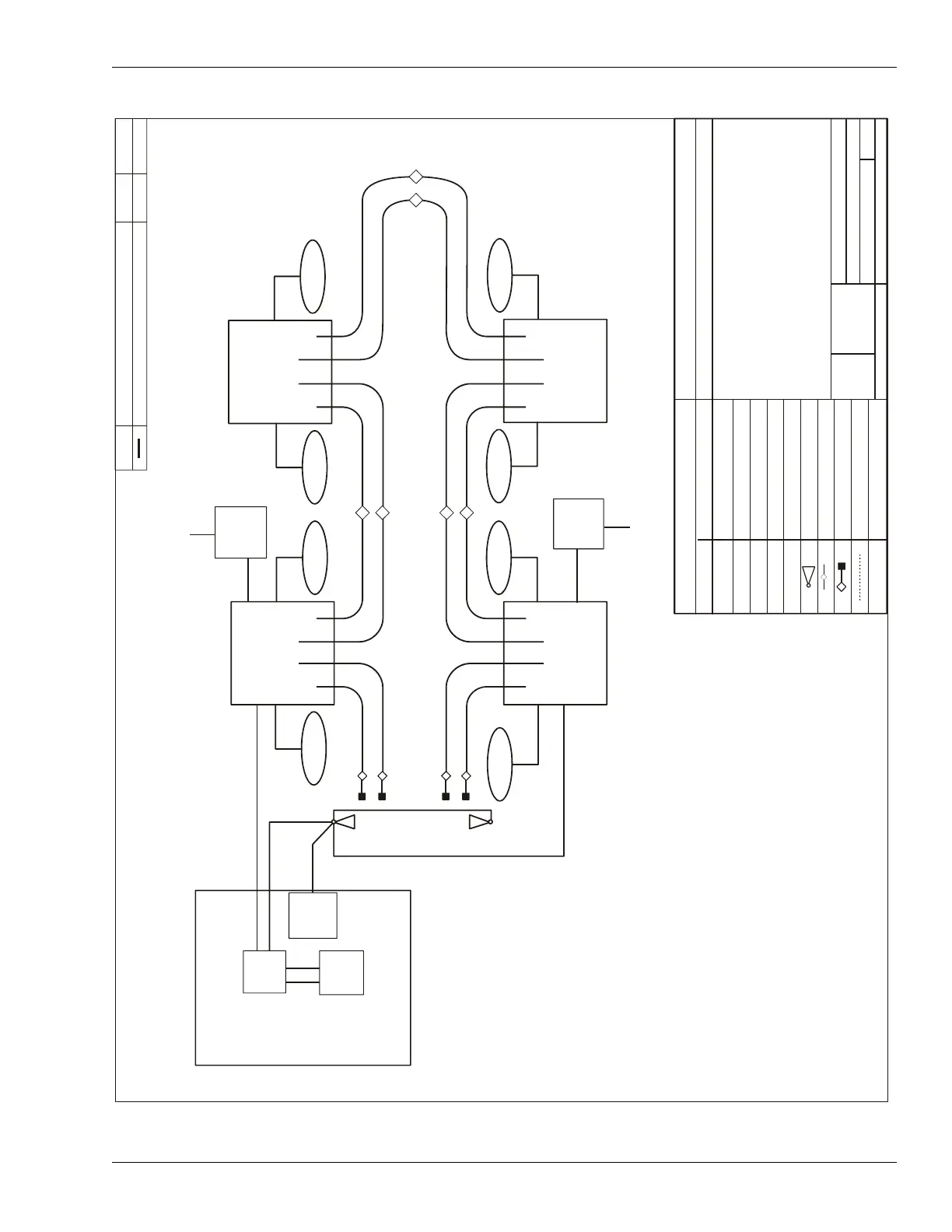

Figure 44: Sample site drawing (network system - connection diagram)
TxB
RxB RxA
TxA
TxB
RxB RxA
TxA
TxB
RxBRxA
TxATxB
RxBRxA
TxA
LTR
DESCRIPTION
CONFIGURATION BASELINE
DATE
APPD
LEGEND
SYMBOL MEANING
OmniTrax PROCESSOR
SECURITY LIGHTING
NETWORK POWER SUPPLY
NETWORK INTERFACE UNIT
UCM & NM COMPUTER
UltraWave MICROWAVE
DECOUPLER
TERMINATOR
OUTSIDE PERIMETER FENCE
PROCESSOR CABLE ID
SIZE
FSCM No.
PART NUMBER
DRAWING NUMBER
VAR.
53
SHEET
SCALE
Sample OmniTrax OC2 Site Plan
(4 Processors, 1 Microwave)
OF
Processor #
PROCESSOR #2
F3 & F4 out
PROCESSOR #3
F3 & F4 out
Z26 to Z30
Z10 to Z15
Z5 to Z9
Z31 to Z35
48 VDC
power
supply
48 VDC
power
supply
PROCESSOR #1
F4 in, F3 out
PROCESSOR #4
F3 in, F4 out
SYNC MASTER
Z1 to Z4
Z36 to Z40
A-Side
B-Side
12 VDC
power
supply
Ethernet
Security Office
Z21 to Z25
Z16 to Z20
1. CABLES IDENTIFIED P1-A THROUGH P4-B ARE OmniTrax
OC2 SENSOR CABLE.
2. EIA-422 DATA CABLES ARE BELDEN 9729. 3. THE PROCESSOR NUMBER IS THE SAME AS THE PROCESSOR
SILVER NETWORK ADDRESS.
NOTE:
SL1-SL4
SL5-SL9
SL10-SL15
SL16-SL20
SL21-SL25
SL26-SL30
SL31-SL35
SL36-SL40
NIU
PC
EIA-422
EIA-422
RX
TX
AC
AC
P1-B P1-A P2-B
P2-A
P3-BP3-AP4-B
P4-A
DC
DC
SL
48VDC
NIU
PC
P1-A
