Note:
These Quick Operating Instructions represent only an
overview of the operating procedures. For a complete setup and
use of the machine, please refer to the Xtra Operator’s Manual.
C-6 20077/021 US XTRA Operator’s Manual

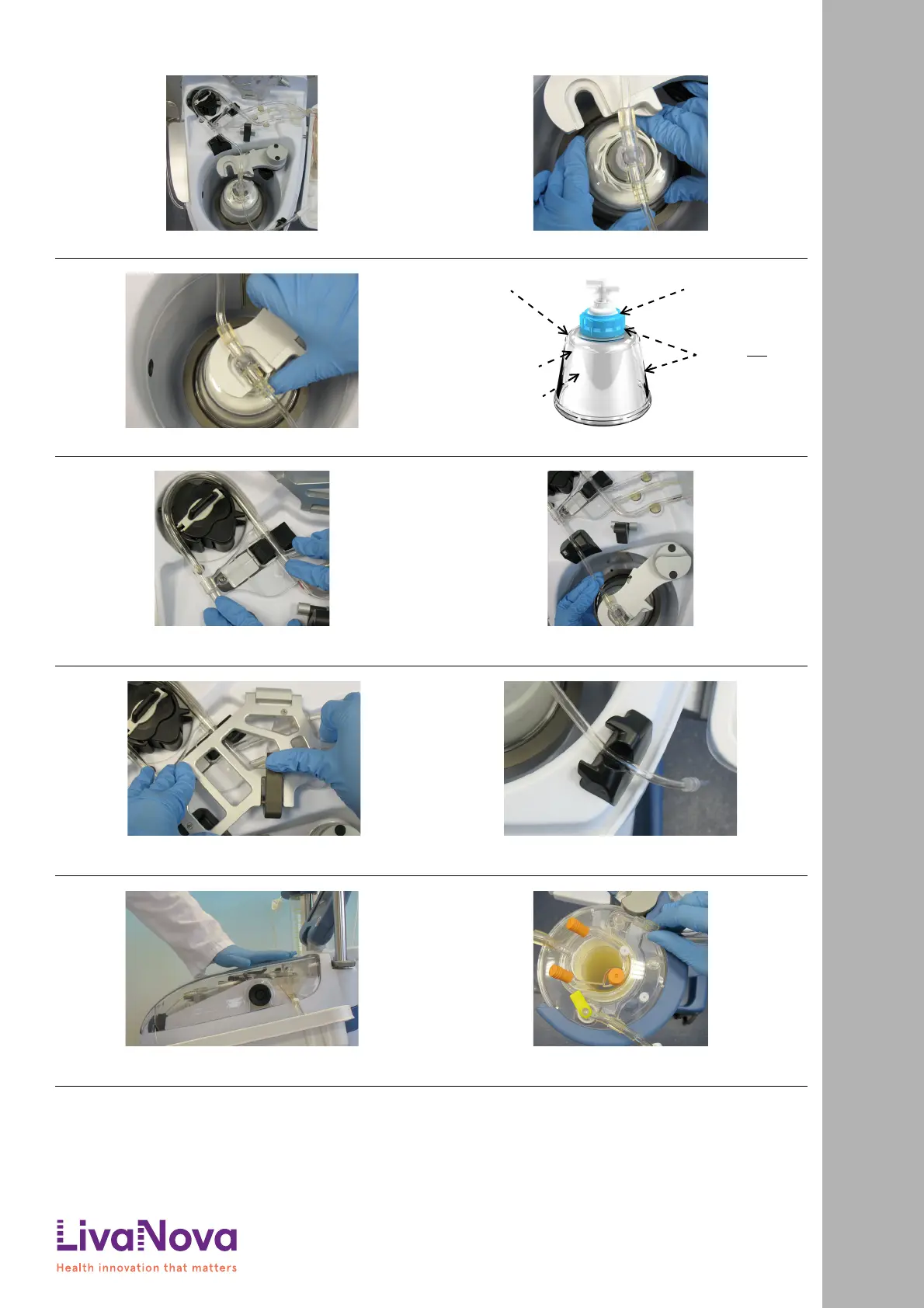

4. Install the Bowl Set:
f. Lower the bowl onto the turntable
4. Install the Bowl Set:
g. Push the bowl straight down
4. Install the Bowl Set:
h. Close the centrifuge arm by swinging it forward
4. Install the Bowl Set:
i. Manually rotate the bowl to ensure that it rotates without eccentricity
4. Install the Bowl Set:
j. Line up the tubing so that the pump loop cartridge snaps into the notch
provided and the organizer is properly seated
4. Install the Bowl Set:
k. Make sure that the tubing is correctly seated into the air sensor
4. Install the Bowl Set:
l. Close and latch the clamp lid
4. Install the Bowl Set:
m. Make sure the waste line is properly seated into the waste fluid transparency
indicator
4. Install the Bowl Set:
n. Close the centrifuge lid
4. Install the Bowl Set:
o. Connect the fill line (blue) to the outlet port of the reservoir covered with a
blue cap
Look here
Bowl shoulder
Internal white
Bowl collar
Do not
look here
Setting Up the Disposables
Quick Start Instructions: Setting Up the Disposables
