Important

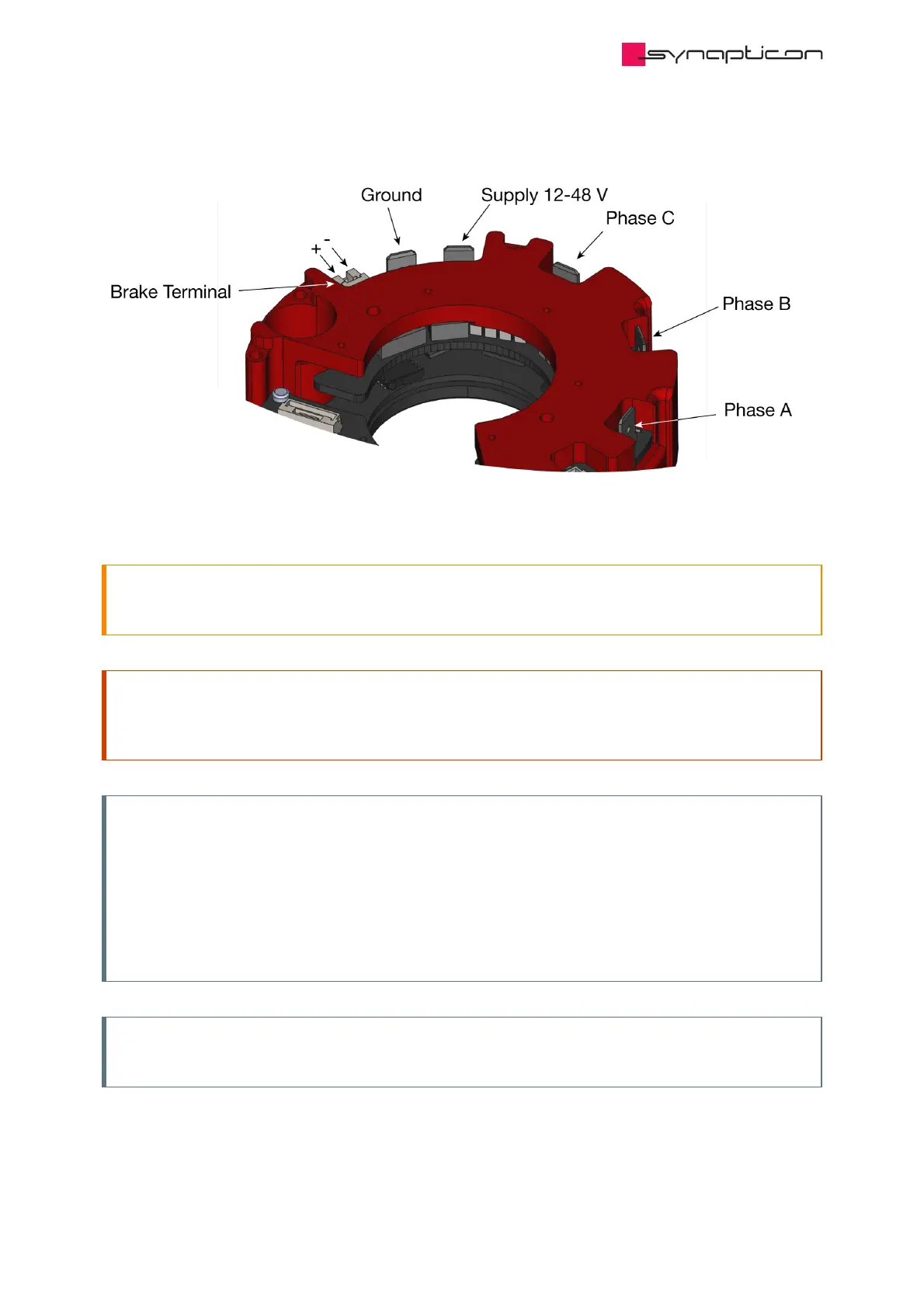

The motor and power cables must be twisted for EMC reasons.
Attention
No reverse polarity protection! Always ensure that the power cables are connected correctly, otherwise
the Drive may be damaged beyond repair!
Note
SOMANET servo drives are densely packed with high-performance components. Even at idle/torque off,
several components such as power supplies, cause the servo drive to get warm, especially when it’s not
connected to any heat conducting structure. The servo drives’ power stages and control algorithms were
optimized for efficiency at high power output and actually make them one of the most efficient servo
drives available. The heat generation is not linear, which makes it actually more noticable at idle or low
power. Please ensure by design of your mounting situation that the heat interface is connected to
sufficient structure to appropriately dissipate generated heat.
Note
Use a protected extra-low voltage (PELV) power supply.
