2.1.1.2 Installation
1. Plug in the power connector; the box will automatically boot.
Note
The power supply has an output rating of 5 V , 4000 mA.
2. The box is connected to the local network via WiFi. You can access OBLAC Drives over the local area
network.

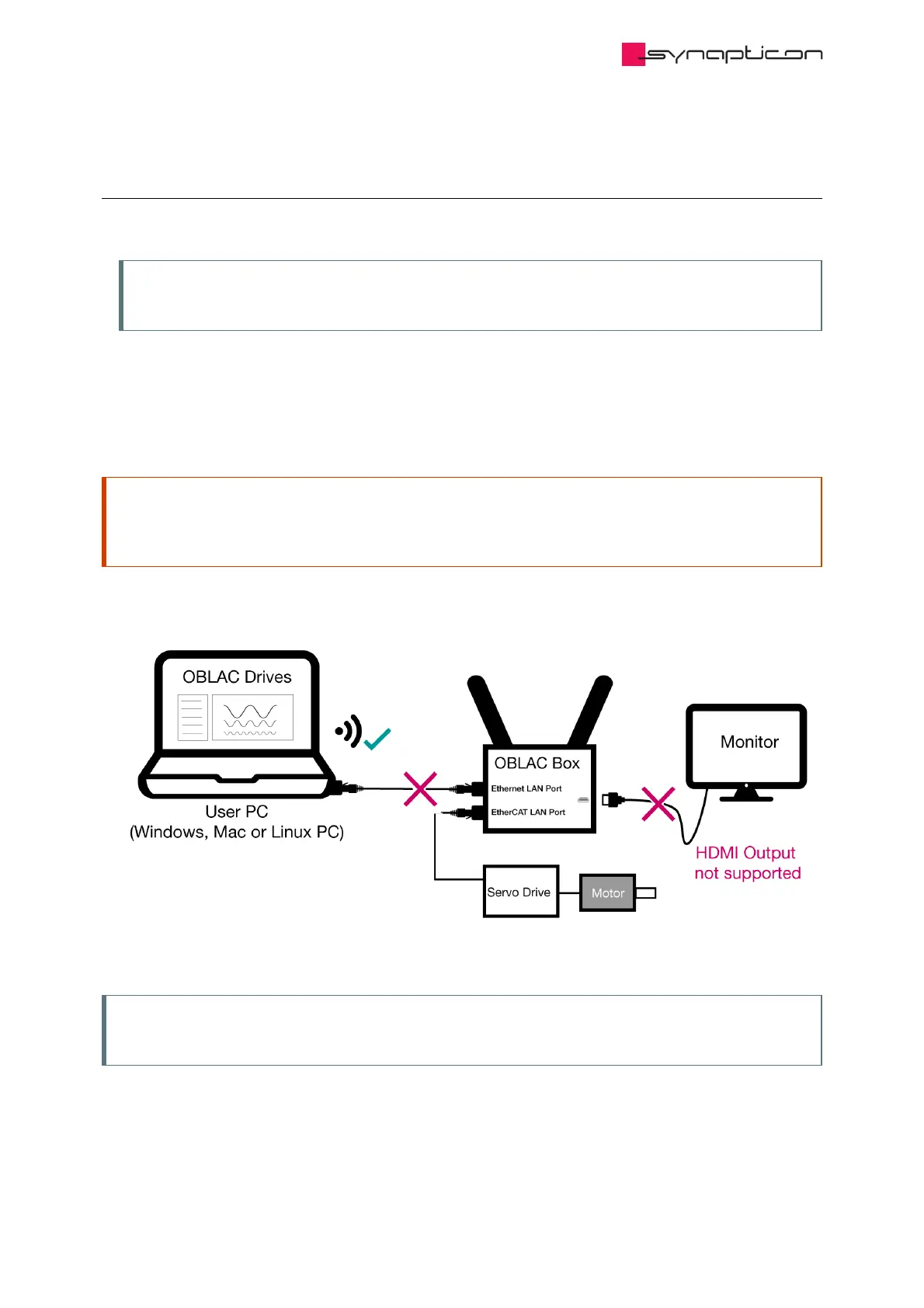

3. Connect the EtherCAT cable to the lower LAN port on the back of the box. Connect this to the SOMANET
servo drive on port IN.
Attention
Ensure that the LAN ports are used correctly: The upper LAN port is not used. The lower LAN port is
required for EtherCAT communication. When the ports are switched, no communication is possible!
The Box is controlled via WiFi.
Note
The HDMI port is without function. You require a dedicated host PC to control OBLAC Box.
For tuning, you may connect several servo drives via EtherCAT and tune one by one.
