1.2.3.1.6 Circulo Hybrid EtherCAT - STO Cable
Attention
Please note that all cables delivered by Synapticon are for development and testing purposes only.
Make sure the cables used in production comply with the requirements of your application in terms of
bending or torsion.
1.2.3.1.6.1 Overview

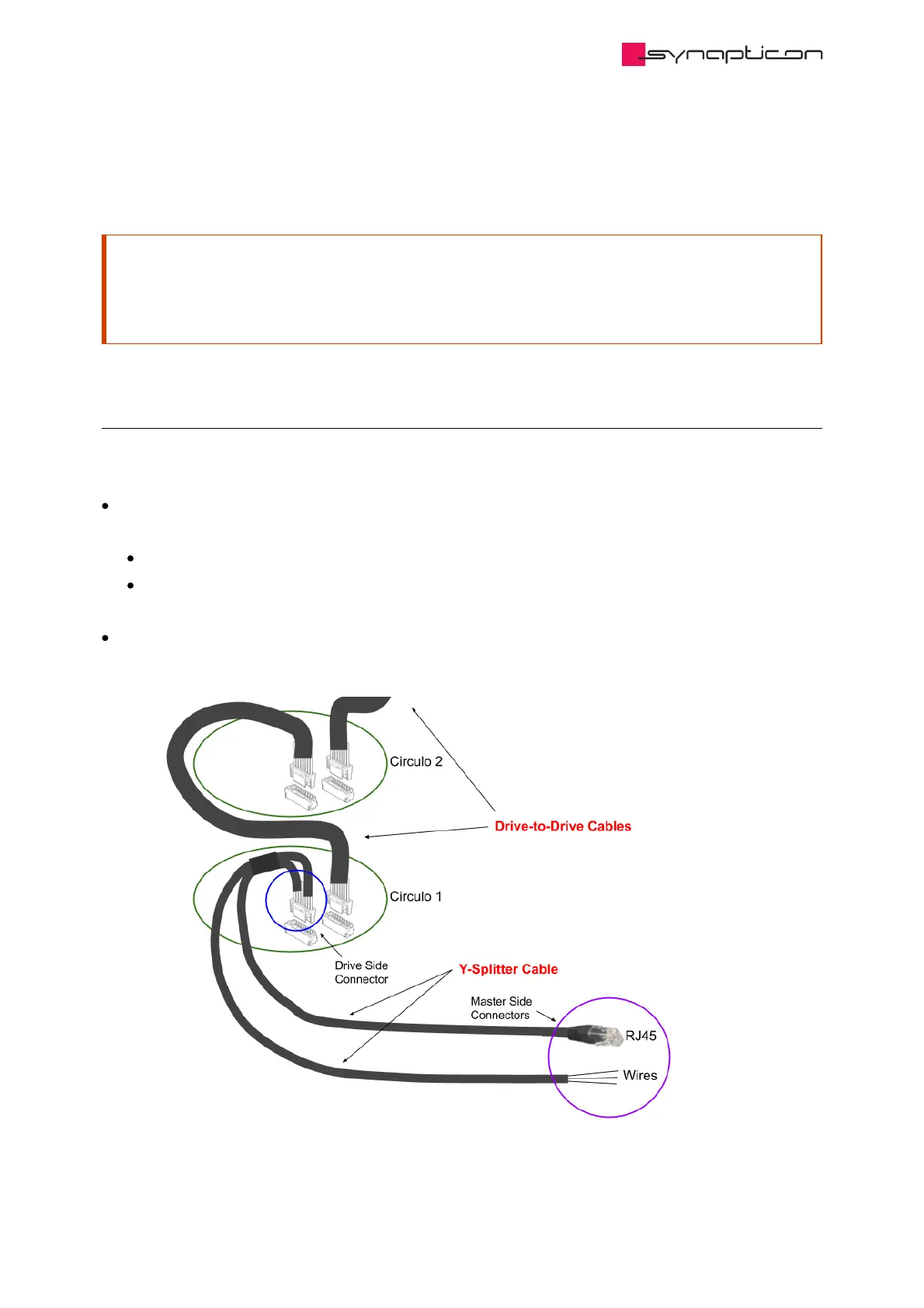

The following picture demonstrates the concept of Synapticon’s Hybrid EtherCAT-STO Cable. There are two
types of cables that are considered:
A Y-Splitter cable that connects the first servo drive with the master.
It has two terminals:
A standard RJ45 connector for the Ethernet communication with the master
A three strand wire that needs to be connected to your safety output (STO-SBC In 1, STO-SBC In 2 and
Safety GND)
A Drive-to-Drive cable that connect servo drives with each other.
These cables have a customized connector that incorporates pins for all necessary signals.
