Manufacturer Phoenix
Contact
Part number 1771059
Conductor cross section solid min. 0.14 mm²
Conductor cross section solid max. 0.5 mm²
Conductor cross section flexible min. 0.2 mm²
Conductor cross section flexible max. 0.5 mm²
Conductor cross section flexible, with ferrule without plastic
sleeve min.
0.25 mm²
Conductor cross section flexible, with ferrule without plastic
sleeve max.
0.5 mm²
Conductor cross section AWG min. 26
Conductor cross section AWG max. 20
Note
No mating part required. This push-IN terminal works with solid and flexible cables as well as ferrules.
Note
The PCB can be shrinked to a shrink tube with a diameter of 20 mm.
1.4.3.5 Strain relief

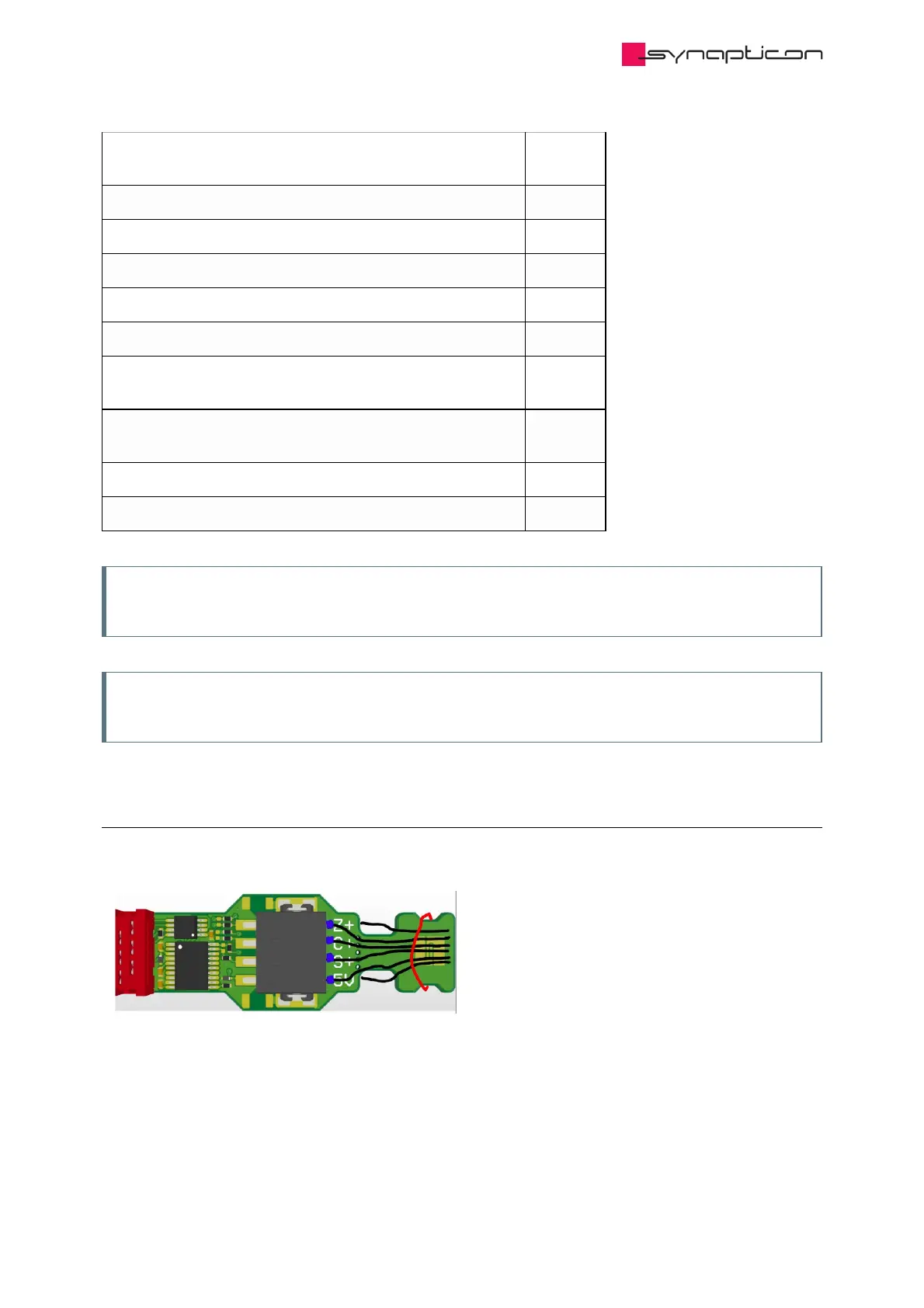

The board will be delivered with a strain relief. A cable tie can be used as a strain reliever:
On the right side of the image, the cable tie is symbolized in red and the cables in black. The Synapticon Logo
can be connected to PE, e.g. the shield of a cable. There is the possibility to place a CAP and a resistor between
PE and GND. In Standard version this is not placed.
If not needed, the strain reliever part can be broken off, then the module is shorter.
