The supply is protected against short to ground and keeps the current below 400 mA in a continuous short.

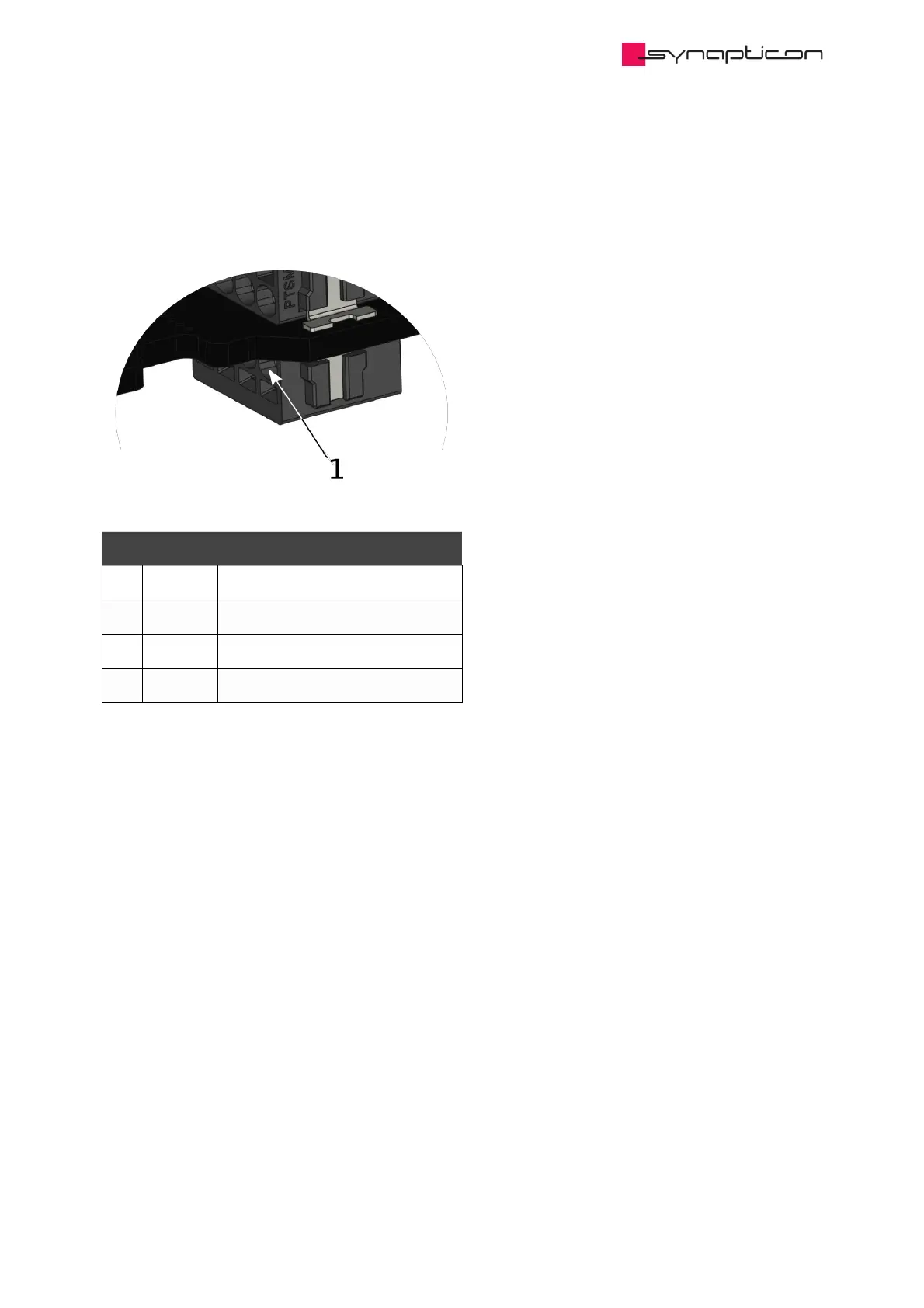

1.4.2.3.2 Encoder Connector Bottom
Pin Signal Direction / Comment
1 ZERO - Input
2 COS - Input
3 SIN - Input
4 GND 5 V return
1.4.2.3.3 Interface Connector
The interface connector comes with a cable which will be connected to the encoder port that features BiSS.
For connecting, please use a flat ribbon cable with 1.27mm pitch.
