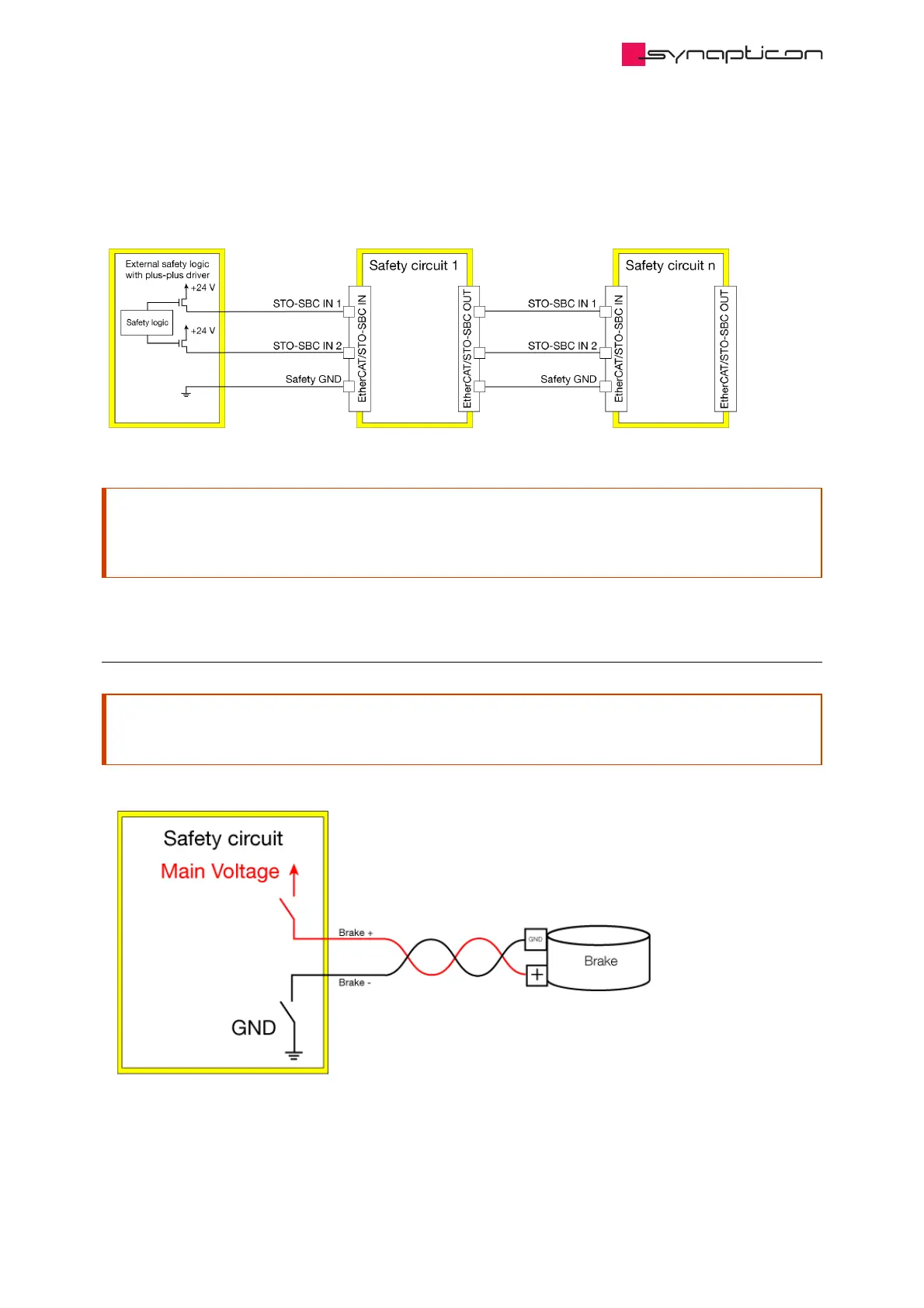

1.2.6.4.3.2.3 Safety PLC PP (Plus-Plus output) + drives
Allows safety functions up to SIL 3, PL e, cat.3.
Attention
In case of multiple drive connection, ensure that the output driver has sufficient current driving
capability.
1.2.6.4.3.3 Connection diagram for the brake
Attention
When using a safe brake ensure to connect the safe brake GND to Brake- instead of a general GND
Now you are ready to use the feature:
Synapticon Documentation
© 2021 Synapticon GmbH | Daimlerstraße 26 | D-71101 Schönaich Documentation v 4.11.0 | Built 2021-07-23 207/887
