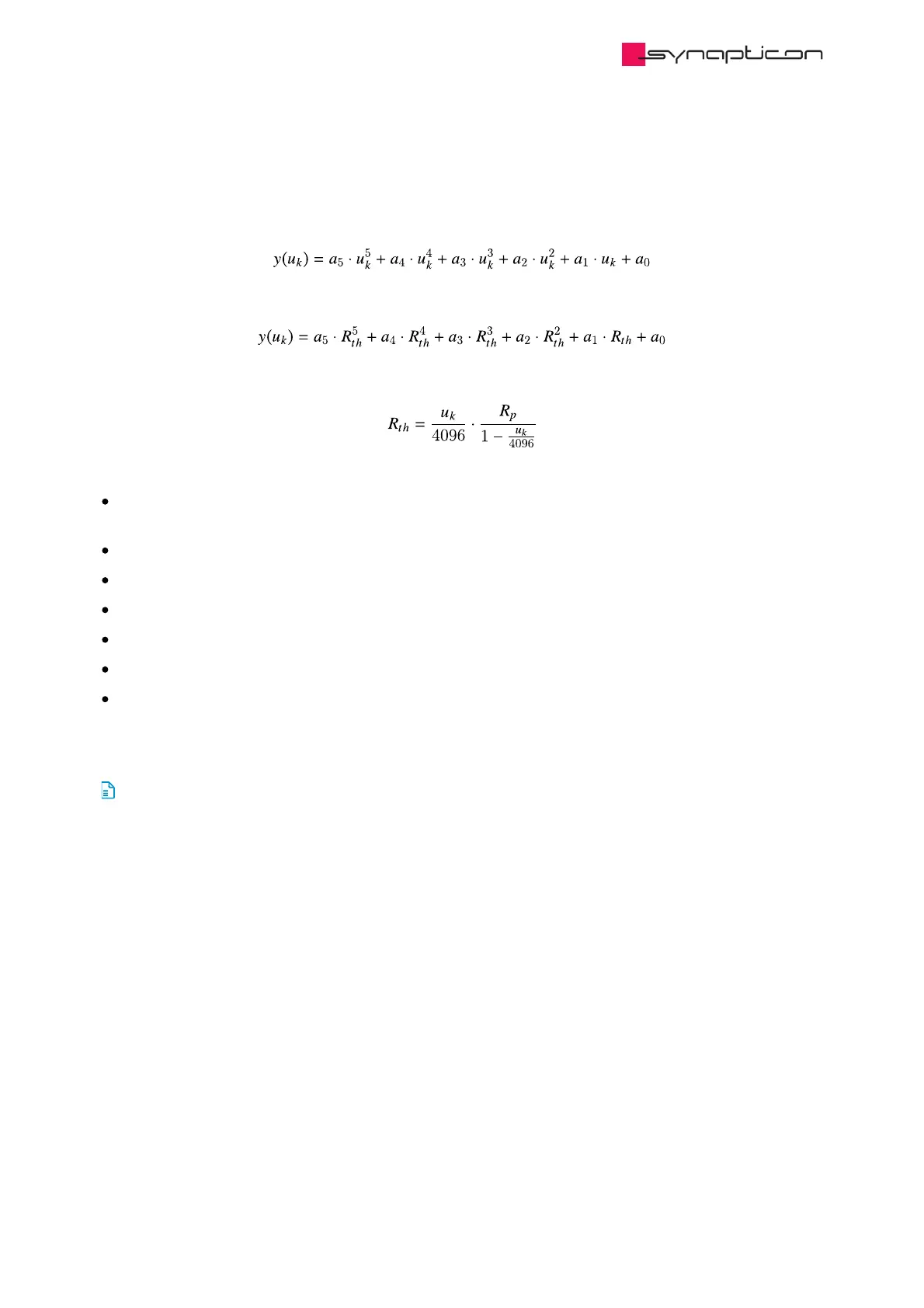

3.1.4.1.4.2.4 Polynomial
If R := 0 (no voltage divider)
If R > 0 (user specified pull-up resistor for voltage divider)
with
The coefficients and the pull-up resistor values are specified in object 0x2038, subitems 2-9
0x2038:3 (Resistance R): Select the pull-up resistor connected to the selected analog input. Value is given in
Ohm.
0x2038:4 (Constant a0): Constant a0 of the polynomial (Offset).
0x2038:5 (Constant a1): Constant a1 of the polynomial (1st order coefficient)
0x2038:6 (Constant a2): Constant a2 of the polynomial (2nd order coefficient)
0x2038:7 (Constant a3): Constant a3 of the polynomial (3rd order coefficient)
0x2038:8 (Constant a4): Constant a4 of the polynomial (4th order coefficient)
0x2038:9 (Constant a5): Constant a5 of the polynomial (5th order coefficient)
p
p
3.1.4.1.4.2.4.1 Parameters related to External scaled measurement
0x2038 External scaled measurement Transforms an analog input to an output by a 5th order polynomial
