DISPLAY(continued)

Language

g288339

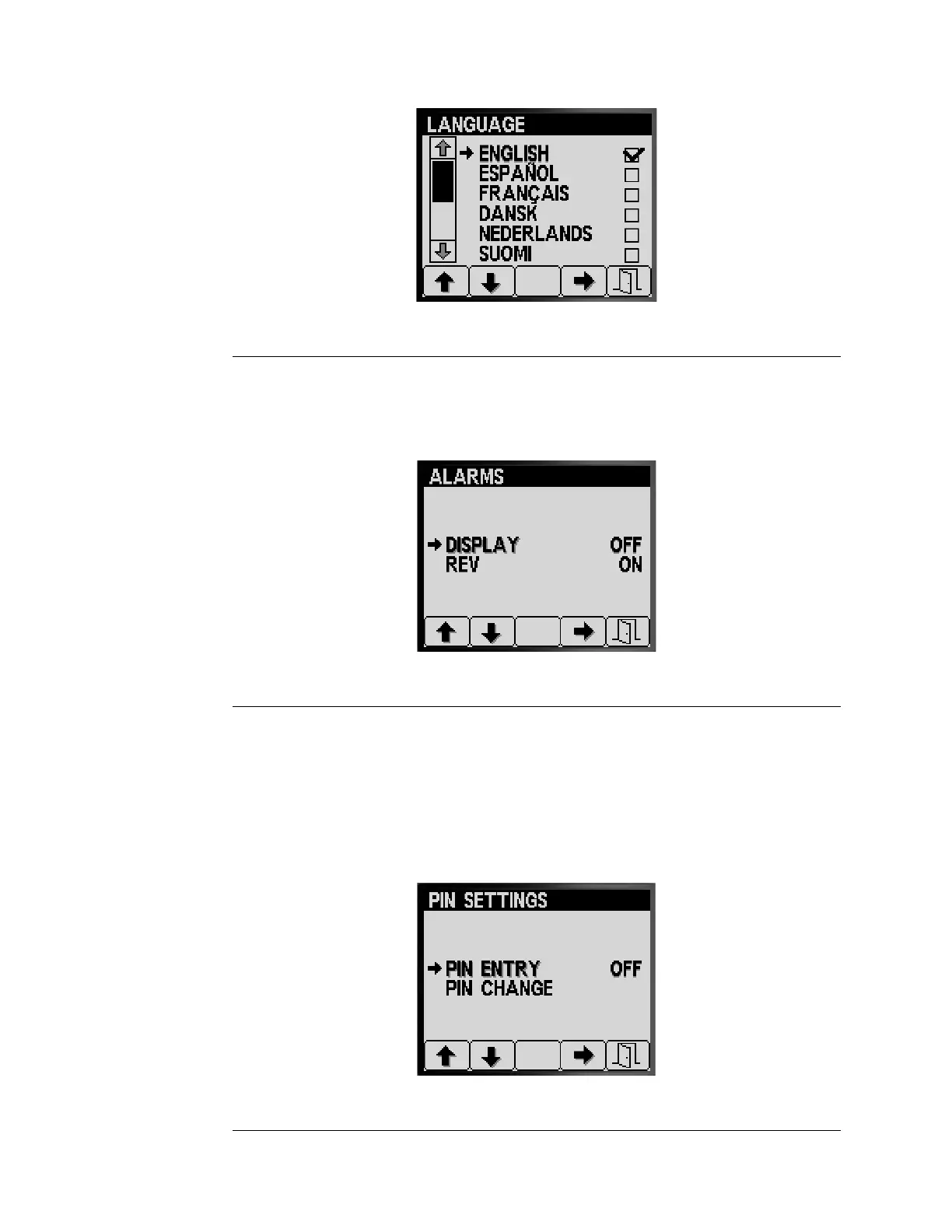

Figure176

TheLANGUAGEsettingallowstheInfoCenterDisplaylanguagetobechosen

(Figure176).

Alarms

g288340

Figure177

WhenDISPLAYisON,atonewillsoundwheneverabuttonontheInfoCenteris

pressed.WhenDISPLAYisOFF ,notonewillsound(Figure177).

AnoptionalBackupAlarmisavailableforGroundsmaster5900/5910machines.

WhenthealarmisinstalledandREVisON,atonewillsoundfromthebackup

alarm.WhenREVisOFF,notonewillsound(Figure177).

PINSettings

g288341

Figure178

ElectricalSystem:InfoCenterDisplay

Page6–38

Groundsmaster
