RearAxleService

g298845

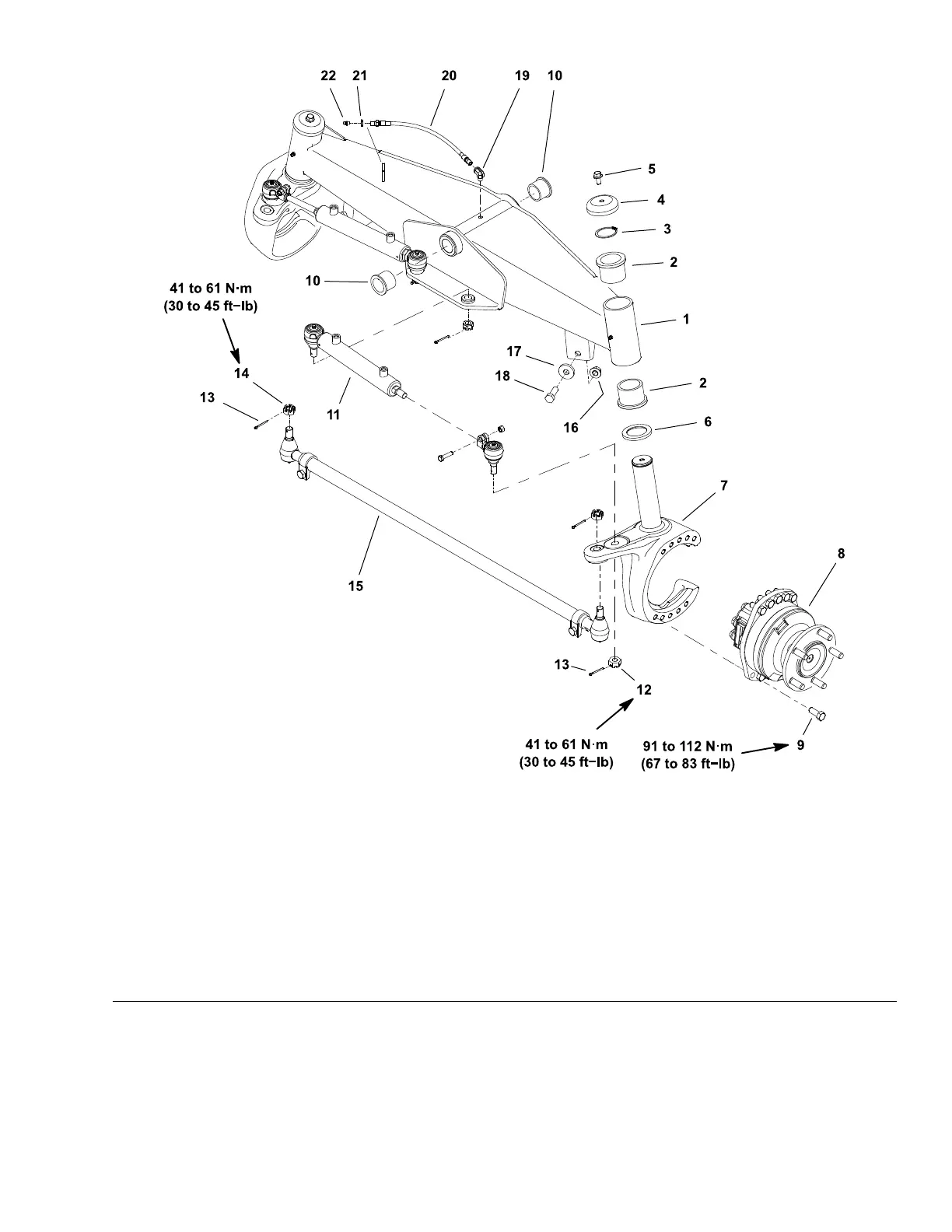

Figure295

1.Rearaxle

9.Capscrew(10permotor)17.Washer(2)

2.Flangebushing(4)10.Flangebushing(2)18.Capscrew(2)

3.Retainingring(2)11.Steeringcylinder(2)

19.Elbow

4.Spindlecap(2)12.Castlenut(4)

20.Greasehose

5.Flangeheadscrew(2)13.Cotterpin(6)

21.Nut

6.Thrustwasher(2)14.Castlenut(2)22.Greasetting

7.Spindle−LH

15.Tierodassembly

8.Wheelmotor−LH

16.Locknut(2)

Note:Ifservicetotherearwheelmotorsorsteeringcylindersisrequired,see

Chapter5:HydraulicSystem(page5–1).

Groundsmaster

5900&5910

Page7–13

Chassis:ServiceandRepairs

16227SLRevB
