FrontCuttingDeckWingletAssembly(Figure324)
1.Positionwinglettofrontdeck.
Note:Installpreviouslyusedeccentricspacersintheiroriginallocations.
2.Installeccentricspacersinwingletandcenterframebrackets.Securefront
deckwinglettocenterdeckwithhingepins,capscrewsandlocknuts.Do
notfullytightenfasteners.
3.Usea⅜”or½”driveratchetorbreakerbartorelieveidlerpulleytensionand
installupper(winglet)drivebelt.Makesurethatidlerpulleyappliestension
againstthebacksideofthebelt.

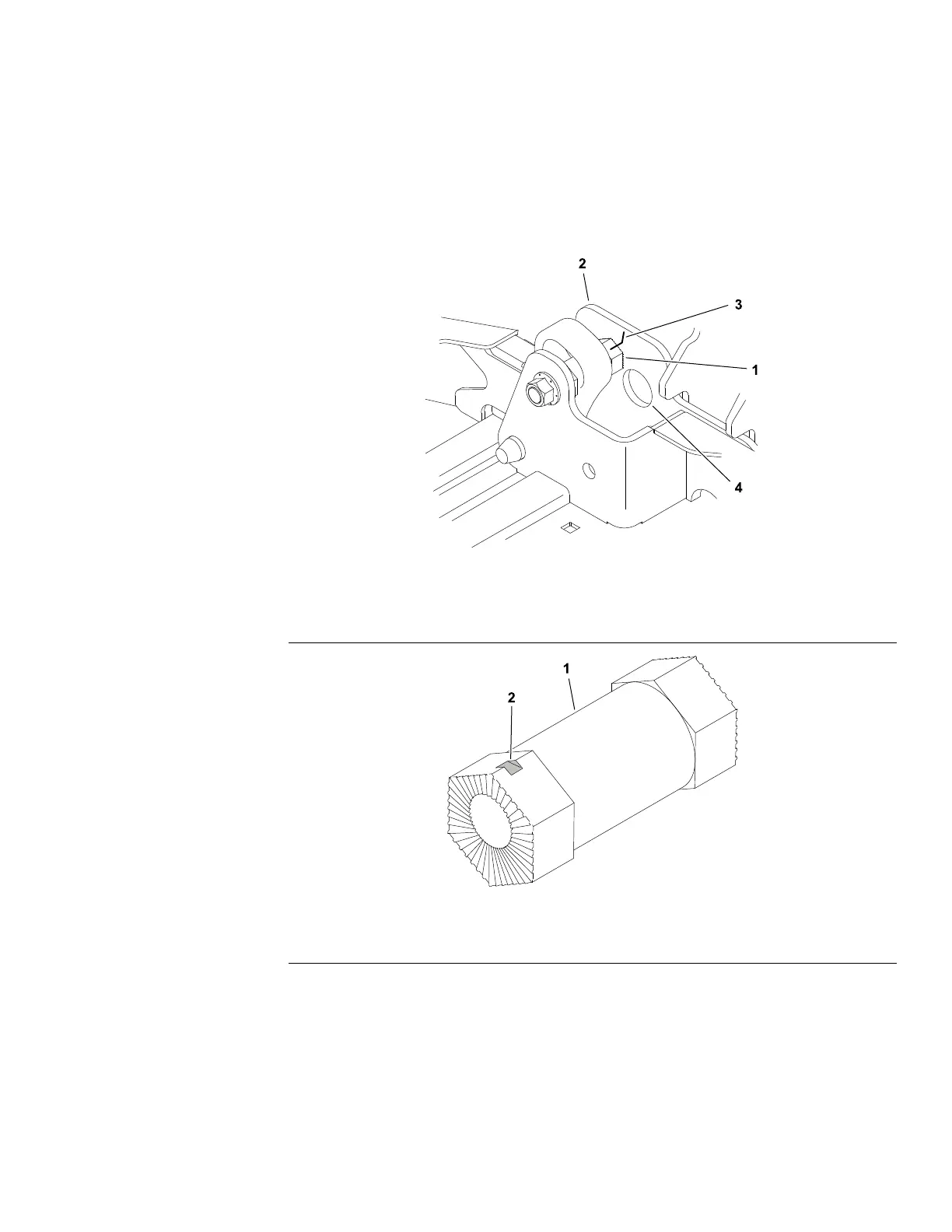

g299361
Figure325
1.Eccentric
3.Marker/paintline
2.Deckbracket4.Eccentricaccesshole
g299362
Figure326
1.Eccentricspacer2.Notchacrosshexpoint
4.Settheeccentricspacers:
A.Ifpreviouslyremovedeccentricspacersarebeingused,alignthemarker
orpaintpenlinesmadeduringdisassemblytopositiontheeccentric
spacers(Figure325).
Groundsmaster
®
5900&5910
Page8–7
CuttingDecks:ServiceandRepairs
16227SLRevB
