HeatingandAirConditioningComponents(continued)

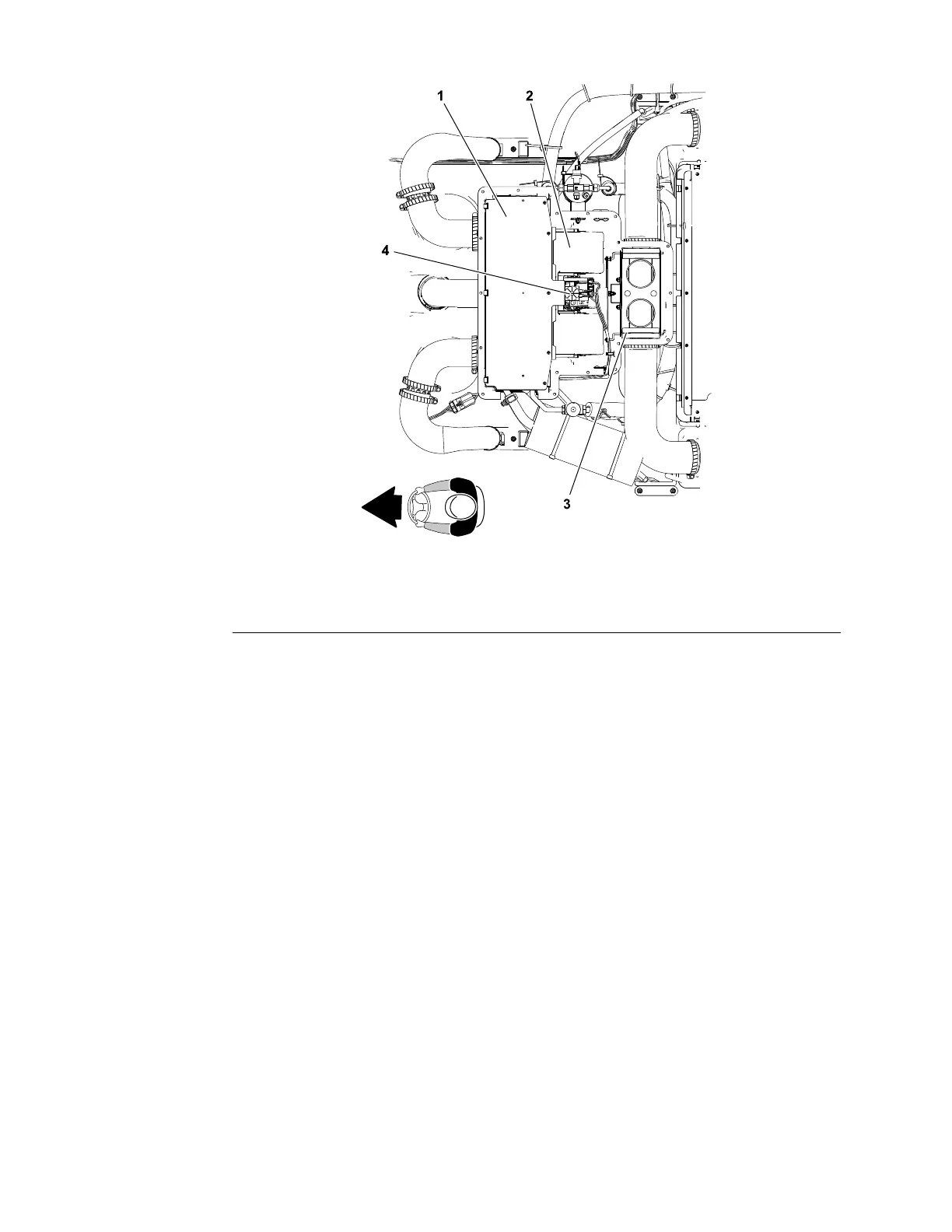

g299832

Figure344

1.Evaporator/heatercores

3.Airdiverterassembly

2.Blowerfan4.A/Cfreezeswitch

Accesstocabheatingandairconditioningcomponentscanbeobtainedby

removingthecabroof.Oncethecabroofisremoved,theillustrationsinFigure

343andFigure344canbeusedtoidentifythecomponentsusedforheating

andcoolingtheoperatorcab.

Note:Figure344showstheheatandA/Cmixingboxassemblywiththemixing

boxcoverremoved.

Note:A/Csystemcapacityis3.43lbofR134arefrigerant.

OperatorCab:ServiceandRepairs

Page9–12

Groundsmaster

5900&5910

16227SLRevB
