Problem Solving
8
267

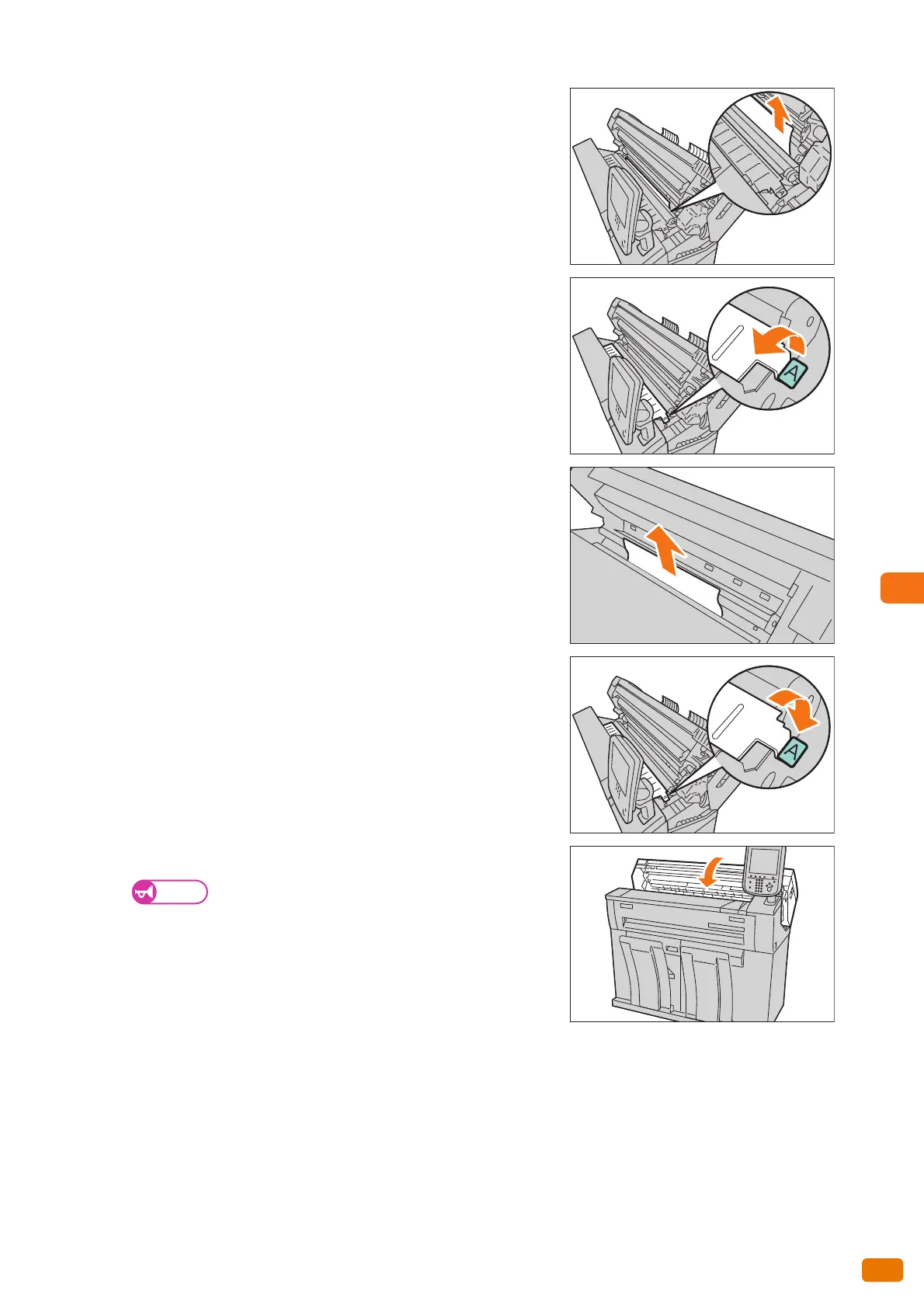

8.10 When a Paper Jam Occurs
2.
Remove the jammed paper from the opening.
3.
If you cannot see the jamm
ed pa
per from the opening, pull up
the green tab [A], and remove the paper jammed in
side the
paper feed area.
4.
Return the [A] tab back to its original position.
5.
Close the upper unit.
Impor
tant
Be caref
ul not to pinch your fingers.
