9.3 Common Service Settings
294
9.3.5 Color Scan Settings
You can use this feature to specify the degree value on the color circle.
This feature allows you to define the color to be recognized as the boundary between adjacent colors.

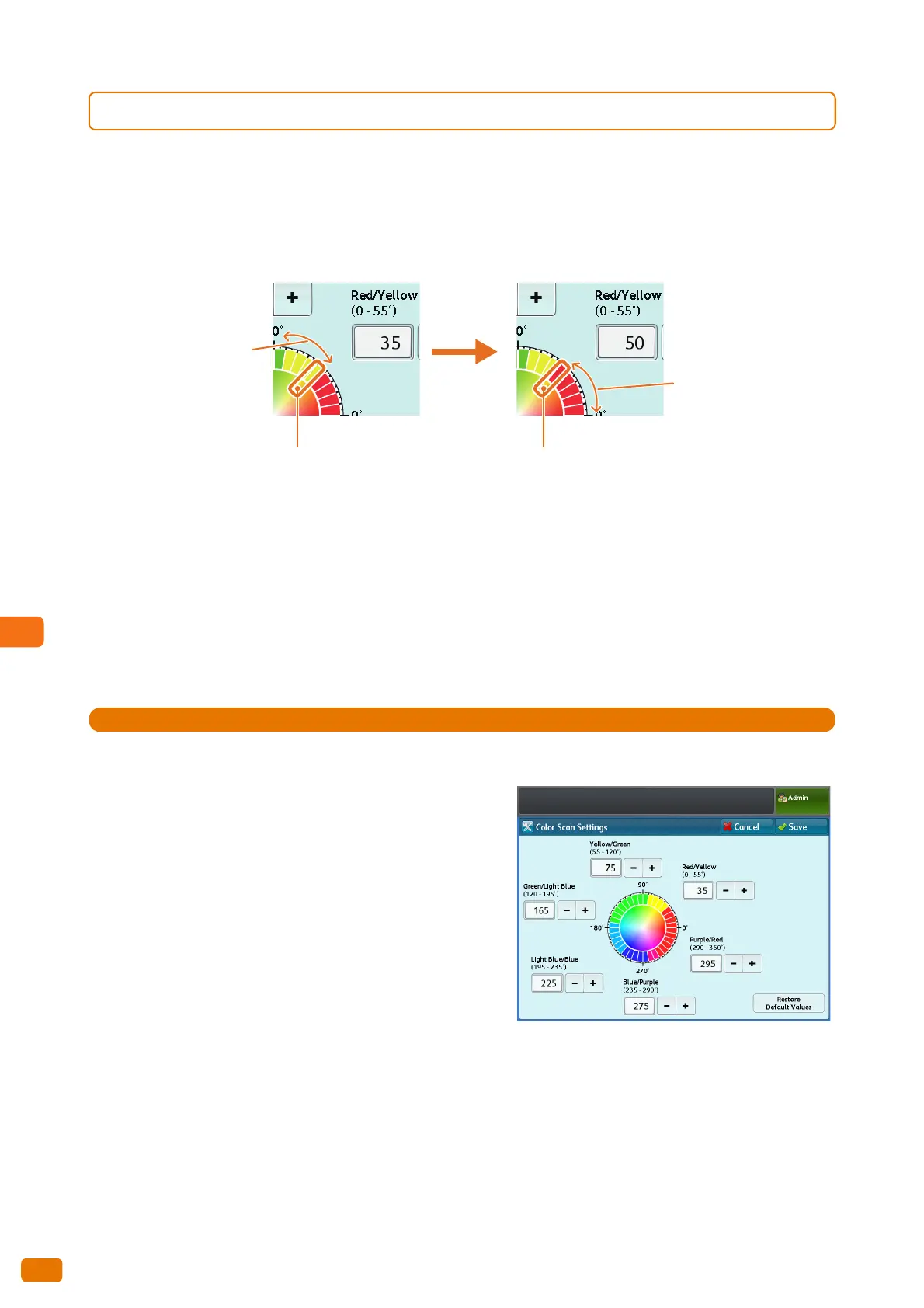

For example, when [Red/Yellow] is set to [35], orange between yellow and red illustrated in the figure below is
recognized as yellow, and when it is set to [50], the orange is recognized as red.
The scan color settings specified here are used with [Output Color] and [Adjust Color Density].
The factory defaults are:

Red/Yellow: 35

Yellow/Green: 75

Green/Light Blue: 165

Light Blue/Blue: 225

Blue/Purple: 275

Purple/Red: 295
Steps
St
1.
Press [Color Scan Settings].
2.
Adjust the value by using the numeric keypad or by
pressing [+] and [-].
3.
Press [Save].
Orange Orange
35-degree (Yellow) 50-degree (Red)
Recognized as
red
Recognized as
yellow
