Problem Solving
8.10 When a Paper Jam Occurs
268
8.10.4 Paper Jams in the Fusing Unit

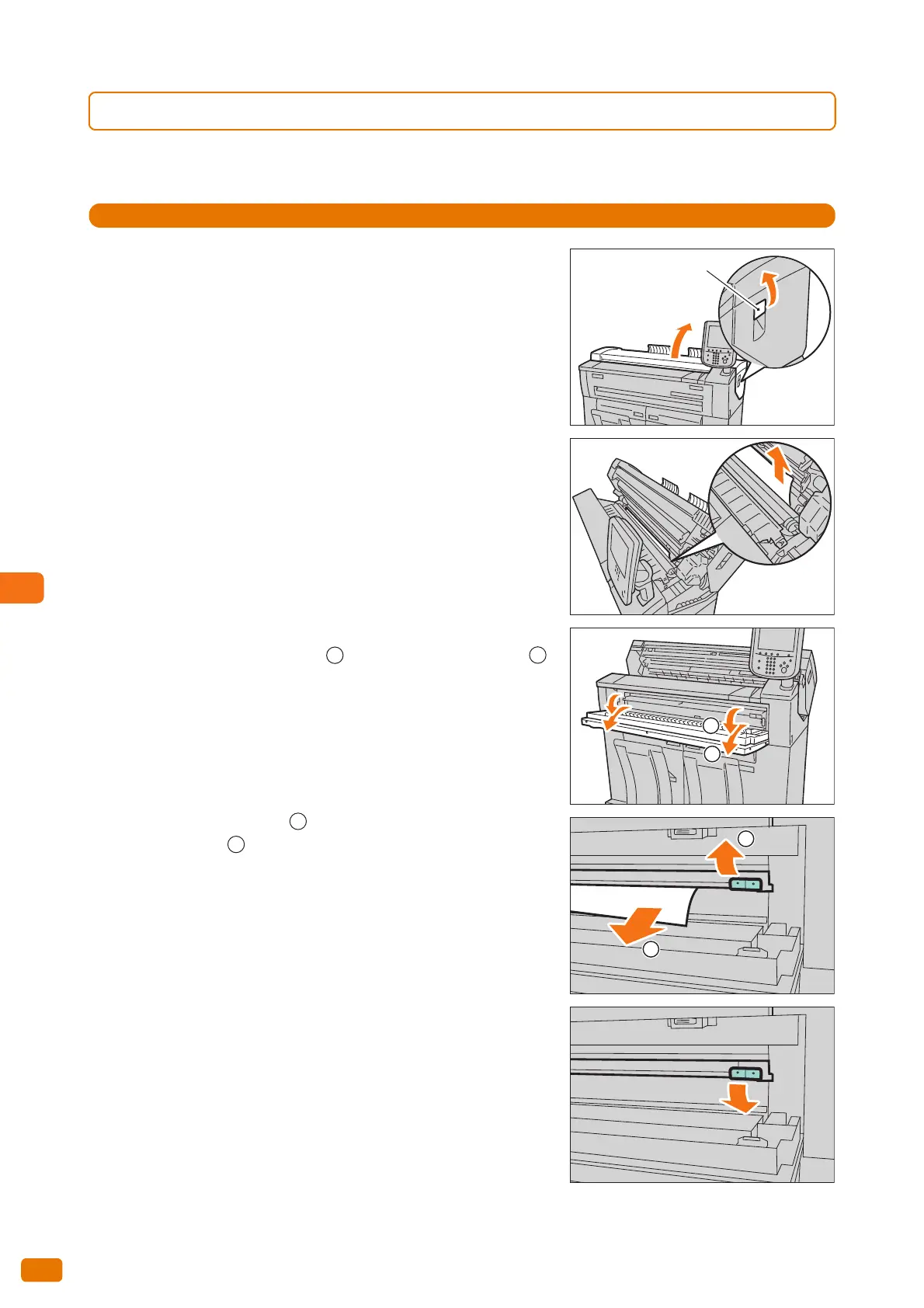

The following describes how to clear paper jams in the fusing unit.
Steps
St
1.
Lift the upper unit release lever to open the upper unit.
2.
Remove the jammed paper from the opening.
3.
If you cannot see the jammed paper from the opening, fold the
bypass (manual) feed table ( ) and the fusing unit cover ( )
toward you to open them.
4.
Pull up the green lever ( ), and remove the jammed paper from
the exit tray ( ).
5.
Return the lever back to its original position.
Upper unit release lever
2
1
1
2
2
1
1
2
