Xerox WorkCentre 5020 - Page 112

July, 2007
4-40
WorkCentre 5020
REP 6.1.1
Initial Issue
Repairs and Adjustments

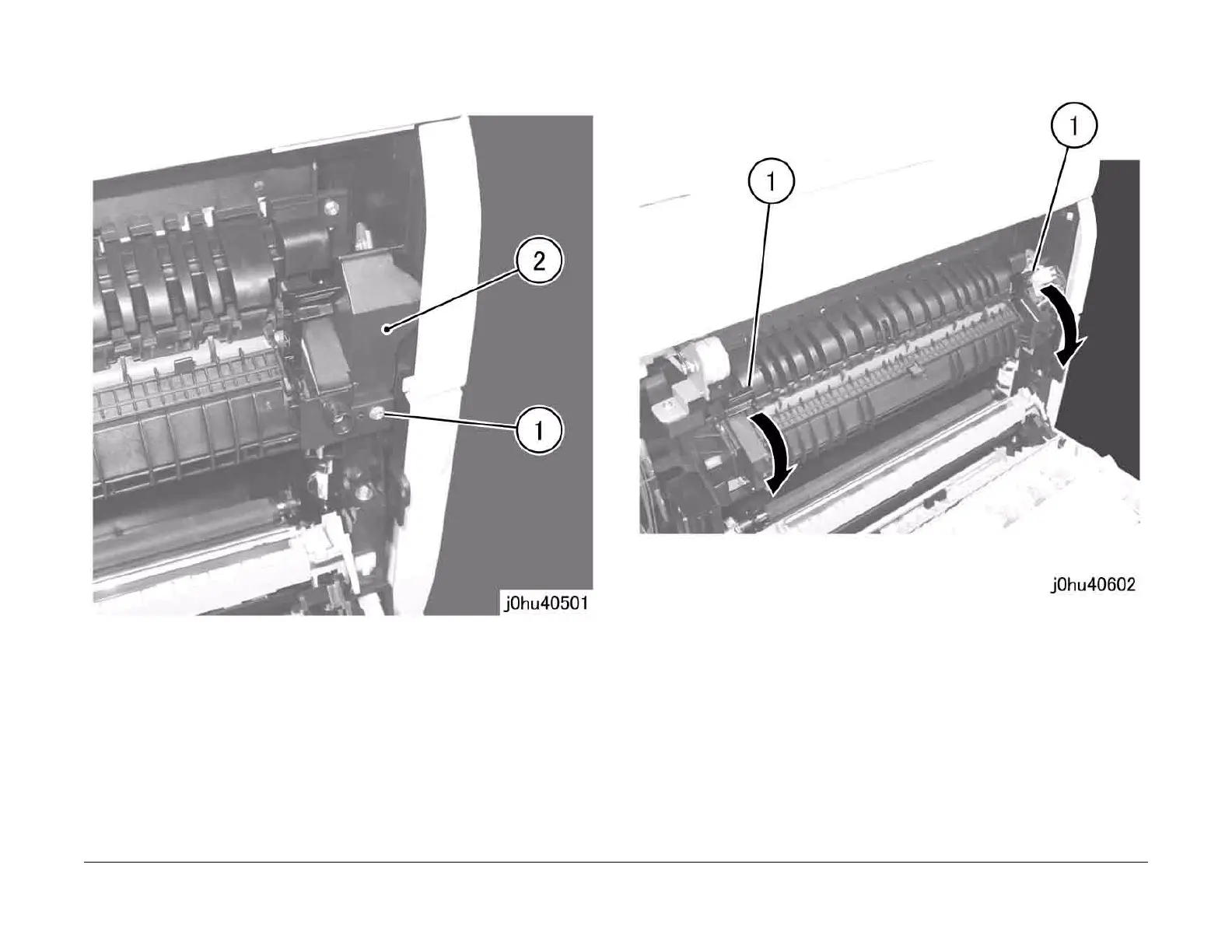

4. Remove the Connector Cover (Figure 2).
1 Remove the Tapping Screw.
2 Remove the Connector Cover.
Figure 2
5. Lower the Fuser levers (2) (Figure 3).
1 Lower the levers (2).
Figure 3
