July, 2007
4-51
WorkCentre 5020
REP 8.1.2
Repairs and Adjustments
Initial Issue

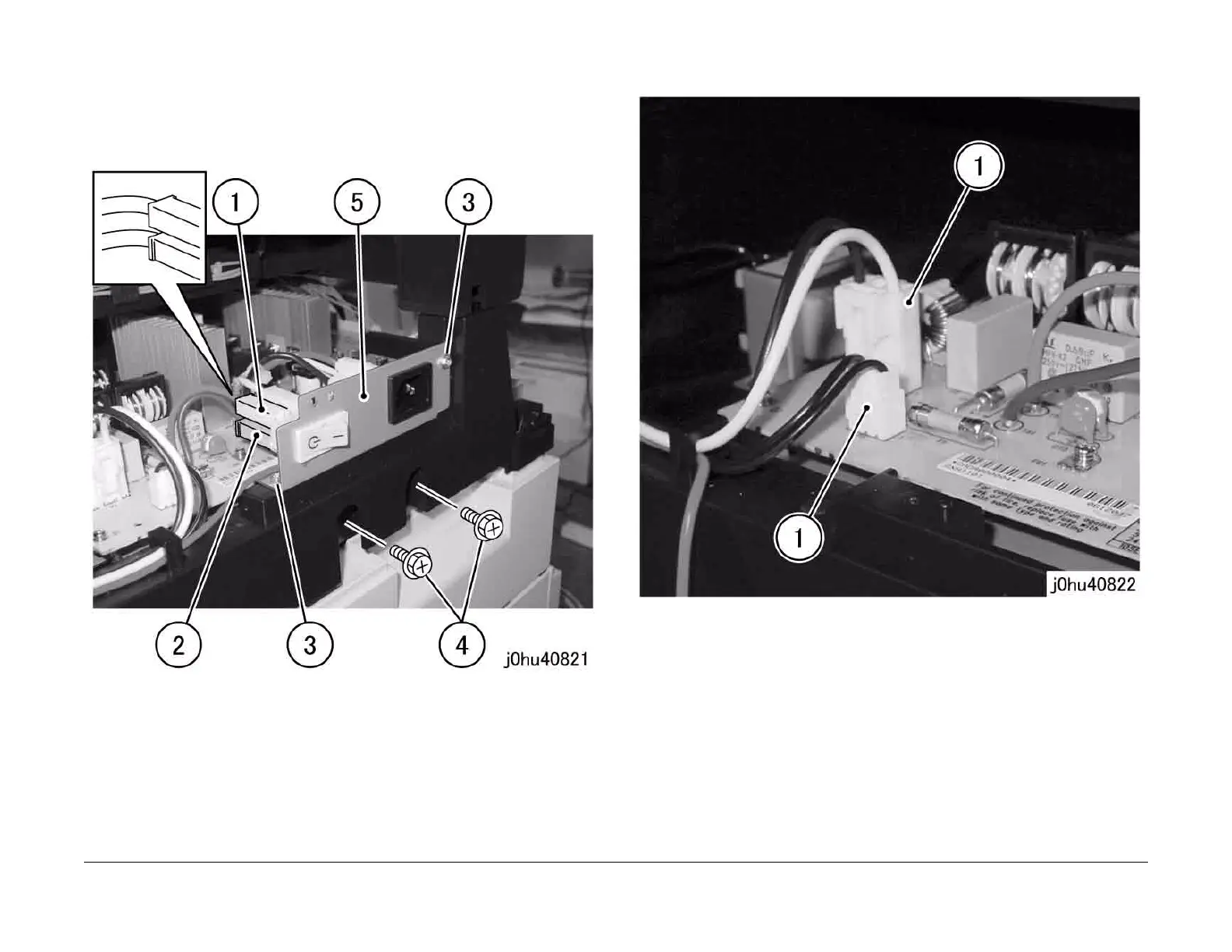

6. Move the Inlet Bracket (Figure 3).
1 Disconnect the connector (wire: blue).
2 Disconnect the connector (wire: brown).
3 Remove the Tapping Screws (2).
4 Remove the screws (2).
5 Move the Power Inlet Bracket.
Figure 3
7. Disconnect the connectors (Figure 4).
1 Disconnect the connectors (2).
Figure 4
