WorkCentre 5020
REP 8.1.2
Initial Issue
Repairs and Adjustments

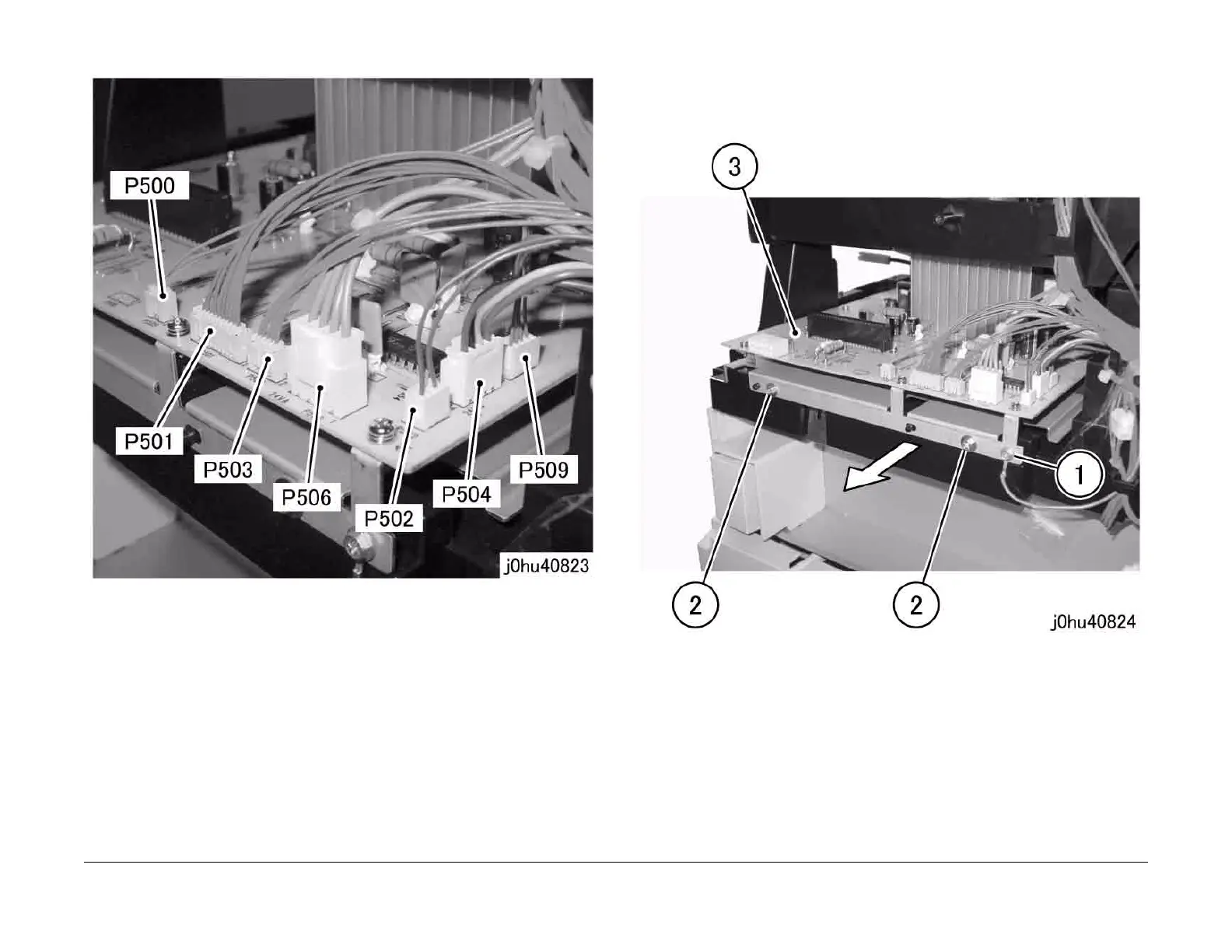

8. Disconnect the connectors (7) (Figure 5).
Figure 5
9. Remove the LVPS (Figure 6).
1 Remove the screw to remove the Ground Wire.
2 Remove the Tapping Screws (2).
3 Remove the LVPS.
Figure 6
Replacement
1. To install, do the removal steps in reverse order.
