July, 2007
4-80
WorkCentre 5020
REP 10.7.2
Initial Issue
Repairs and Adjustments

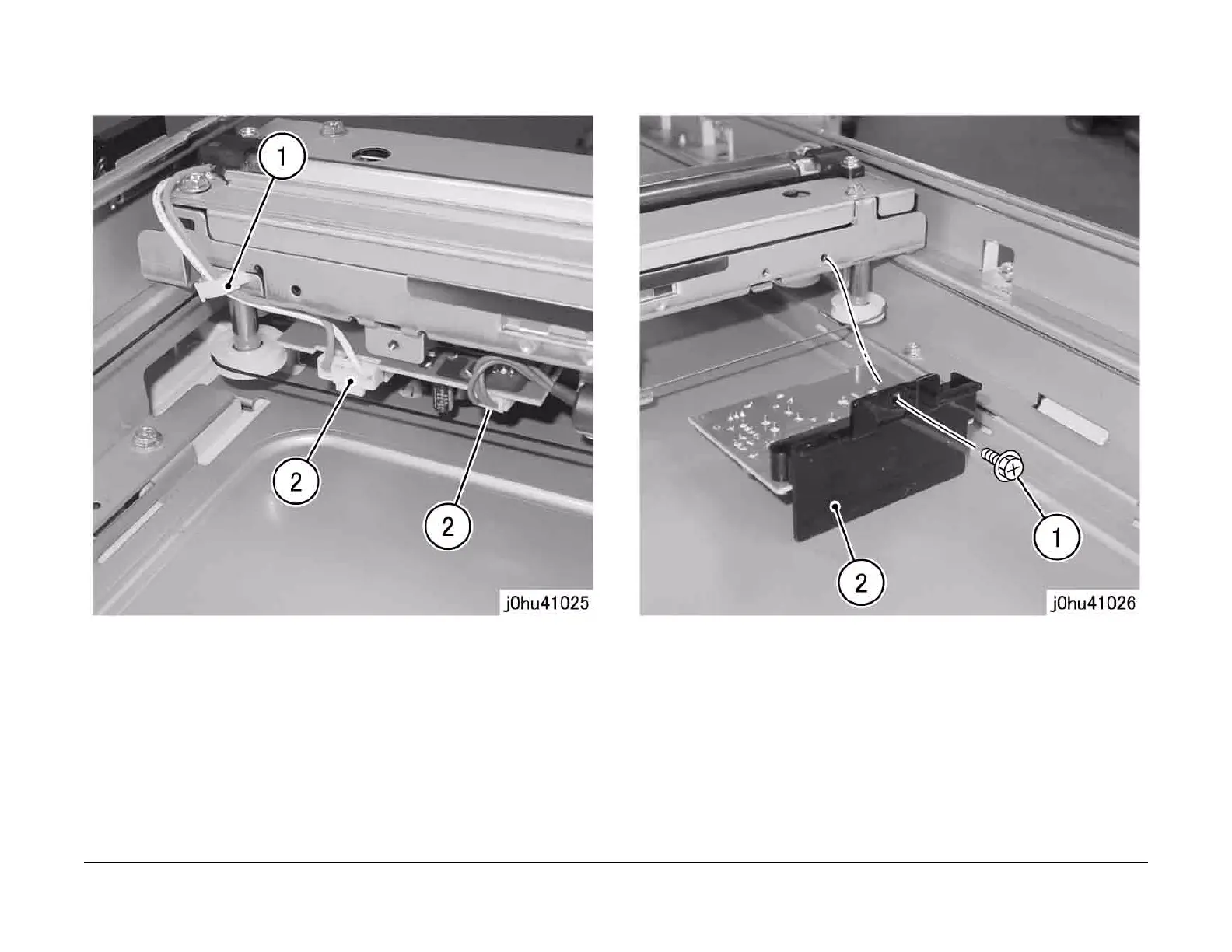

4. Disconnect the connector (Figure 2).
1 Release the wire harness from the clamp.
2 Disconnect the connectors (2).
Figure 2
5. Remove the Inverter PWB Bracket 1 (Figure 3).
1 Remove the screw.
2 Remove the Inverter PWB Bracket 1.
Figure 3
