REP 10.7.2
Repairs and Adjustments
Initial Issue
6. Remove the Inverter PWB (Figure 4).
1 Remove the Tapping Screw.
2 Remove the Inverter PWB.

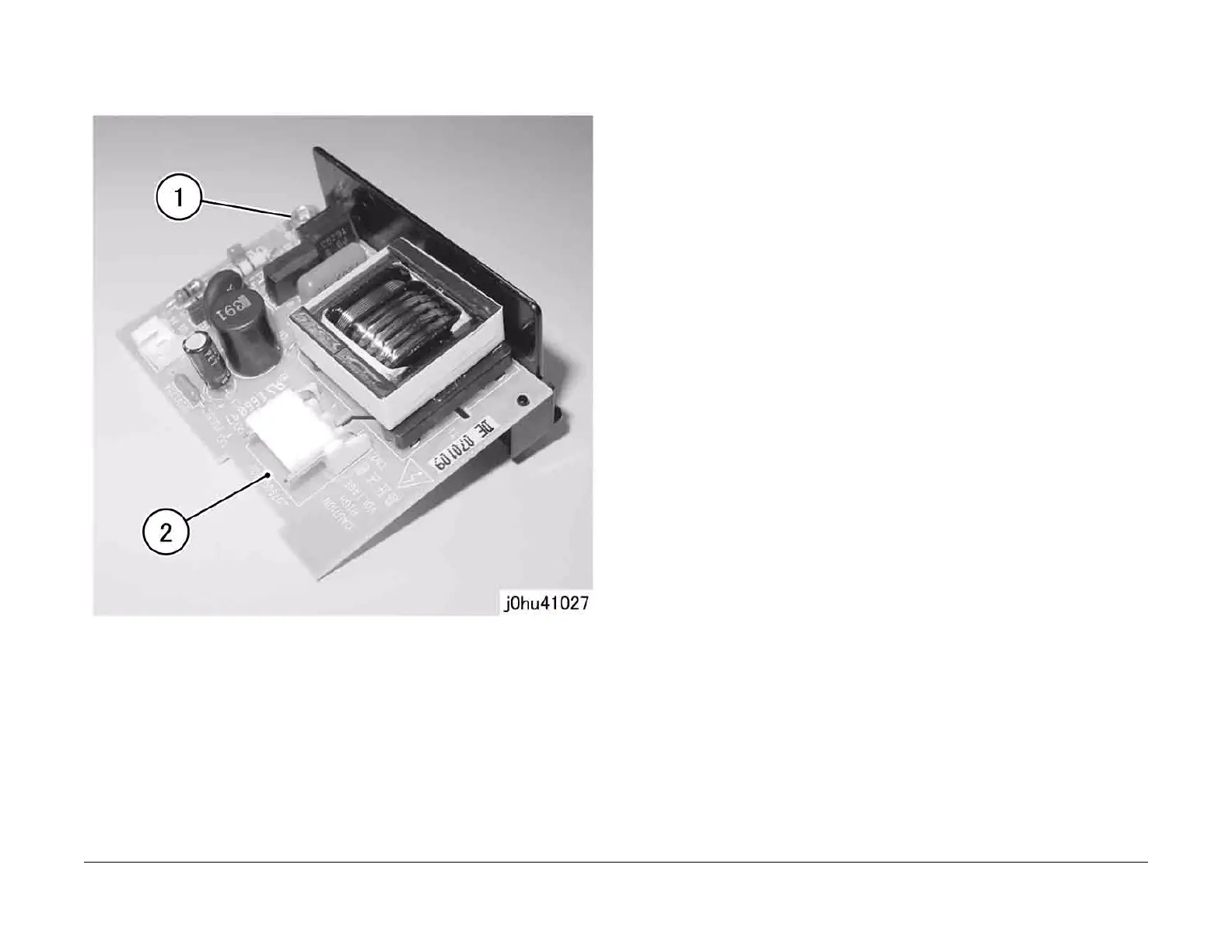

Figure 4
Replacement
1. To install, do the removal steps in reverse order.
