Xerox WorkCentre 5020 - Page 61

July, 2007
3-17
WorkCentre 5020
Image Quality
Initial Issue
Auger Marks

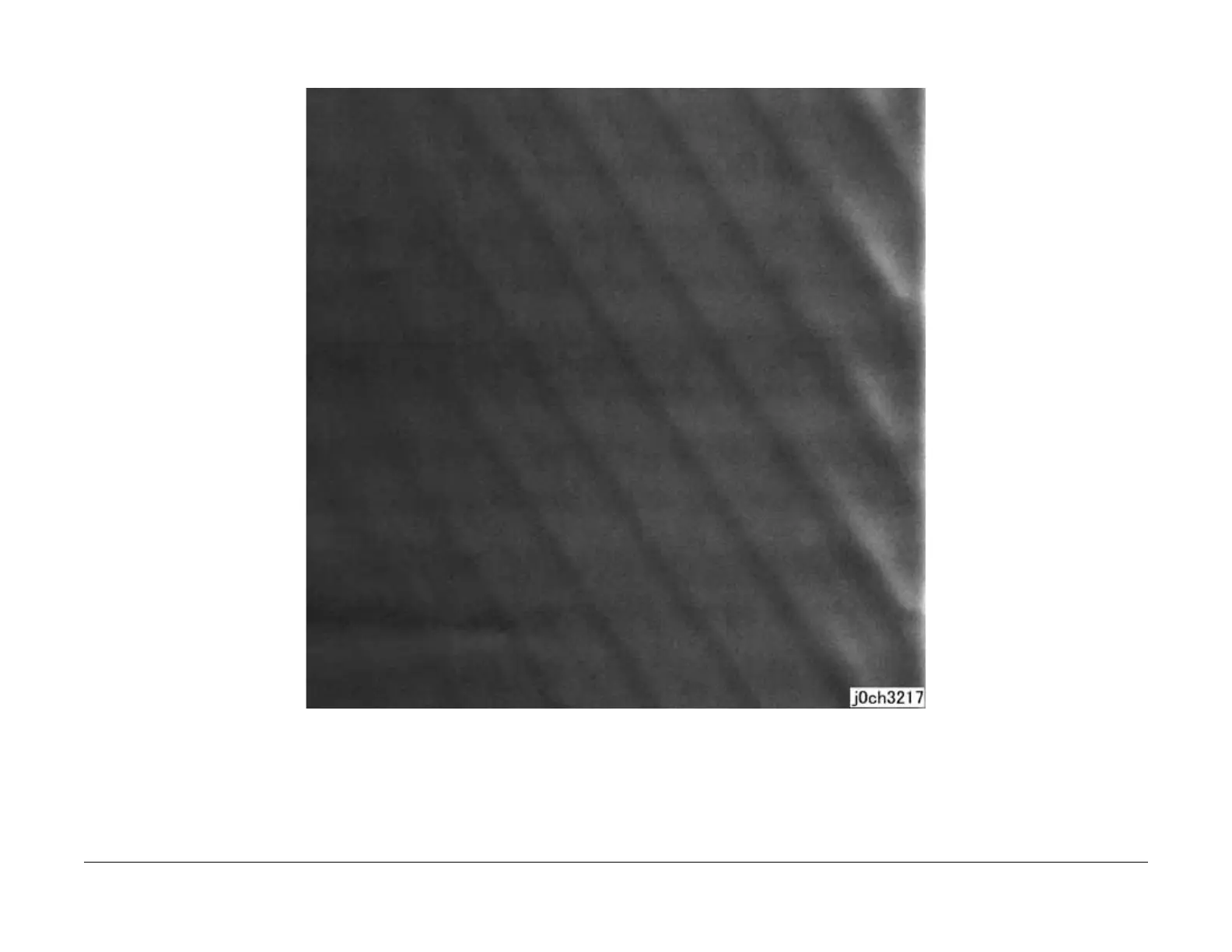

Figure 1 Auger Marks
Cause
1. Magnetic field failure in the Developer Magnetic Roll.
2. There was a drop in the level of developer material.
Action
1. Replace the Drum Cartridge (PL 4.1) (REP 4.1.1). The problem may occur immediately
after you install a new Drum Cartridge. This can be corrected by feeding a few sheets of
paper.
