February, 2008
7-39
WorkCentre 5225, 5230
Plug/Jack Locations
Wiring Data
Launch Version

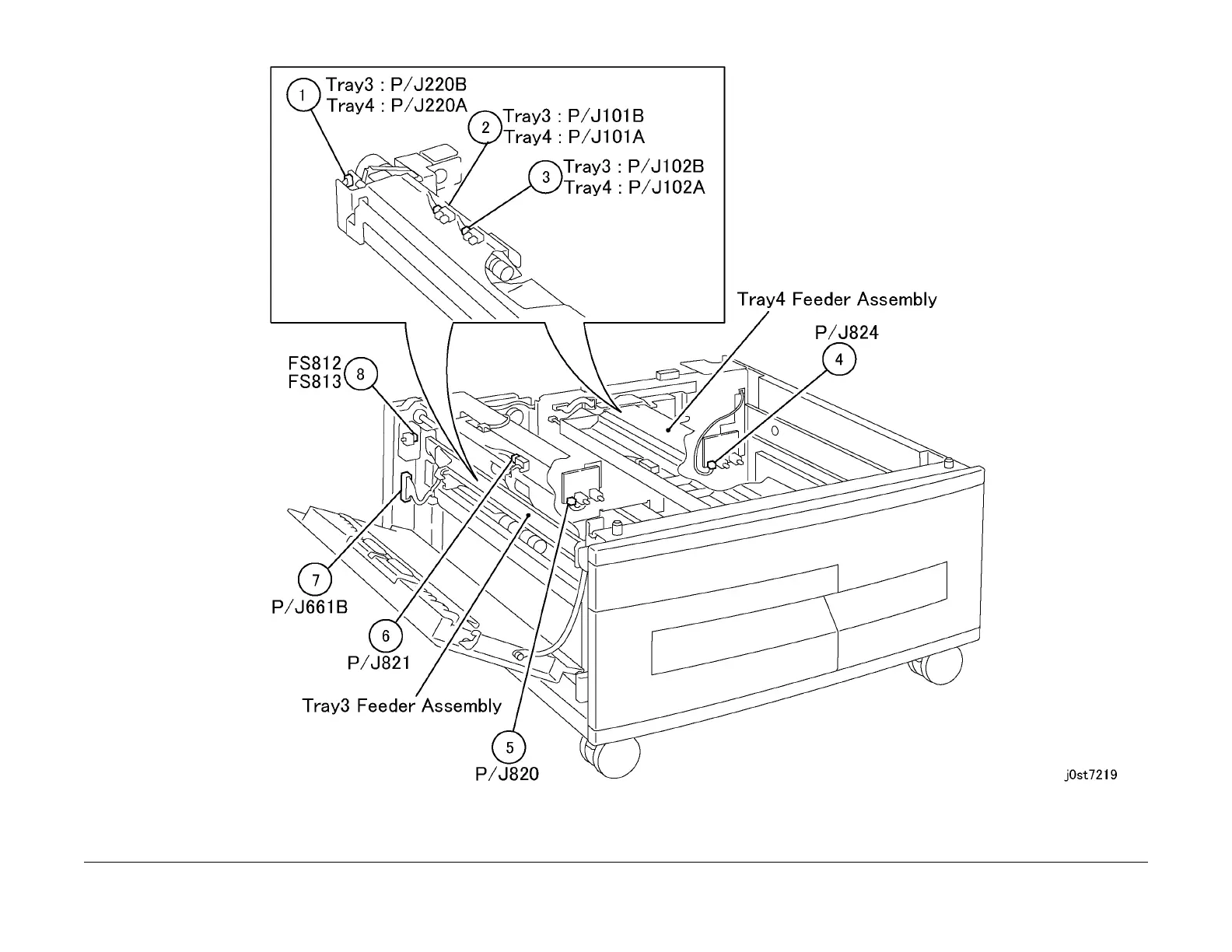

Figure 19 Tray 3/4 Feeder (TTM) (j0st7219)
