6.1 Common Settings
6-5
User
Change
during
Setting
Factory
Valid Access Levels
User
Constant
Number
Name
g
during
Opera-
tion
Setting
Range
Unit
Factory
Setting
V/f
Control
V/f with
PG
Open
Loop
Vector
Flux
Vector
H3-08
Signal level selec-
tion (terminal 14)
×
0to2 − 2
A A A A
D
Settings
Setting Function
0
0 to 10 VDC input (10-bit input)
1
−10 to 10 VDC input
(A negative voltage is a reference for reverse rotation.)
2
4 to 20 mA input
D
When the terminal is being used as a voltage input terminal (setting 0 or 1), jumper J1 must be discon-
nected on the control board. (See Figure 6.1.) The terminal’s input resistor will be destroyed if the ter-
minal is used for a voltage input with jumper J1 connected.
D
When frequency references are being input simultaneously from both the voltage terminal 13 and the
current terminal 14, the final reference value will be the sum of the two references that are input.
D
To switch the frequency reference input between the voltage terminal 13 and the current terminal 14,
set a value of 1F in any one of the multi-function inputs (H1-01 through H1-06).
The voltage terminal 13 will be used when this multi-function input is OFF and the current terminal
14 will be used when this multi-function input is ON.
D
If a 0 to
±
10 VDC input is set, H3-01 must also be set to a 0 to
±
10 VDC input.
Jumper wire
Control circuit
terminals
Main circuit
terminals
10
B2
V
T2
Power input
Braking Resistor
Motor output
CHARGE
J1
1234567821 22 23 9
11 12(G) 13 14 15 16 17 25 26 27 33 18 19 20
R
L1
S
L2
T
L3
©
¨1
¨2B1
W/T3
U
T1

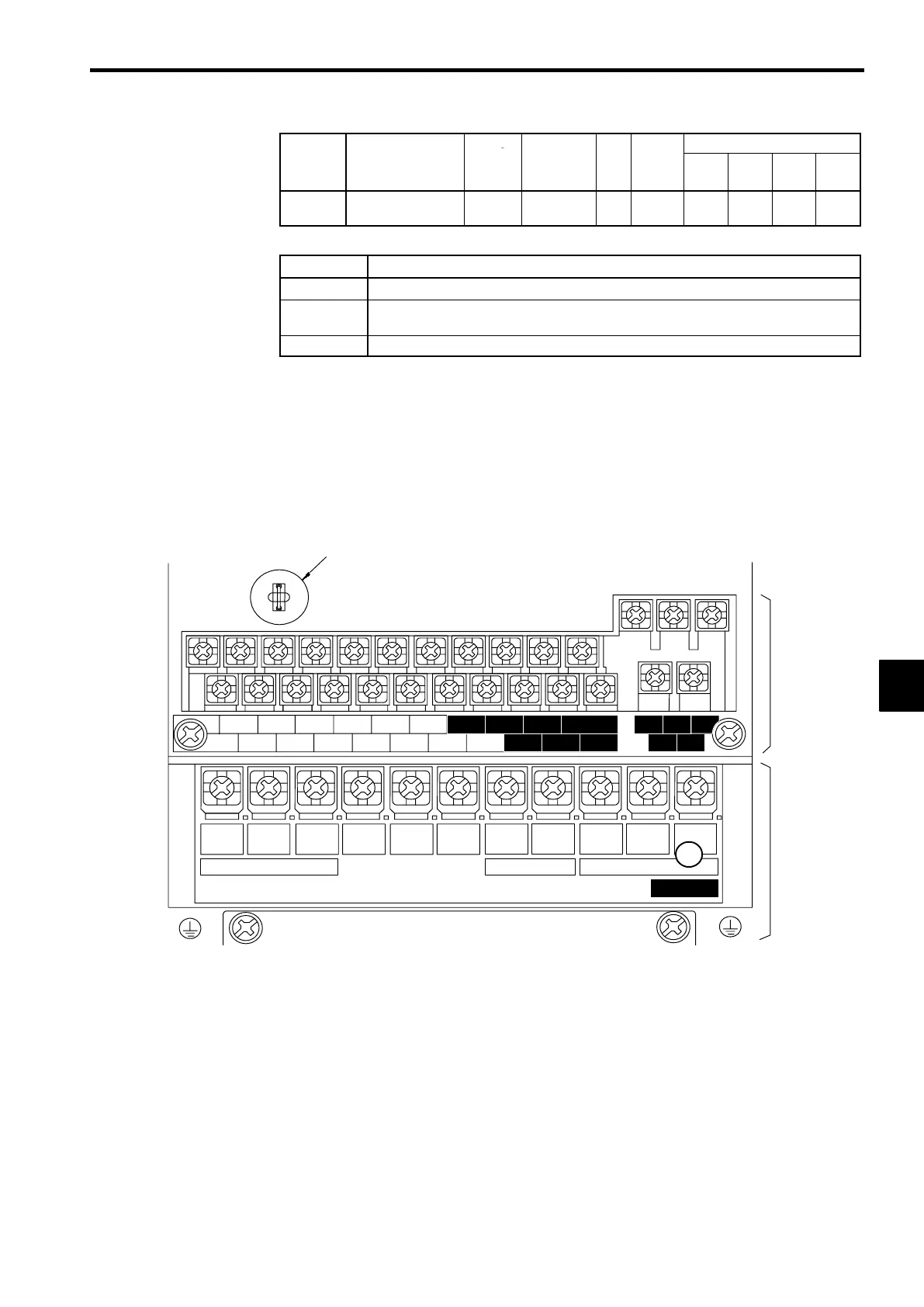

Fig 6.1 Terminal Arrangement of a 200 V Class Inverter of 0.4 kW
