7.3 Flux Vector Control
7-25

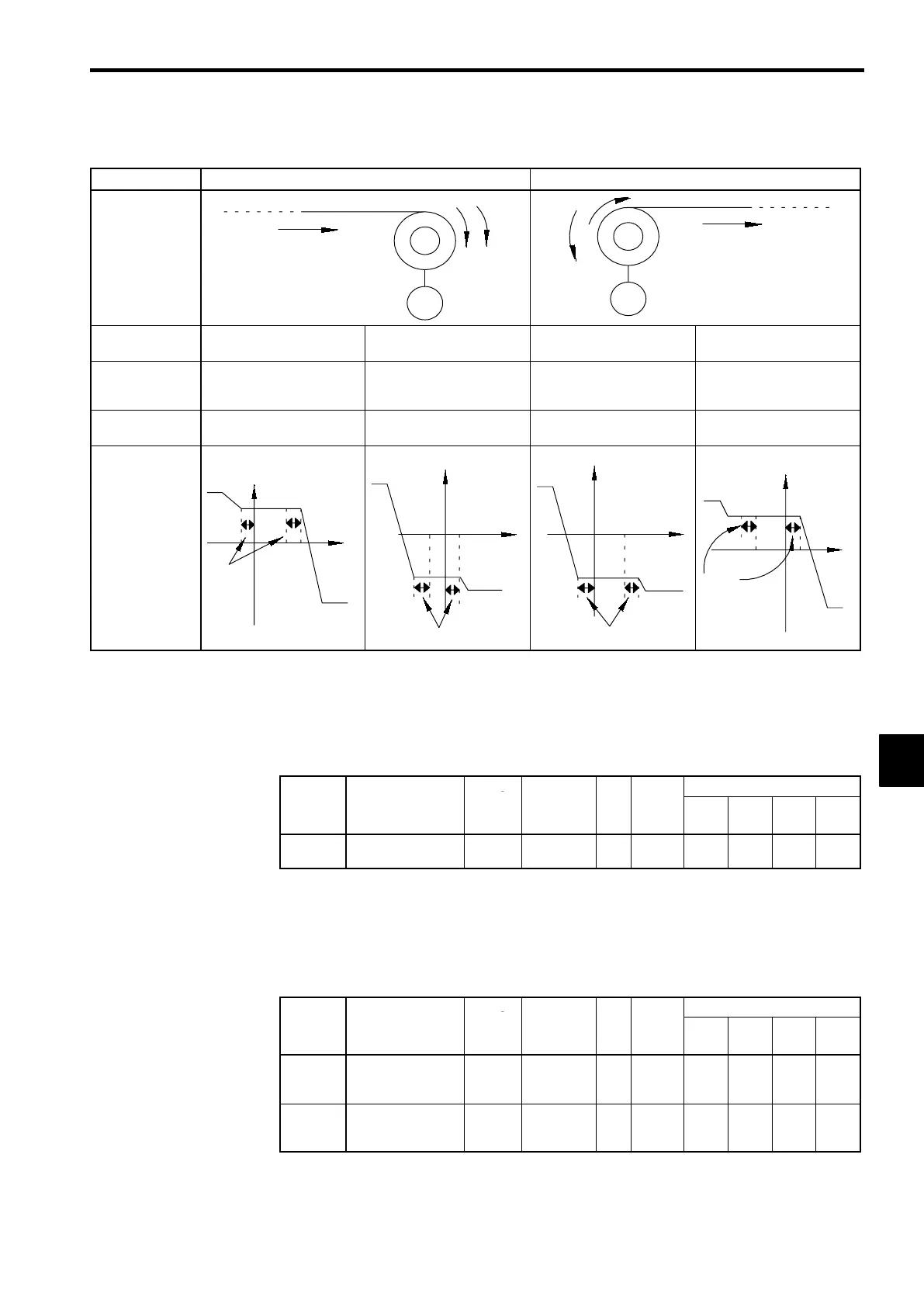

The relationships between the torque reference, speed limits, and motor speed are shown in the following
diagram.
Winding Operation Rewinding Operation
Configuration
Line direction
Motor
NT
X
M
Line direction
N
T
X
M
Normal Rotation
Direction
Forward Reverse Forward Reverse
Torque Refer-
ence Polarity
(TREF)
¨ © © ¨
Speed Limit Po-
larity (SLIM)
¨ © ¨ ©
Generated Torque
Torque
limit
TREF
d5
-
05
0
NLIM
Speed
Torque
Torque
limit
TREF
d5
-
05
0
NLIM
Speed
Torque
limit
Torque
limit
Torque
d5
-
05
0
NLIM
Speed
Torque
limit
Torque
limit
Torque
TREF
d5
-
05
0
NLIM
Speed
Torque
limit
Torque
limit
Torque
J
Torque Reference Adjustment: d5-02, H3-02 to H3-11
Primary Delay Time Constant for Torque Reference Filter: d5-02
D
The time constant of the primary filter in the torque reference section can be adjusted.
D
This constant is used to eliminate noise in the torque reference signal and adjust the responsiveness
to the host controller.
User
Change
during
Setting
Factory
Valid Access Levels
User
Constant
Number
Name
g
during
Opera-
tion
Setting
Range
Unit
Factory
Setting
V/f
Control
V/f with
PG
Open
Loop
Vector
Flux
Vector
d5-02
Torque reference
delay time
×
0 to 1000 ms 0
× × ×
A
D
Set the torque reference filter primary delay time constant in ms units.
D
Increase the time constant setting if oscillation occurs during torque control operation.
Setting the Torque Compensation: H3-05, -04, -08, -09
D
Set multi-function analog input (terminal 16) or frequency reference current input (terminal 14) to
torque compensation (setting 14). When the amount of torque loss at the load is input to one of these
terminals, it is added to the torque reference to compensate for the loss.
User
Change
during
Setting
Factory
Valid Access Levels
User
Constant
Number
Name
g
during
Opera-
tion
Setting
Range
Unit
Factory
Setting
V/f
Control
V/f with
PG
Open
Loop
Vector
Flux
Vector
H3-05
Multi-function ana-
log input (terminal
16)
×
0to1F 0
B B B B
H3-09
Multi-function ana-
log input (terminal
14)
×
1to1F 1F
A A A A
D
The functions of H3-05 and H3-09 are listed in Table 7.12.
D
Set torque compensation (setting 14) for the input terminal that isn’t set to torque reference (setting
13).
7
