2.5 Removing/Attaching the Digital Operator and Front Cover
2-9
J
Mounting the Digital Operator
1. Hook the Digital Operator at A (two locations) on the front cover in the direction of arrow 1 as shown
in the following illustration.
2.
Press the Digital Operator in the direction of arrow 2 until it snaps in place at B (two locations).
Digital
Operator
Front cover
2
1
A
B

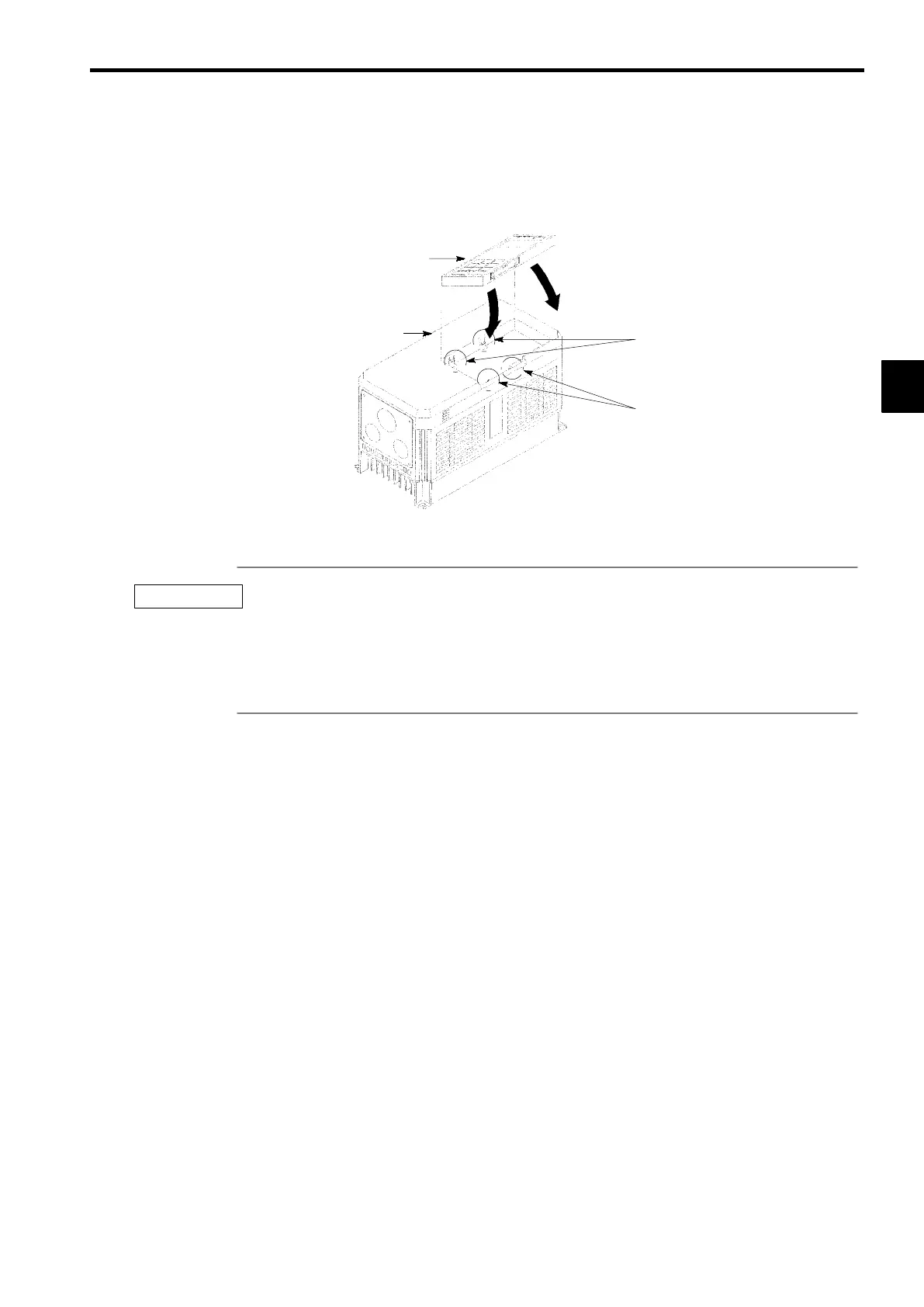

Fig 2.4 Mounting the Digital Operator
1. Do not remove or attach the Digital Operator or mount or remove the front cover using methods other than
those described above, otherwise the Inverter may break or malfunction due to imperfect contact.
2. Never attach the front cover to the Inverter with the Digital Operator attached to the front cover. Imperfect
contact can result.
Always attach the front cover to the Inverter by itself first, and then attach the Digital Operator to the front
cover.
2.5.2 Inverters of 18.5 kW or Higher
The front cover can be removed without removing the Digital Operator from the Inverter provided that
the Inverter has an output of 18.5 kW or higher.
Loosen the four screws of the front cover and move the front cover slightly upwards to remove the front
cover.
2
IMPORTANT
