1.2 Nomenclature
1-7
1.2 Nomenclature
This section provides the names of VS-616G5 components, and the components and functions of the Digital
Operator.
1.2.1 VS-616G5 Components

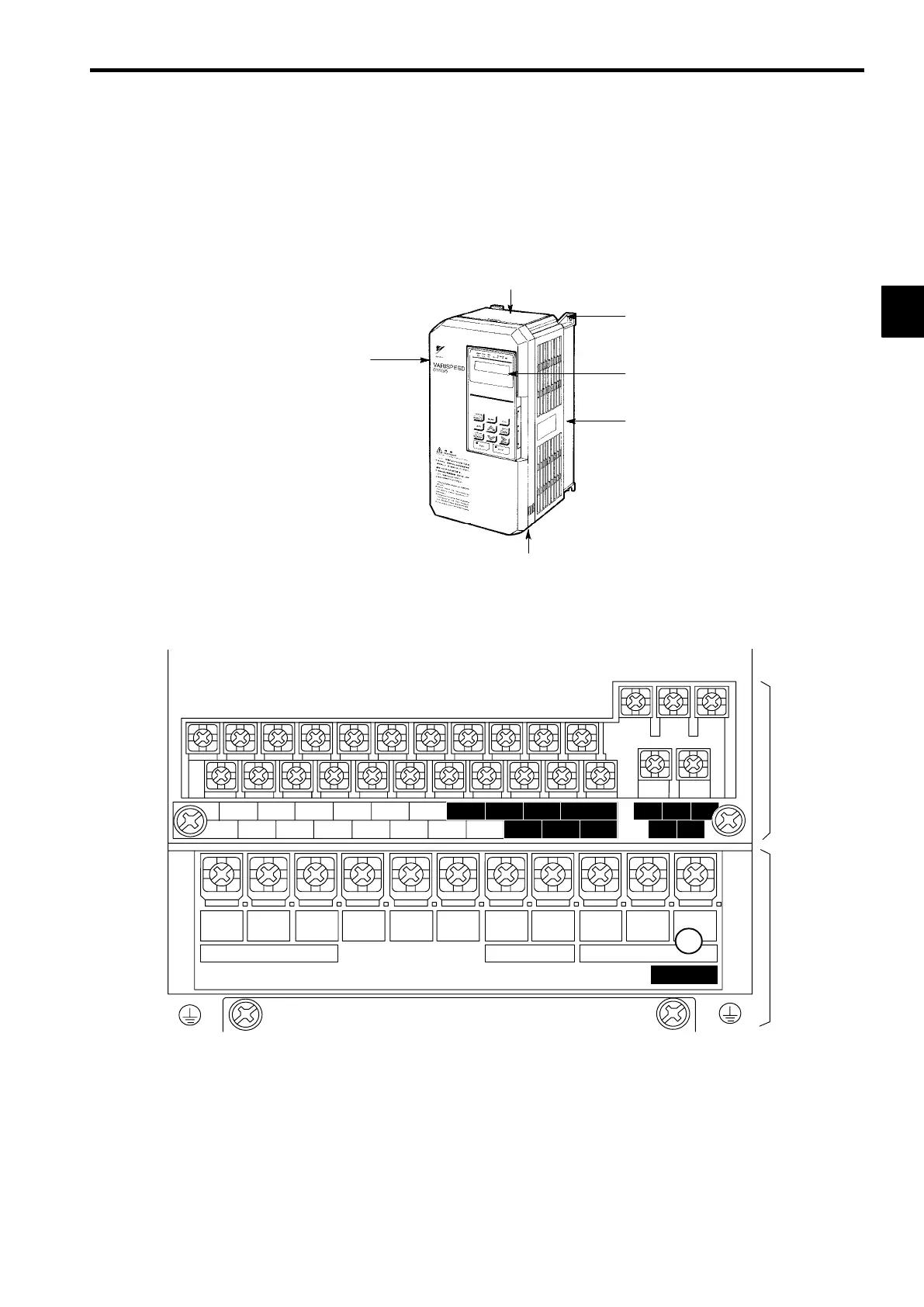

The appearance of Inverter and the names of its components are shown in Figure 1.2.
Mounting hole
Protective cover (top)
Digital Operator
JVOP-130
Front cover
Die-cast case
Protective cover (bottom)
Fig 1.2 Appearance of VS-616G5, Model CIMR-G5A20P4 (200 V, 0.4 kW)
A 200 V Class Inverter with 0.4 kW Output is shown below with the front cover removed.
Control circuit
terminals
Main circuit
terminals
10
B2
V
T2
Power input
Braking Resistor
Motor output
CHARGE
1 234 56 7821 22 23 9
11 12(G) 13 14 15 16 17 25 26 27 33 18 19 20
R
L1
S
L2
T
L3
©
¨1
¨2B1
W/T3
U
T1
Fig 1.3 Terminal Arrangement
1
