YASKAWA CIMR-G5A Series User Manual

3.7 Installing and Wiring PG Speed Control Cards
3-29
J PG-B2 (For Flux Vector Control Mode Only)
PG
Power supply +12 V
Power supply 0 V
B-phase pulse monitor output
A-phase pulse monitor output
A-phase pulse output (+)
A-phase pulse output (−)
B-phase pulse output (+)
B-phase pulse output (−)
Three-phase 200 VAC
(400 VAC)
VS-616G5
4CN
12
R
S
T
U
V
W
IM
PG-B2
4CN
TA1
E
1
2
3
4
5
6
TA2
1
2
3
4
D Shielded twisted-pair wires must be used for signal lines.
D Do not use the pulse generator’s power supply for anything other than the
pulse generator (encoder). Using it for another purpose can cause malfunctions
due to noise.
D The length of the pulse generator’s wiring must not be more than 100 meters.
D The direction of rotation of the PC can be set in user constant F1-05. The
factory preset if for forward rotation, A-phase advancement.
TA3 (E)

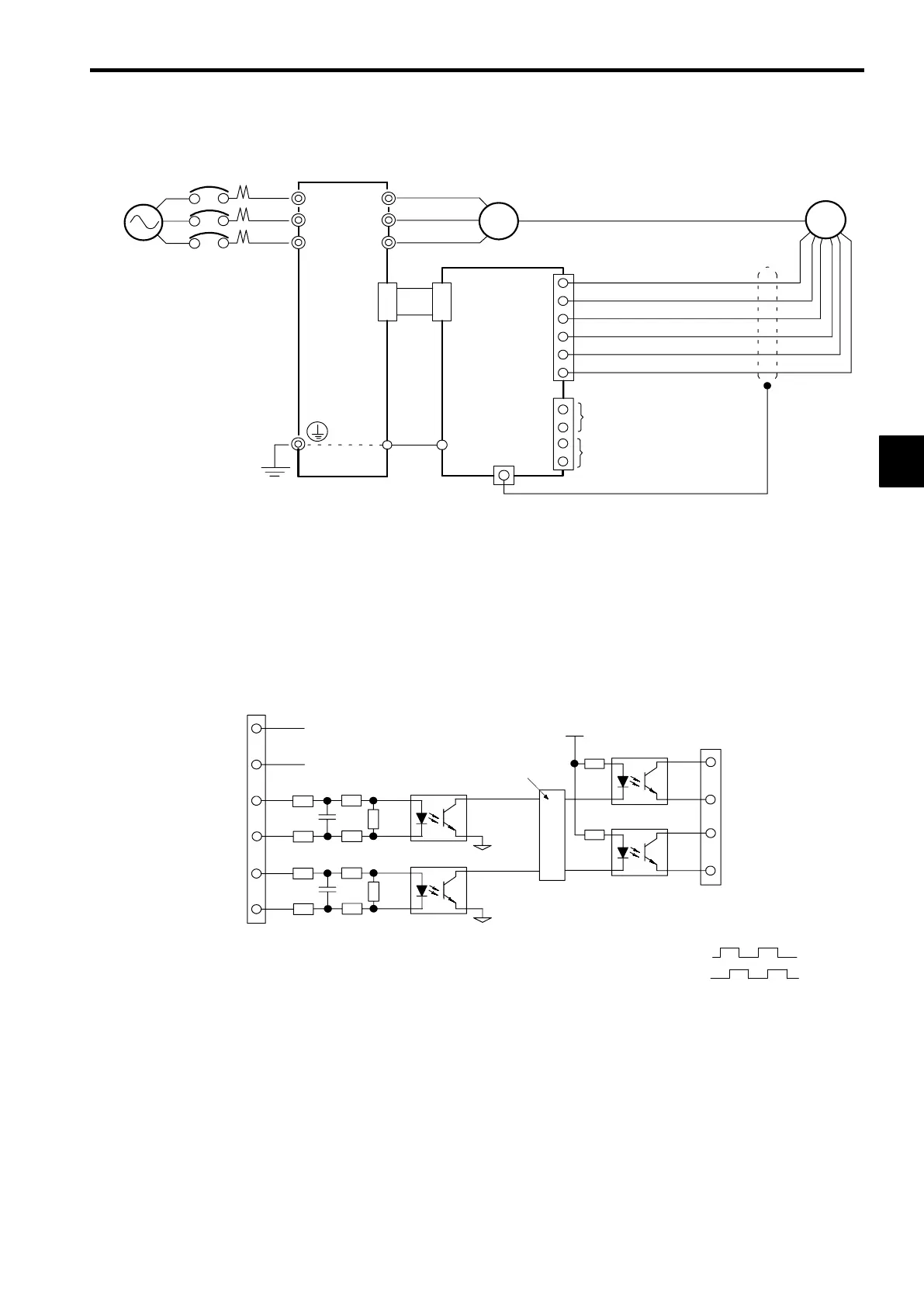

Fig 3.26 PG-B2 Wiring
I/O Circuit Configuration
TA1
PG power
supply +12 V
A-phase
pulse input
1
2
3
4
5
6
+12 V
0V
B-phase
pulse input
150
180
150
180
470
A-phase
pulses
B-phase
pulses
150
180
150 180
470
Division rate circuit
1
2
3
4
A-phase pulse monitor
output
B-phase pulse monitor
output
A-phase
pulses
B-phase
pulses
D When connecting to a voltage-output-type PG (encoder), select a PG
that has an output impedance with a current of at least 12 mA to the
input circuit photocoupler (diode).
D The pulse monitor dividing ratio can be changed using constant
F1-06.
TA2
Fig 3.27 I/O Circuit Configuration of the PG-B2
3
