2.4 Installation Orientation and Space
2-7
2.4 Installation Orientation and Space
Install the Inverter on a vertical surface so as not to reduce the cooling effect. When installing the Inverter, al-
ways provide the following installation space to allow normal heat dissipation.
(a) Horizontal Space
50 mm min.
30 mm min. 30 mm min.
50 mm min.
(b) Vertical Space
120 mm min.
120 mm min.
Air
Air

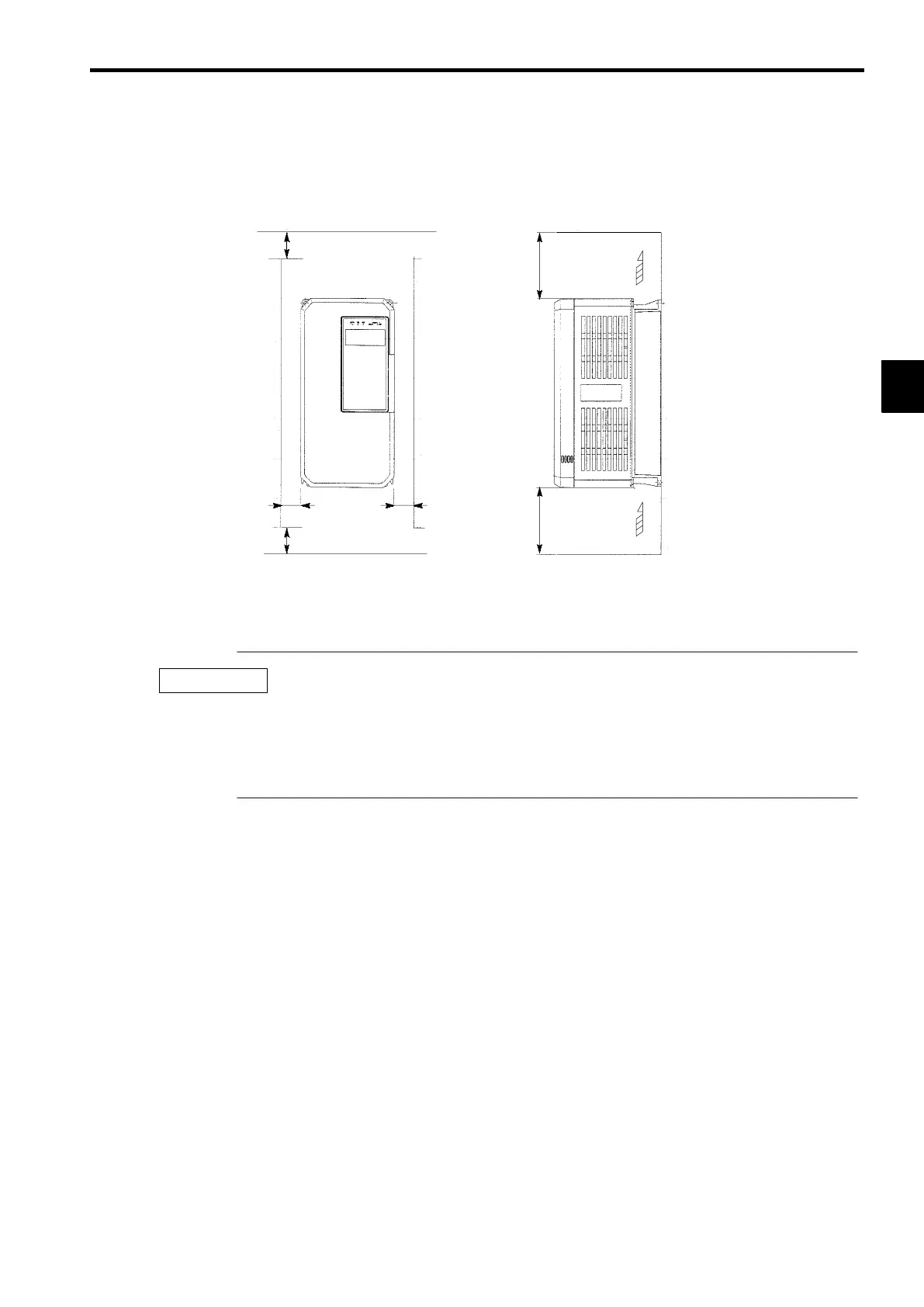

Fig 2.1 VS-616G5 Installation Orientation and Space
S The same space is required horizontally and vertically for both open chassis (IP00) and enclosed
wall-mounted (IP20, NEMA 1) Inverters.
S Always remove the protection covers before installing a 200 or 400 V Class Inverter with an output
of 15 kW or less in a panel.
S Always provide enough space for suspension eye bolts and the main circuit lines when installing a
200 or 400 V Class Inverter with an output of 30 kW or more in a panel.
2
IMPORTANT
