YASKAWA CIMR-G5A Series User Manual

Setting User Constants
4.2.3 User Constant Access Levels
4-8
A
EXAMPLE
"

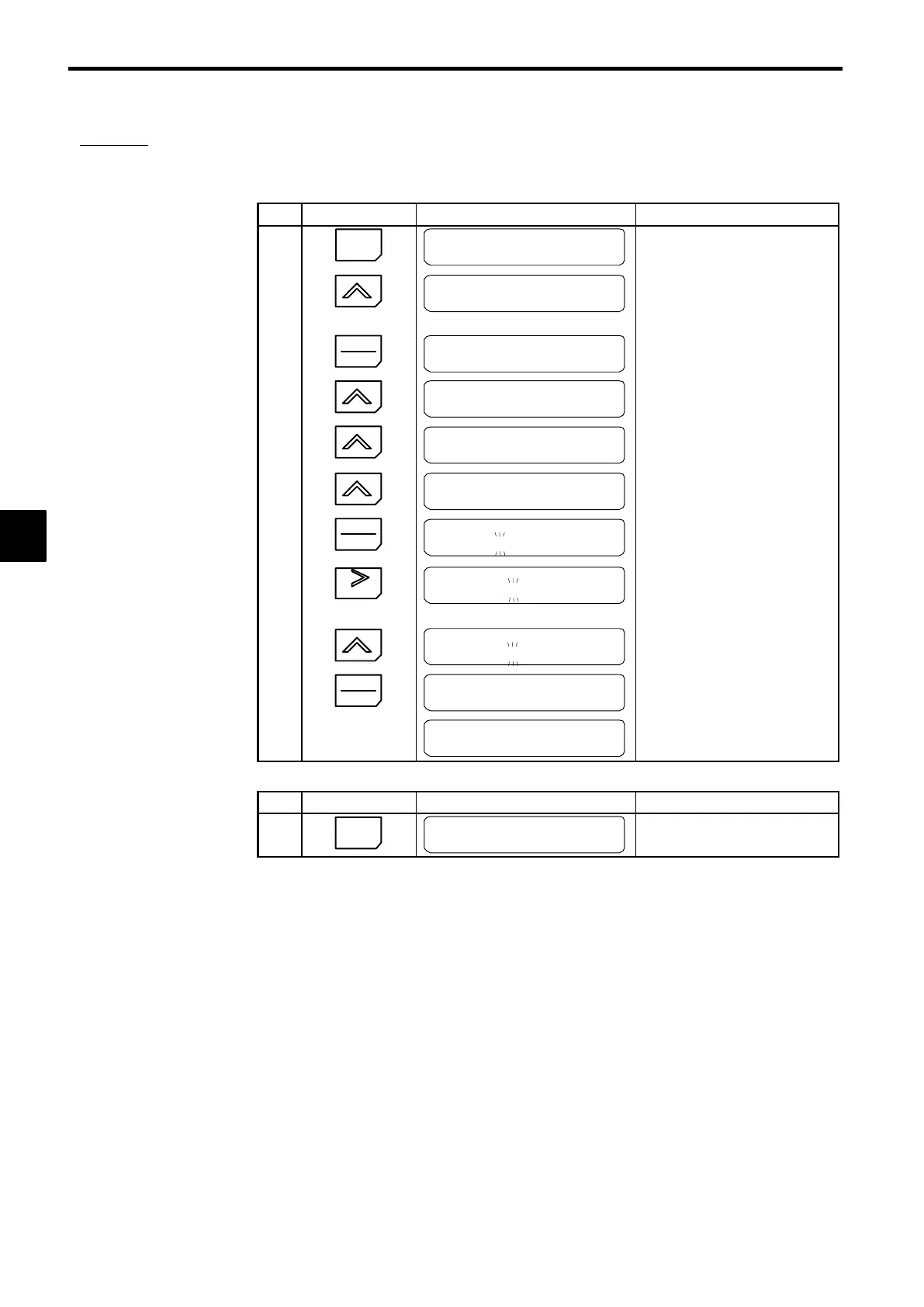

Setting a User Constant in the Quick-start Access Level
The user constant level will be displayed when the DATA/ENTER Key is pressed at the programming
mode display.
Use the following display to set the acceleration time to 20.0 s.
Step Key Sequence Digital Operator Display Remarks
1
MENU
G5: Main Menu :
Operation
2
Press twice.
G5: Main Menu :
Programming
3
DATA
ENTER
Reference source
Terminals
Changed to constant setting level.
4
Run Source
Terminals
5
Stopping Method
Ramp to Stop
6
Accel Time 1
C1−01 = 10.0 Sec
7
DATA
ENTER
Accel Time 1
0010.0 Sec
Selects the user constant so that the
leading 0 blinks. The digit that is
blinking can be changed.
8
RESET
Press twice.
Accel Time 1
0010.0 Sec
Blinking digit moves 2 places to the
right.
9
Accel Time 1
0020.0 Sec
Changes 1 to 2.
10
DATA
ENTER
Entry Accepted
Accel Time 1
C1−01 = 20.0 Sec
After approx. 3 seconds, the Operator
display is as shown on the left.
The acceleration time has been set to 20.0 seconds.
Step Key Sequence Digital Operator Display Remarks
11
ESC
G5: Main Menu :
Programming
Returns to programming mode display.
