6.3.2 V/f Pattern Selection: E1-03
6-24

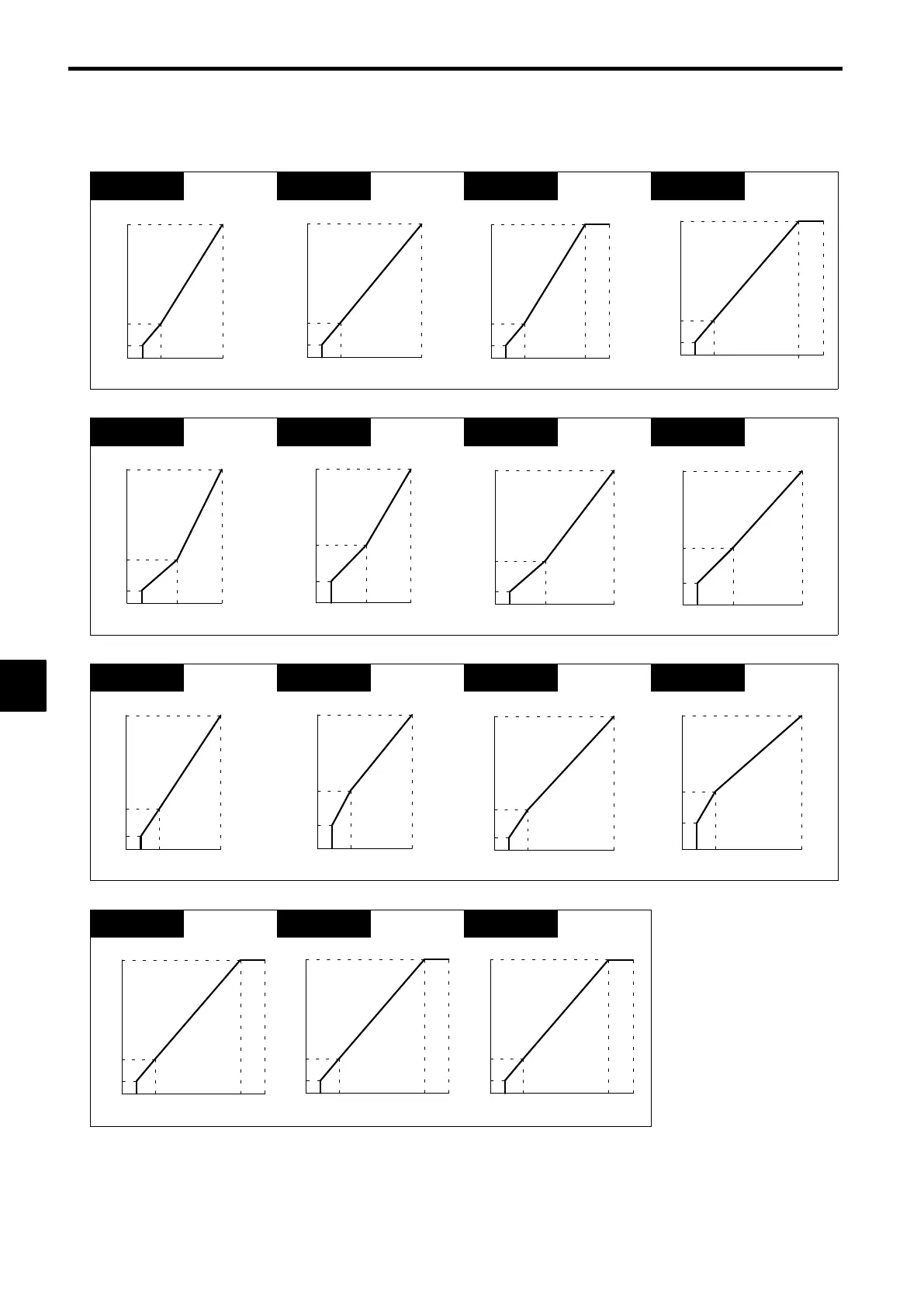

V/f Patterns: 2.2 to 45 kW
D
Fixed Torque Characteristics (Settings 0 to 3)
Setting 0 50 Hz Setting 1 60 Hz Setting 2 60 Hz Setting 3 72 Hz
(V)
200
14
7
0 1.3 2.5 50 (Hz)
(V)
200
14
7
0 1.5 3 60 (Hz)
(V)
200
14
7
0 1.5 3
60 (Hz)
50
(V)
200
14
7
0 1.5 3 60
(Hz)
72
D
Variable Torque Characteristics (Settings 4 to 7)
Setting 4 50 Hz Setting 5 50 Hz Setting 6 60 Hz Setting 7 60 Hz
(V)
200
35
6
0 1.3 25 50 (Hz)
(V)
200
50
7
0 1.3 25 50 (Hz)
(V)
200
35
6
0 1.5 30 60 (Hz)
(V)
200
50
7
0 1.5 30 60 (Hz)
D
High Starting Torque Characteristics (Settings 8 to b)
Setting 8 50 Hz Setting 9 50 Hz Setting A 60 Hz Setting B 60 Hz
(V)
200
18
9
0 1.3 2.5 50 (Hz)
(V)
200
23
11
0 1.3 2.5 50 (Hz)
(V)
200
18
9
0 1.5 3 60 (Hz)
(V)
200
23
13
0 1.5 3 60 (Hz)
D
High-speed Operation (Settings C to E)
Setting C 90 Hz Setting D 120 Hz Setting E 180 Hz
(V)
200
14
7
0 1.5 3 60
(Hz)
90
(V)
200
14
7
0 1.5 3 60
(Hz)
120
14
7
0 1.5 3 60
(Hz)
180
(V)
200
The voltages above are for 200 V class Inverters. Double the voltages for 400 V class Inverters.
