 LOOP: Number of Executions
Note: Refer to the following section for details on the number of executions.
13.3.5 Settings in the Program Table on page 13-13
 NEXT: PGMSTEP to be Executed Next
Note: Refer to the following section for details on the program step to execute next.
13.3.5 Settings in the Program Table on page 13-13

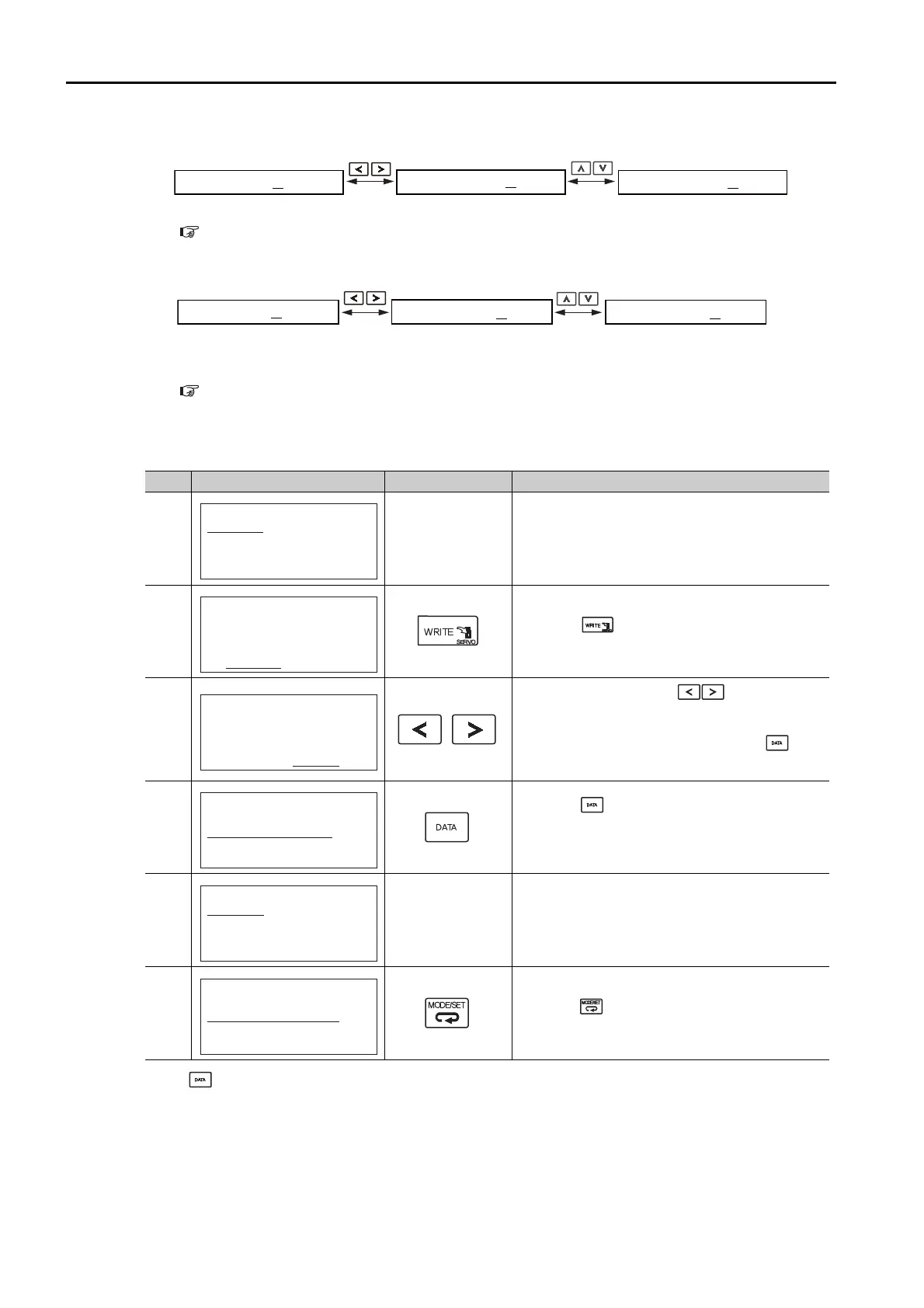

 Saving Program Tables
The operating procedure for saving program tables is shown below.
* If the key is pressed in an operation prohibited state, “Error.” is displayed for approximately 2 seconds and then the
display returns to the program table editing screen. In this case, make the setting again by referring to
 Preparation on
page 17-11.
Step Display after Operation Keys Operation
1 – Display the program table editing screen.
2
Press the key to view the program table
save operation screen.
3
Move the cursor with the keys to select
“STORE”.
Note: Selecting “CANCEL” and pressing the key
will return the display to the program table editing
screen.
4
Press the key to start saving the program
table to flash memory.*
Do not turn off the control power supply until
saving has been completed normally.
5–
When saving to flash memory has been com-
pleted normally, the display returns to the pro-
gram table editing screen.
6
Press the key to return to the Utility Function
Mode main menu.
