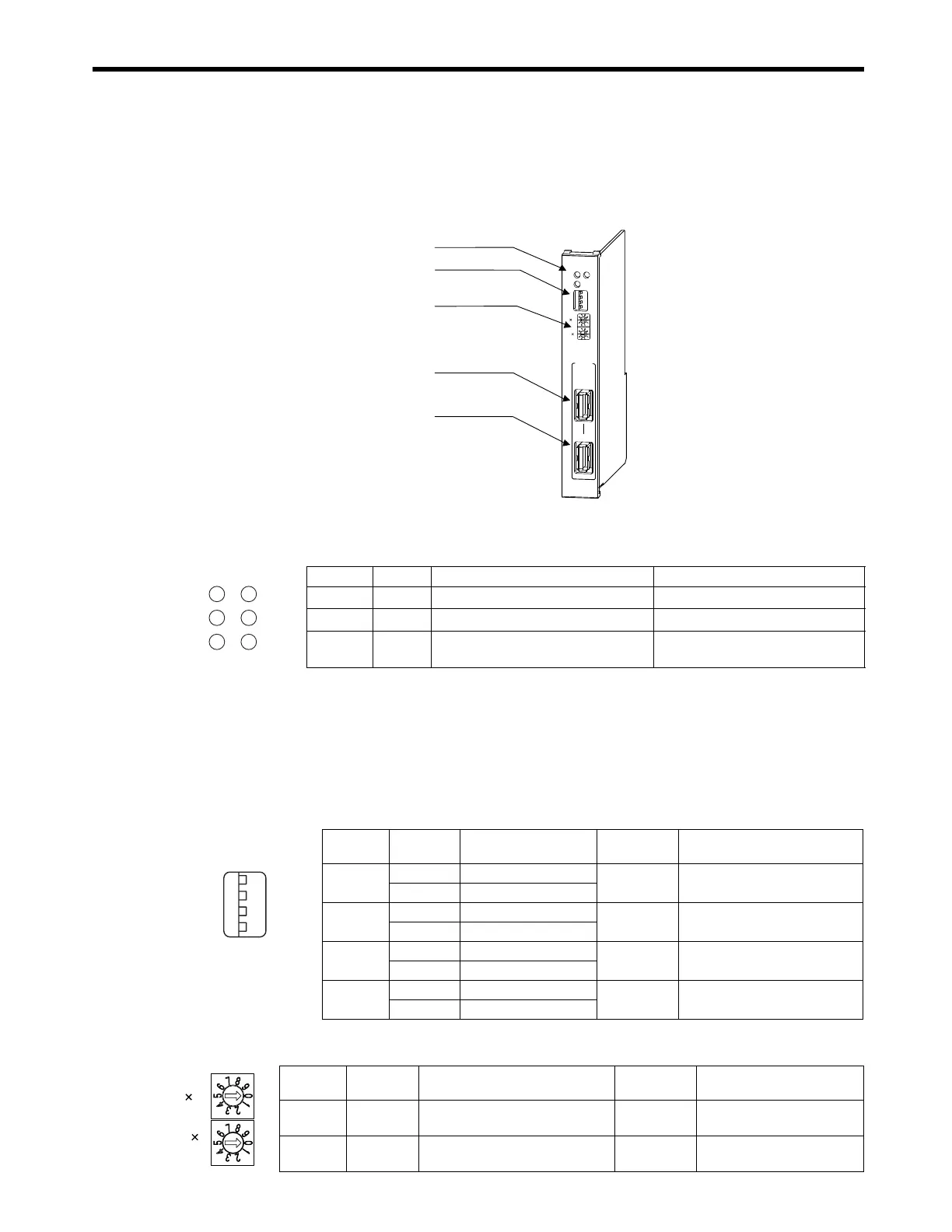

( 2 ) External Appearance, LED Indicators, and Switch Settings
[ a ] External Appearance
The following figure shows the SVB-01 Module external appearance.
[ b ] LED Indicators
The following table shows the SVB-01 Module status when each LED indicator is lit or unlit.
[ c ] Switch Settings
Both the DIP switch and rotary switches set the operating conditions for the SVB-01 Module.
Use the default settings when using the Module in Master Mode.
îš„
DIP Switch
SIZE and SPD are valid only in Slave Mode. They will be ignored in Master Mode.
îš„
Rotary Switches
SVB-01
TX
ERRRUN
SPD
SIZE
M/S
ON
OFF
10
1
M-I/II
CN1
CN2
LED indicators
Rotary switches
(Station address
setting)
DIP switch
MECHATROLINK
connector
MECHATROLINK
connector
Indicator Color Status When Lit Status When Unlit
RUN Green Normal operation Error occurrence
ERR Red Failure (lights/blinks) Normal operation
TX Green
MECHATROLINK transmission in
progress
No data being transmitted
RDY
ERR
TRX
RUN
ALM
BAT
Name Status Operating Mode
Default
Setting
Details
−
ON Reserved.
OFF Keep turned OFF.
OFF Reserved.
M/S
ON Slave Mode
OFF Select Master or Slave Mode.
OFF Master Mode
SIZE
ON 17 bytes
OFF Select the number of send bytes.
OFF 32 bytes
SPD
ON 4 Mbps
OFF Select the baud rate.
OFF 10 Mbps
Name Status Operating Mode
Default
Setting
Details
×
10
0 to 9
Local station address when in
Slave Mode (10s digit)
0
Sets the 10s digit of the local
slave address.
×
1
0 to 9
Local station address when in
Slave Mode (1s digit)
1
Sets the 1s digit of the local
slave address.
SPD
SIZE
M/S
ON
OFF
10
1
