YASKAWA JEPMC-MP2300-Y Series User Manual

3
Module Specifications
3.4.5
AI-01 Module
3-48
[ a ] LED Indicators
The following table shows the DO-01 status when the each indicator lamp is lit or unlit.
( 3 ) Hardware Specifications
The following table shows the DO-01 Module hardware specifications.
3.4.5 AI-01 Module
( 1 ) Outline of Functions
The AI-01 Module is a analog input module with 8 channels. The following three analog input range
can be selected:
−
10 to +10V voltage mode, 0 to +10V voltage mode, 0 to 20 mA current mode
Up to two AI-01 Modules can be mounted in MP2300 optional slots.

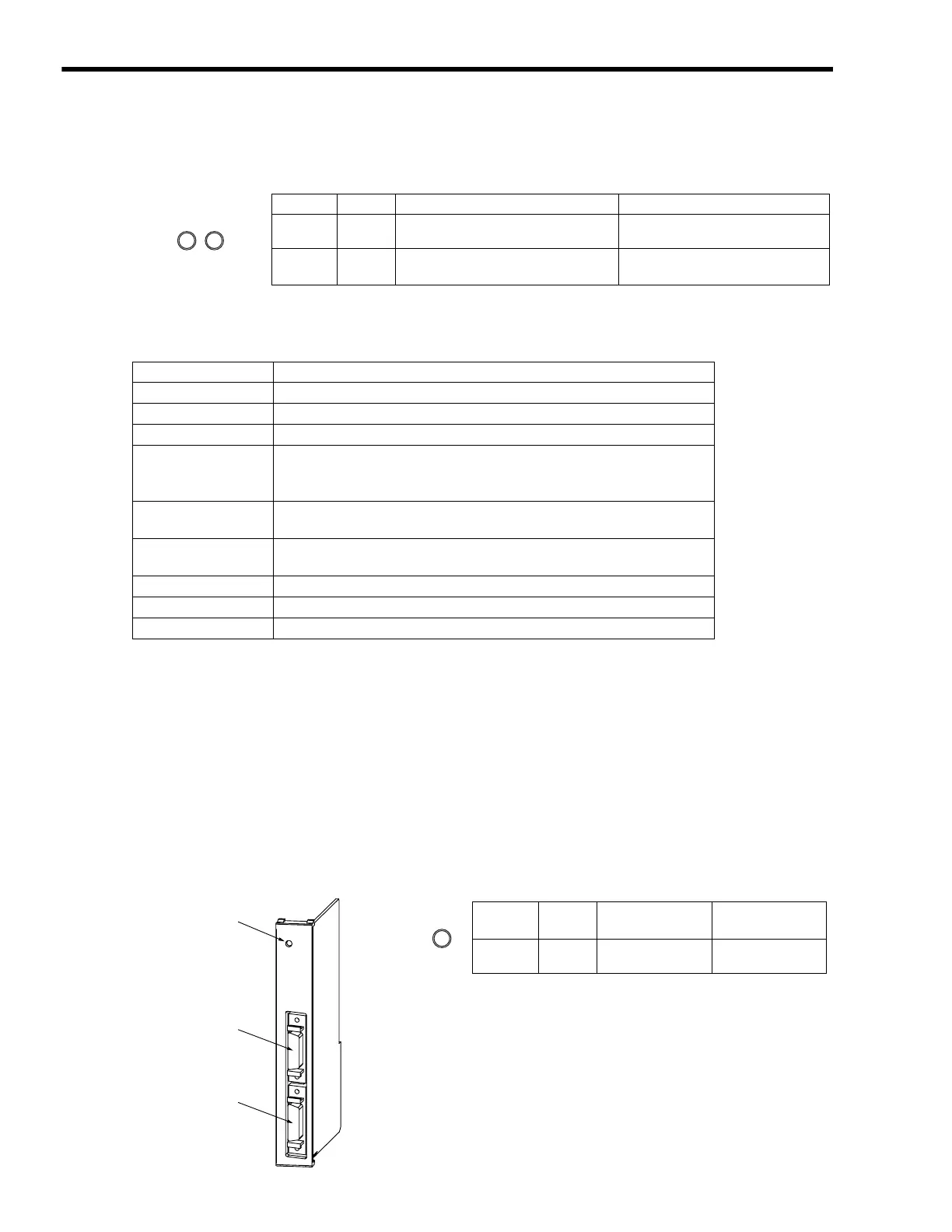

( 2 ) External Appearance and LED Indicators
■
External Appearance
■
LED Indicators
Indicator Color Status When Lit Status When Unlit
RUN Green
Normal operation Error occurrence
FUSE Red
One or some of the output protection
fuses is blown out.
All the output protection fuses are
normal.
FUSERUN
Item Specifications
Classification
I/O Module
Name
DO-01
Model
JAPMC-DO2300
Digital Output
64 outputs
External power supply voltage: 24-VDC
±20% (+19.2V to +28.8V)
Output current: 100 mA max.
Connectors
CN1: Output connector
CN2: Output connector
Indicators
RUN (green)
FUSE (red)
Current Consumption
500mA max.
Dimensions (mm)
125
× 95 (H× D)
Mass
80 g
AI-01
RUN
CN1
CN2
Indicator Color
AI-01 Status
When Lit
AI-01 Status
When Unlit
RUN
Green
Normal operation
Being stopped
RUN
