Mounting and Wiring
4.3.1
SVB-01 Module Connections
4-20
( 5 ) Terminator
The JEPMC-W6011-

Terminator must be connected when connecting the SVB-01 Module in the
MECHATROLINK network in the same way as for the MP2300 Basic Module. Refer to 4.2.3 ( 5 )
Terminator Connections on page 4-13.
( 6 ) System Configuration
■
Connecting the SVB-01 Module to the End of the MECHATROLINK Network

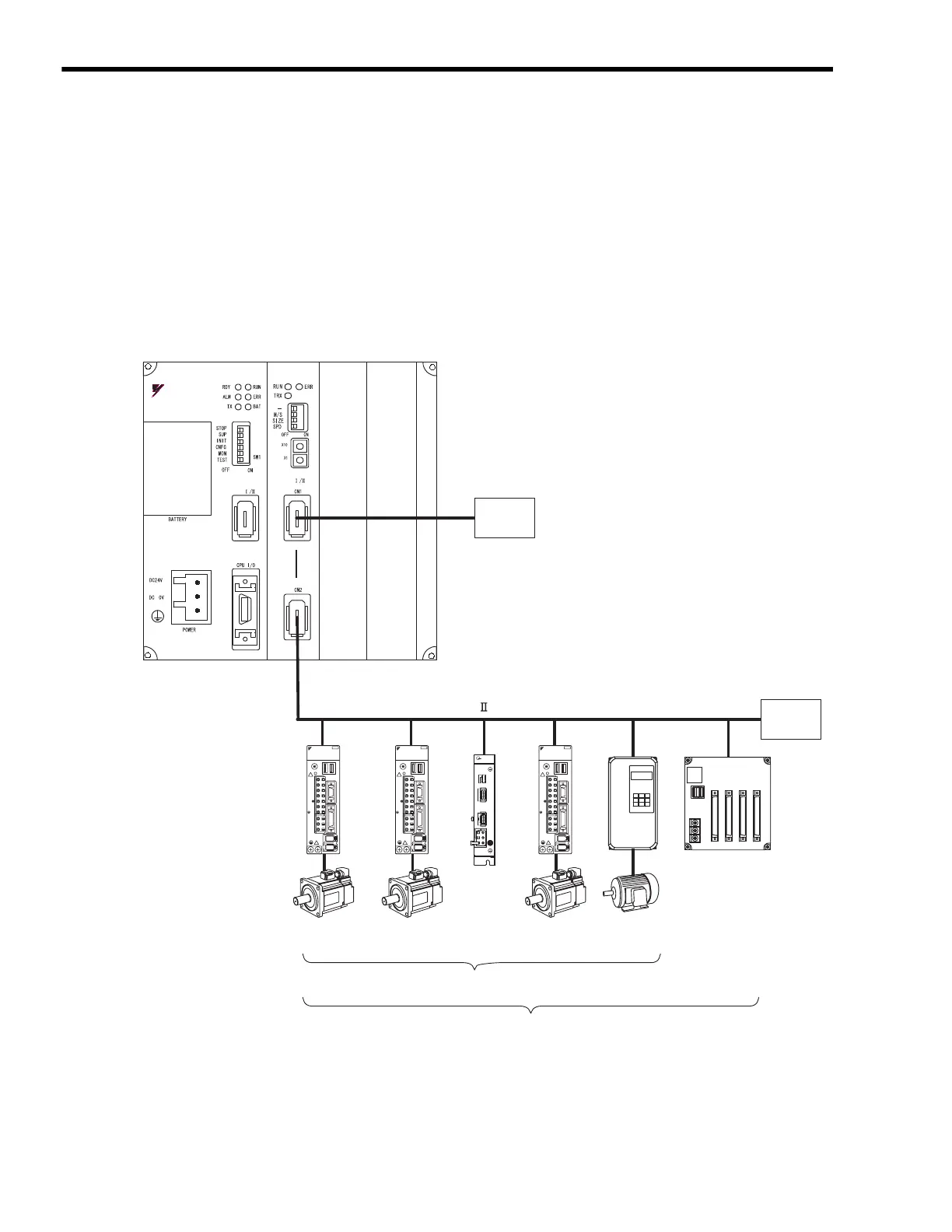

The following diagram shows the system configuration.

Insert a JEPMC-W6022 Terminator into the unused MECHATROLINK port.
MP2300
YASKAWA
MECHATROLINK-
SVB-01
M-
M-
Terminator
Repeater
Terminator
SERVOPACKs/Inverters for up to 16 stations
Up to 21 stations including I/Os
Inverter
I/O
SERVOPACK
SERVOPACK
SERVOPACK
CN1
IN1 OUT1 IN2 OUT2
A1 A1 A1 A1B1B1 B1 B1
YASKAWA
JEPMC-IO2310
YASKAWA SERVOPACK
200V
SGDS-01A12A
SW1
CHARGE
C
N
3
A/B
C
N
1
N
2
C
N
4
L1
L2
L2C
L1C
B1/
B2
U
V
W
C
N
6
YASKAWA SERVOPACK
200V
SGDS-01A12A
SW1
CHARGE
C
N
3
A/B
C
N
1
N
2
C
N
4
L1
L2
L2C
L1C
B1/
B2
U
V
W
C
N
6
YASKAWA SERVOPACK
200V
SGDS-01A12A
SW1
CHARGE
C
N
3
A/B
C
N
1
N
2
C
N
4
L1
L2
L2C
L1C
B1/
B2
U
V
W
C
N
6
