4
Mounting and Wiring
4.4.3
DO-01 Module Connections
4-50
( 5 ) Output Circuit
The following table shows the DO-01 Module output circuit specifications.

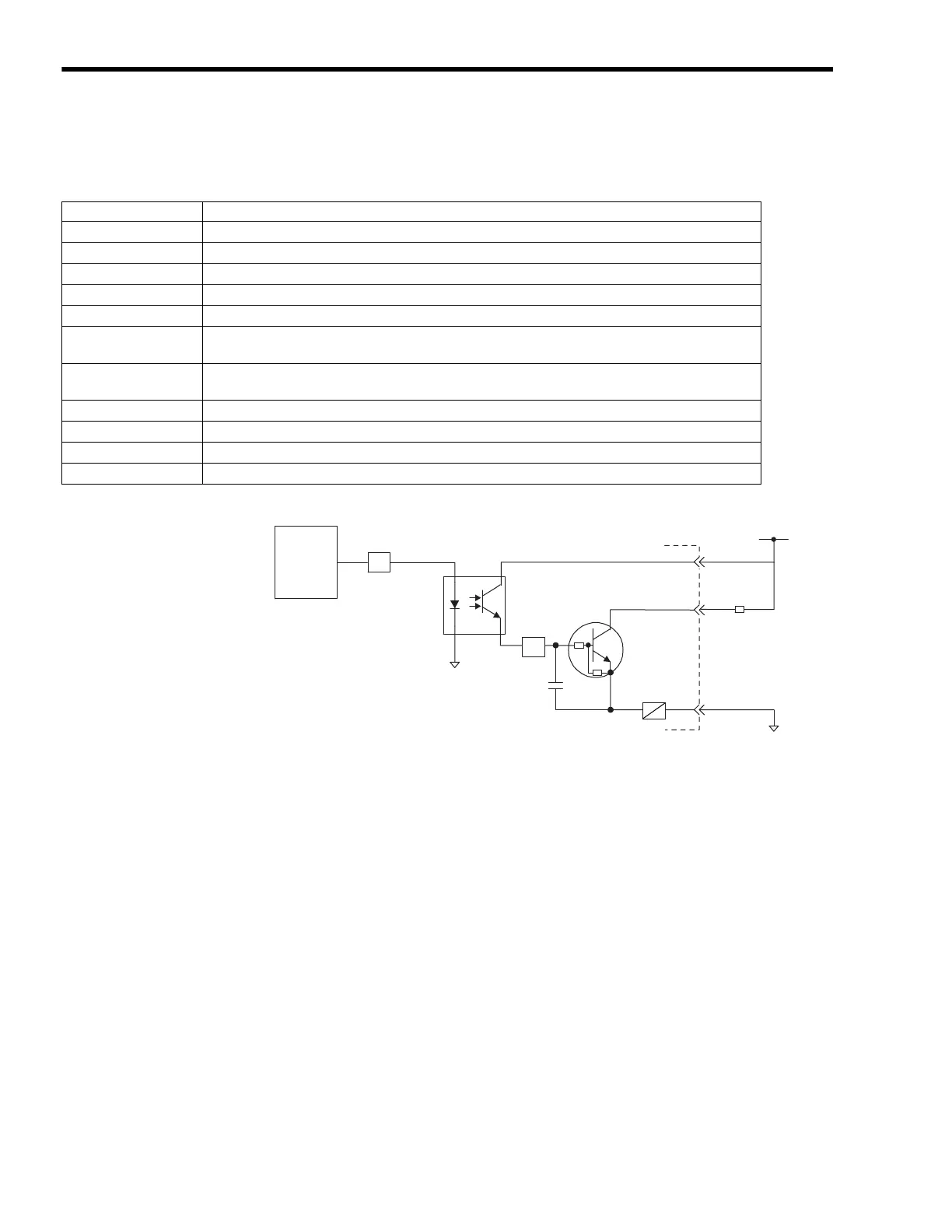

Fig. 4.13 DO-01 Digital Output Circuit (Sink Mode Output)
Item Specifications
Outputs
64 points
Output Format Transistor/open collector, sink mode output
Isolation Method
Photocoupler
Output Voltage
+ 24 VDC (+19.2 V to +28.8 V)
Output Current
100 mA max.
Leakage Current
When OFF
0.1 mA max.
ON Time/OFF Time
ON: 0.5 ms max.
OFF: 1 ms max.
Number of Commons
8 points
Protection Circuit
Fuse connected to each common line
Fuse Rating
1 A
Error Detection
Fuse blowout detection
0
24
DO_24V
Output
register
DO_OUT
DO_COM
+24V
R
Photocoupler
R
Transistor
