( 2 ) Self Configuration of Each Module
If devices are added, self-configuration can be executed separately for the Module (port) that has
been changed.
1.

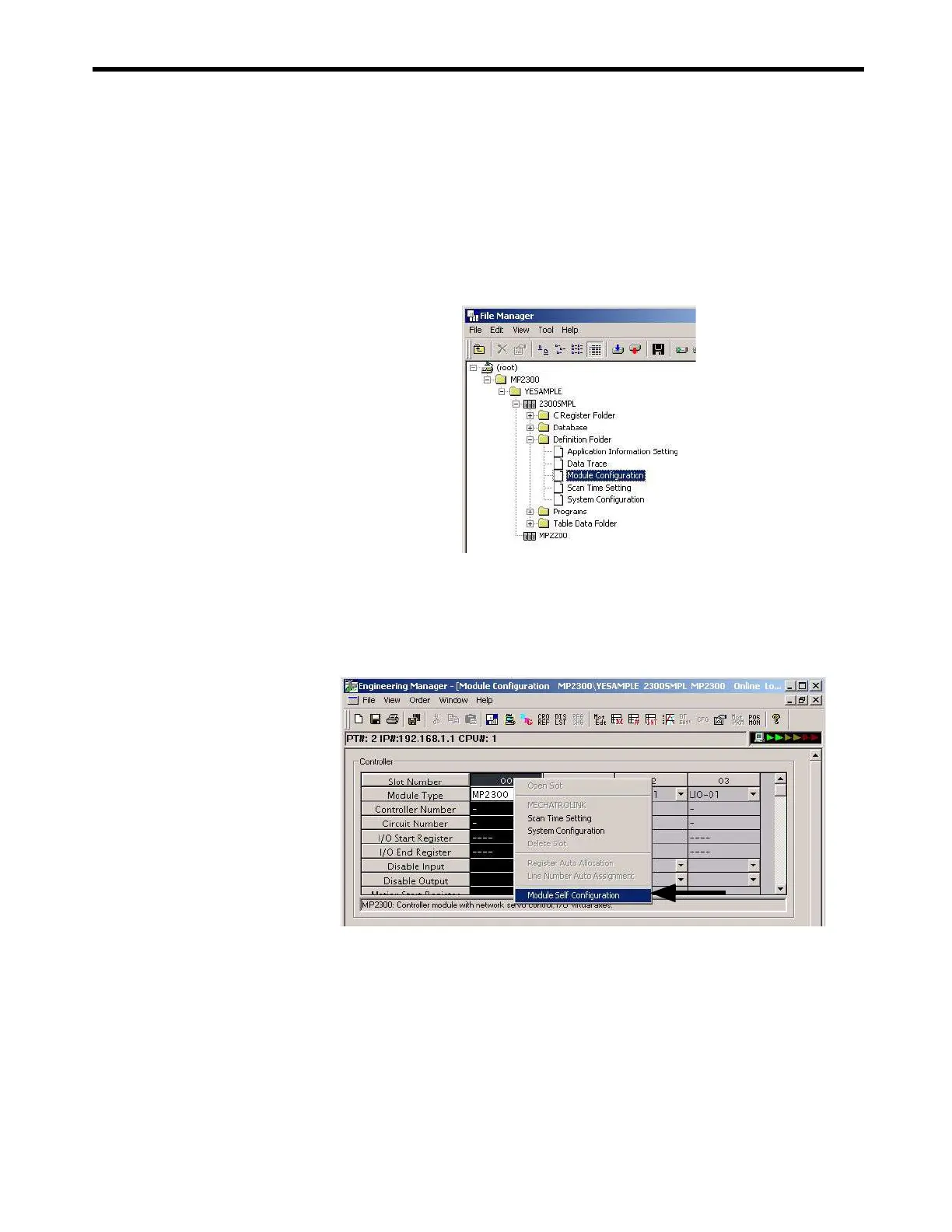

Double-click the Controller folder and the Definition folder in the File Manager Win-
dow to display five definition files under the Definition folder. Double-click Module
Configuration.
The Engineering Manager Window will start and the Module Configuration Window will
appear.
2.
Right-click the Module for which devices have been added and select Module Self
Configuration from the pop menu to execute self-configuration.
The RUN LED indicator will blink and a message indicating that the module configuration def-
initions are being created will be displayed. Once self-configuration has been completed, the
message will disappear and the RUN LED indicator will return to its original state.

When MP2300 is selected as an individual module, executing Module Self Configuration
will configure all the modules.
3.
Select File - Save & Save to Flash. A confirmation message will appear. Click the
Yes Button to save the module configuration definitions.
