Model System Startup Procedure
2-9
( 2 ) Setting and Saving Communication Process
Make communication settings for connecting the MPE720 and the MP2300 using the following
procedure. These settings are not required if the communication settings have already been made.

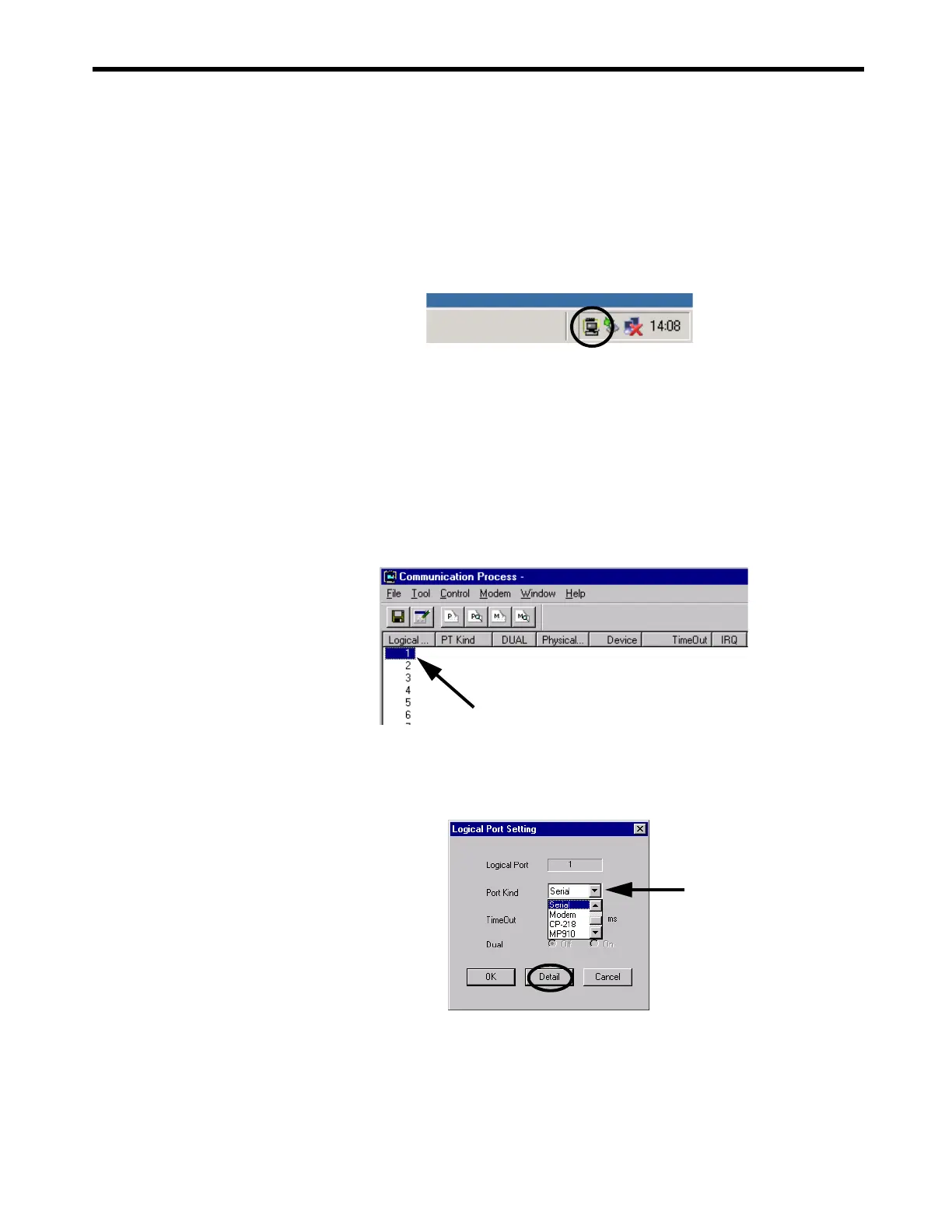

1.
When the MPE720 is started, the Communication Process icon will be displayed on
the task tray at the right bottom of the screen. Click the Communication Process
icon to open the Communication Process Window.
In this section, Logical PT number 1 is assigned for RS-232C connection and 2 for Ethernet
connection in the Communication Process Window.
z
Settings for RS-232C Connection
2.
Double-click Logical PT number 1 in the Communication Process Window to display
the Logical Port Setting Window.
The Logical Port Setting Window appears.
3.
For RS-232C connections, select Serial under Port Kind and then click Detail Button
in the Logical Port Setting Dialog Box.
The Serial Port Setting Dialog Box appears.
Communication Process icon
