Precautions for Using the MP2300
11.3.1
Operations and Parameter Data Flow
11-14
( 6 ) Changing Parameters in the SERVOPACK Tab Page

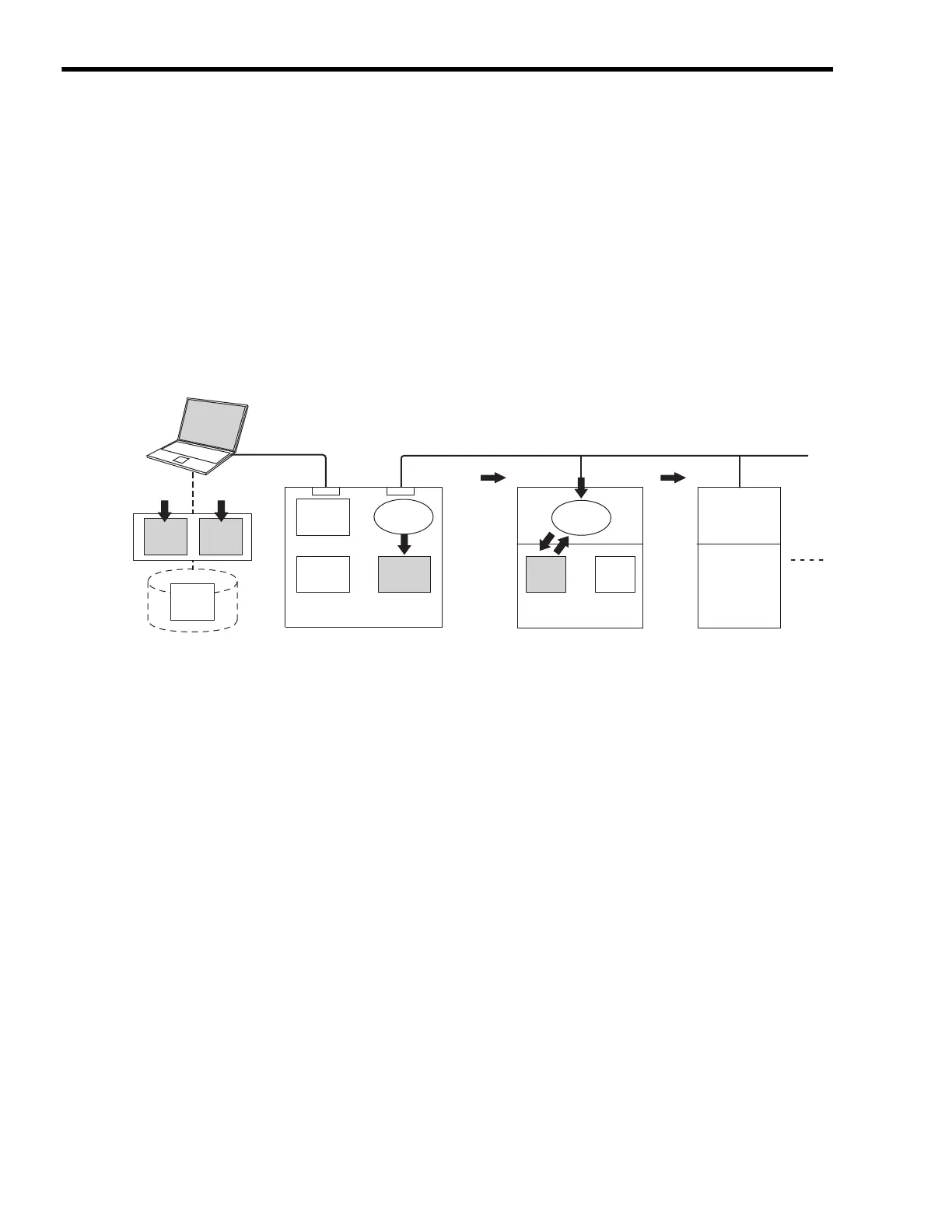

The data flow for SERVOPACK parameters is as follows when parameters for the cursor position are
changed from the SERVOPACK Tab Page in the SVB Definition Window for MPE720:
• The MPE720 writes parameters of the relevant axis to the followings when the ENTER Key is
pressed on the computer. (The parameters other than those of the relevant axis will not be writ-
ten.)
• Input Data (set data) on the SERVOPACK Tab Page
• SDRAM of the MP2300
• RAM of the SERVOPACK
• After having completed writing, the MPE720 updates the values in Input Data on the SERVO-
PACK Tab Page with the parameter values stored in the RAM of the SERVOPACK.
MECHATROLINK
RAM
EEP
-ROM
SRAM
SDRAM
Input
Data
MPE720 㧔online㧕
HDD in personal computer
Display
Current
Value
Input
Data
Flash
Memory
Servo Parameters
(All Axes)
Parameters
System
Software
Control
Software
SERVOPACK SERVOPACK
Send Send
MP2300
