11.3
SERVOPACK Parameter Data Flow
11-13
( 5 ) Copying Current Values to Set Values (Input Data) in the SERVOPACK Tab
The data flow for SERVOPACK parameters is as follows when selecting Edit - Copy Current Value
from the SERVOPACK Tab in the SVB Definition Window on the MPE720:
• The MPE720 copies the values currently displayed in Current Value to Input Data on the SER-
VOPACK Tab and displays.

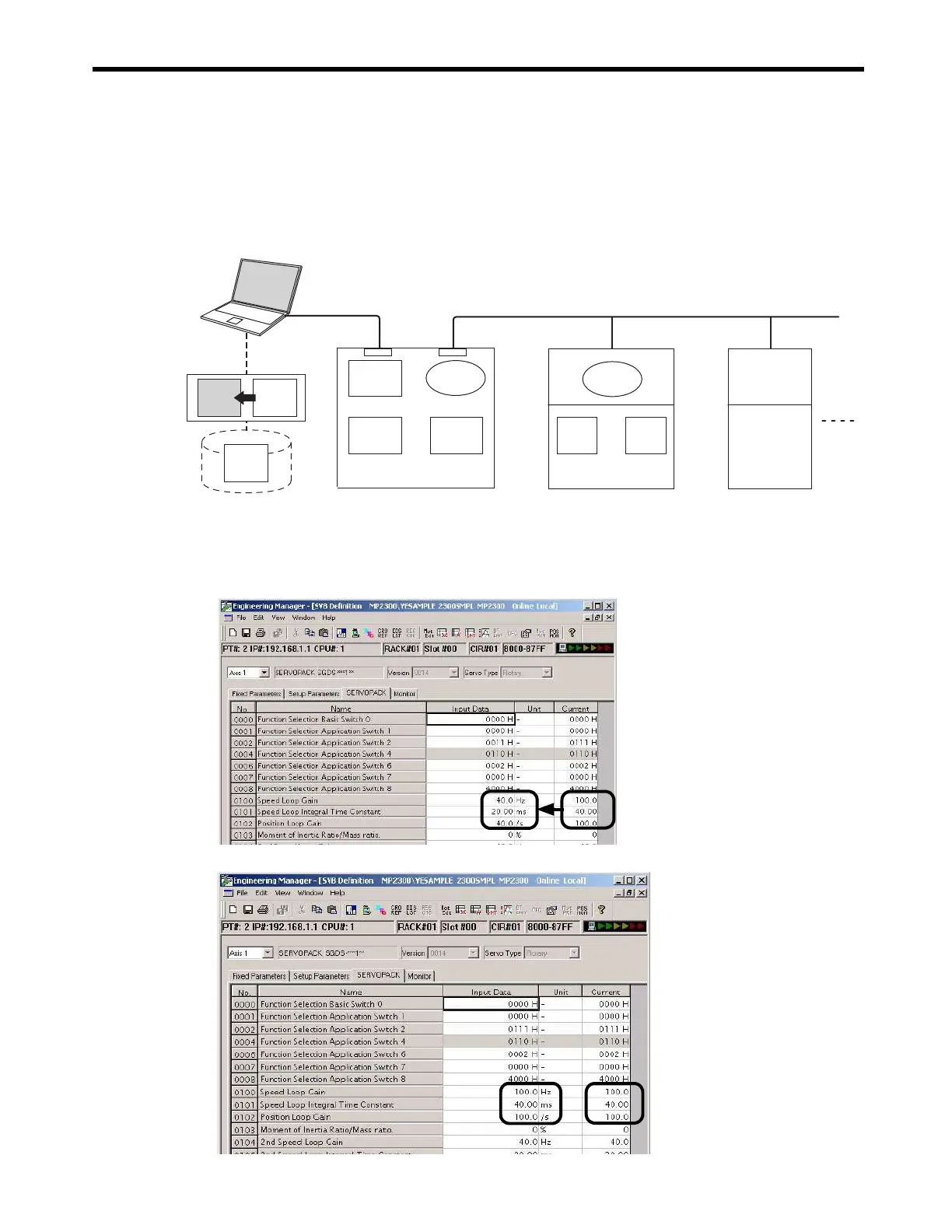

The following figure shows a display example after having selected Edit - Copy Current Value on
the SERVOPACK Tab in the SVB Definition Window. The values in Current Value are copied to
Input Data.
MECHATROLINK
RAM
EEP
-ROM
SRAM
SDRAM
MP2300
SERVOPACKSERVOPACK
Control
Software
System
Software
Parameters
Servo Parameters
(All Axes)
Flash
Memory
Input
Data
MPE720 㧔online㧕
HDD in personal computer
Display
Current
Value
Input
Data
Before copying
After copying
To Next Page
