11
Precautions for Using the MP2300
11.3.1
Operations and Parameter Data Flow
11-12

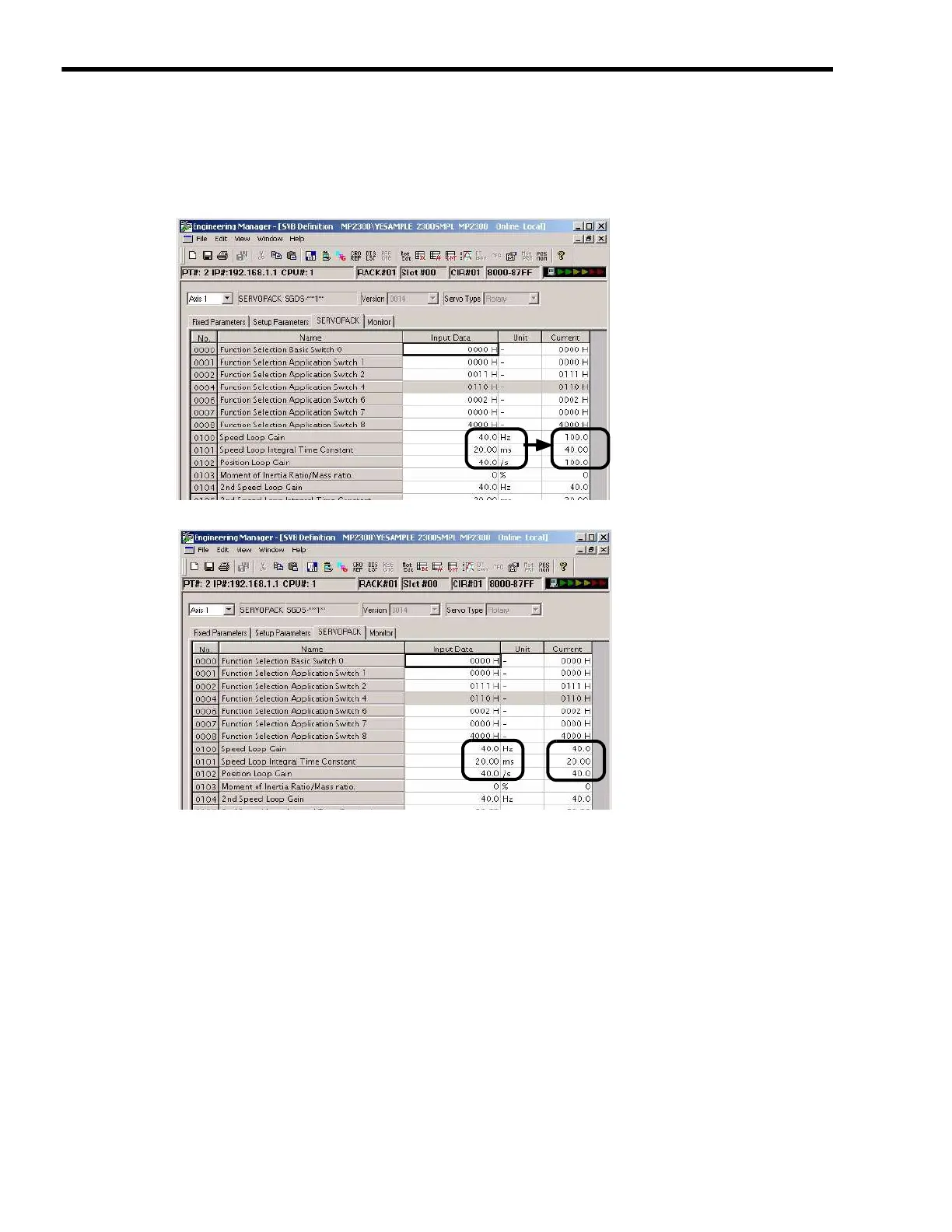

The following figure shows a display example after having executed save operation on the SERVO-
PACK Tab in the SVB Definition Window. After having saved the data, the values in Input Data of
all the parameters become the same as the values in Current Value on the SERVOPACK Tab.

The saving operation of SERVOPACK parameters can be used for writing data after SERVO-
PACK replacement because it writes all the parameters of the relevant axis.
Before saving
After saving
To Next Page
