YASKAWA JEPMC-MP2300-Y Series User Manual

11.3
SERVOPACK Parameter Data Flow
11-11
The values in Current Value are different from the values in Input Data.
( 4 ) SERVOPACK Parameters Saved in the MPE720

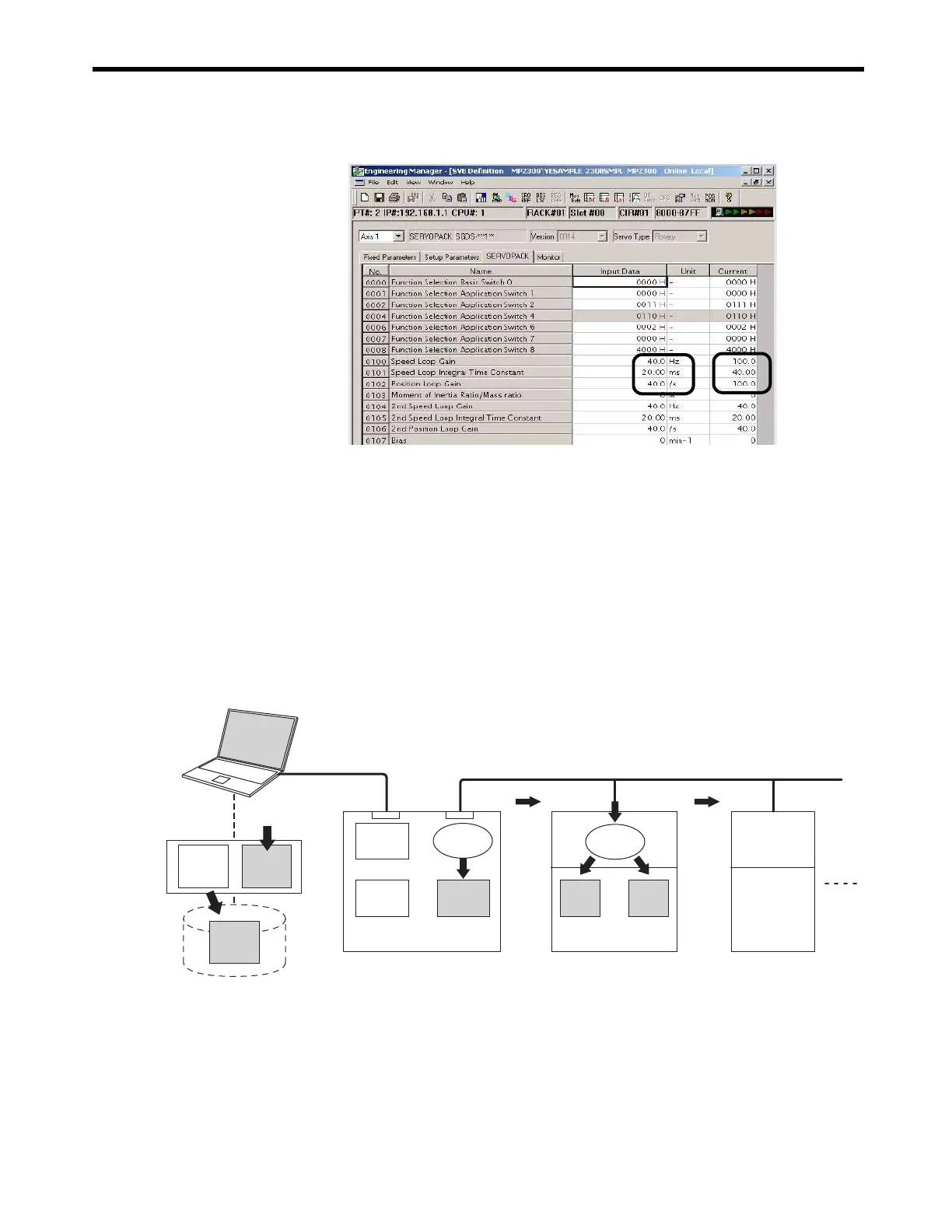

The data flow for SERVOPACK parameters is as follows when File
−
Save is selected from the
SERVOPACK Tab Page:
• The MPE720 writes all the parameters in Input Data currently displayed on SERVOPACK Tab
Page of the relevant axis to the followings.
• HDD (hard disk) of the personal computer
• SDRAM of MP2300
• RAM and EEPROM of the SERVOPACK
• After having completed writing the parameters, the MPE720 updates the values in Current Value
on the SERVOPACK Tab Page with the SERVOPACK parameter values stored in the RAM.
MECHATROLINK
RAM
EEP
-ROM
SRAM
SDRAM
Input
Data
MPE720 㧔online㧕
HDD in personal computer
Display
Current
Value
Input
Data
Flash
Memory
SERVOPACK
Parameters
(All Axes)
Parameters
System
Software
Control
Software
SERVOPACK SERVOPACK
Send Send
MP2300
