11
Precautions for Using the MP2300
11.3.1
Operations and Parameter Data Flow
11-10
( 2 ) Normal Operation
• Control software of the SERVOPACK operates based on the parameter data held in
SERVOPACK’s RAM.
• Some of MP2300 setting parameters and commands temporarily change SERVOPACK parame-
ters (refer to Chapter 6 Motion Parameters for details). RAM in the SERVOPACK are written.

Parameters held in the SERVOPACK’s RAM are displayed on a Digital Operator connected
to the SERVOPACK. They are also written to EEPROM when the DATA/ENTER Key is
pressed.
( 3 ) When the SERVOPACK Tab Page Is Open

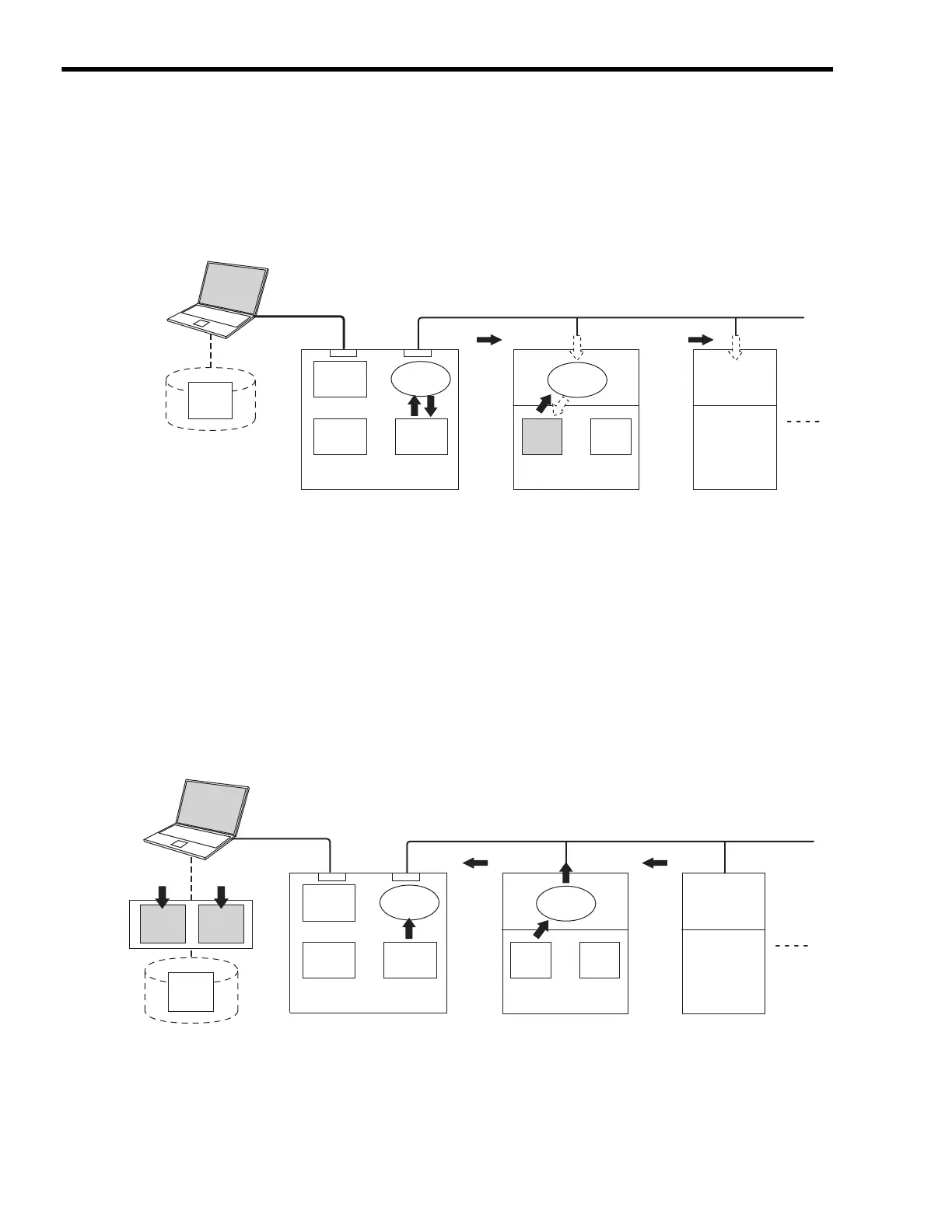

The data flow for SERVOPACK parameters is as follows when the SERVOPACK Tab Page is open
in the SVB Definitions Window on the MPE720 (refer to 2.1.6 ( 4 ) Set and Save Motion Fixed
Parameters on page 2-28 for details on how to open the SERVOPACK Tab Page.):
• The MPE720 writes and displays the parameters that are held in the SERVOPACK’s RAM for the
relevant axis to the Current Value in the SERVOPACK Tab Page.
It also reads and displays the values that are held in the MP2300’s SDRAM values to the Input
Data in the SERVOPACK Tab.
The following figure shows an example of the SERVOPACK Tab in the SVB Definition Window.
MECHATROLINK
RAM
EEP
-ROM
SRAM
SDRAM
Input
Data
MPE720
HDD in personal computer
Flash
Memory
SERVOPACK
Parameters
(All Axes)
Parameters
System
Software
Control
Software
SERVOPACK SERVOPACK
Send Send
When the MP2300 has
temporarily changed
MP2300
SDRAM
SRAM
EEP
-ROM
RAM
MECHATROLINK
Input
Data
MPE720 (online)
HDD in personal computer
Display
Current
Value
Input
Data
MP2300
Send Send
SERVOPACKSERVOPACK
Control
Software
System
Software
Parameters
SERVOPACK
Parameters
(All Axes)
Flash
Memory
