2.1
Model System Startup Procedure
2-17
2.

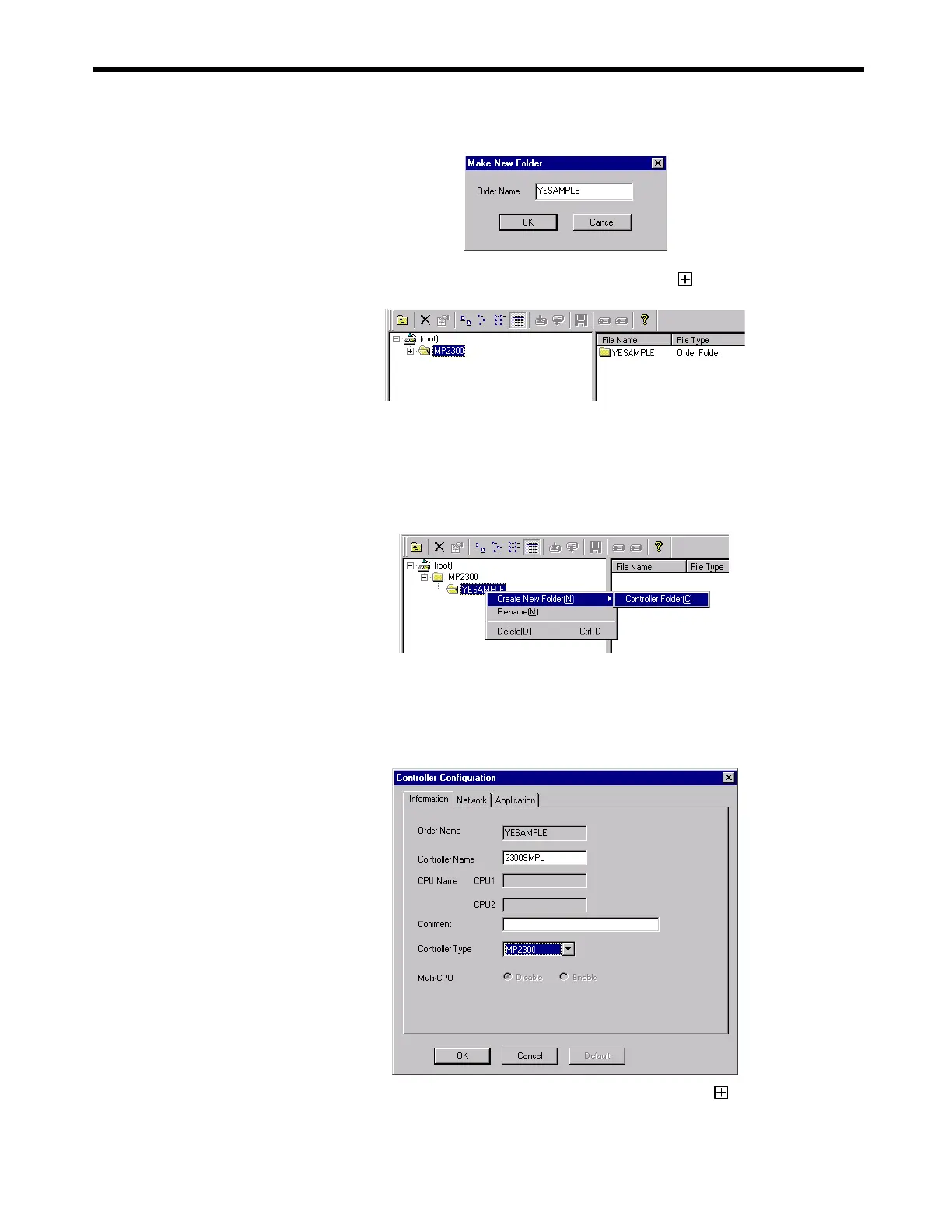

Enter an Order Folder name of up to 8 characters and click the OK Button.
A new Order Folder will be created. Click the group folder or to display the entered Order
Folder name.
( 5 ) Creating Controller Folders (Required)
In the File Manager Window, create a Controller Folder for storing programs.
1.
Right-click the Order Folder in which the Controller Folder is to be created and select
Create New Folder - Controller Folder from the pop-up menu.
The Controller Configuration Dialog Box will be displayed.
2.
Enter a Controller Folder name of up to 8 characters under Controller Name, select
MP2300 under Controller Type, and click the OK Button.
A new Controller Folder will be created. Click the Order Folder or to display the entered
Controller Folder name.
To Next Page
