2
System Startup and Sample Programs
2.1.6
Reading Sample Programs and Setting and Saving Parameters
2-26
2.

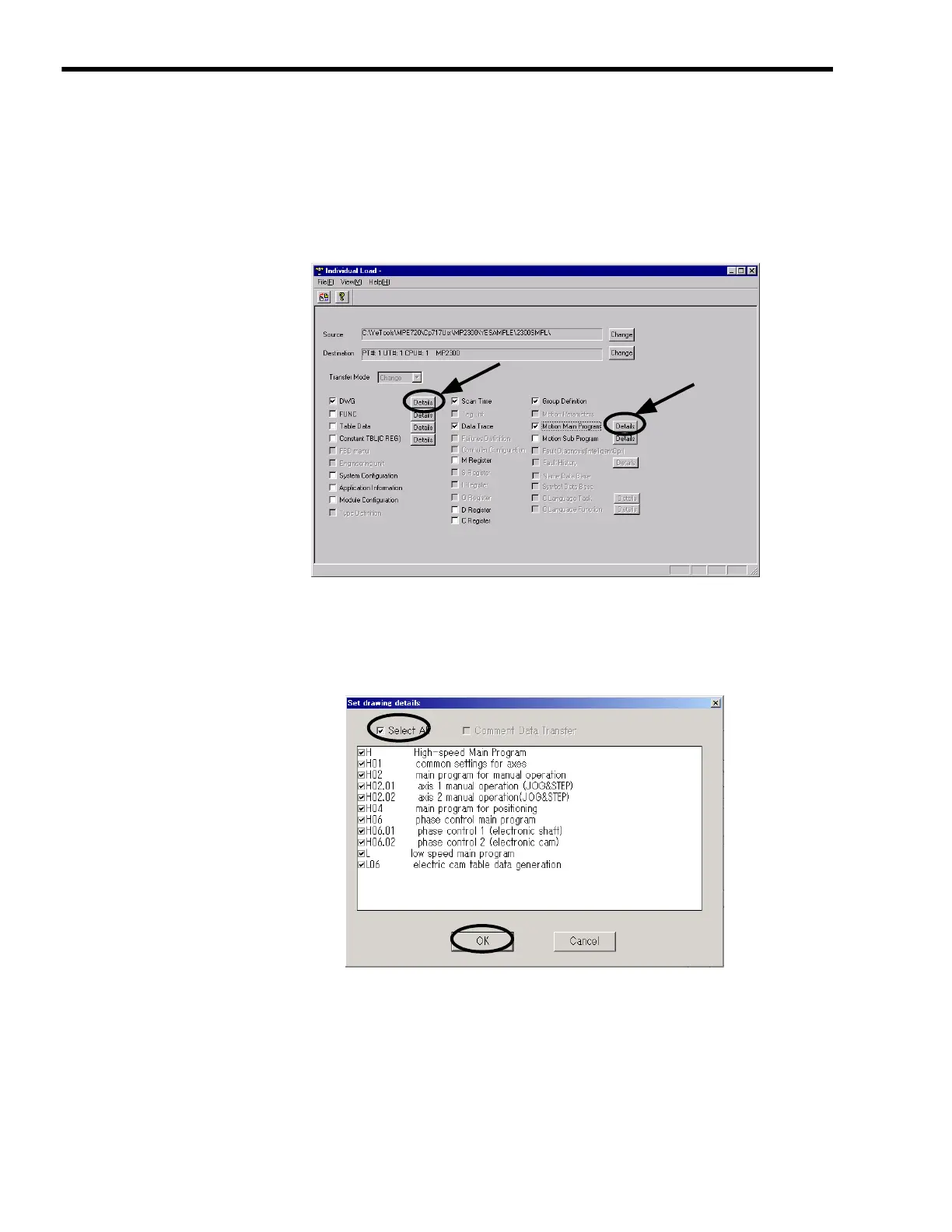

Select the programs to be transferred. For programs with a Details Button next to
them, click the Details Button and select the individual function programs for the
program listed in the Set Details Dialog Box that is displayed.
In this example, DWG, Scan Time, Data Trace, Group Definition, and Motion Main Pro-
gram are selected, and detailed settings are made for DWG and Motion Main Pro-
gram.
a) Set Drawing Details Dialog Box
The details for the DWG sample program are shown below. Select the programs to be
transferred and click the OK Button. If Select All is selected, all programs for the DWG
program will be selected. In this example, select Select All and click the OK Button to
return to the Individual Load Window.
To Next Page
