2
System Startup and Sample Programs
2.1.6
Reading Sample Programs and Setting and Saving Parameters
2-34
3.

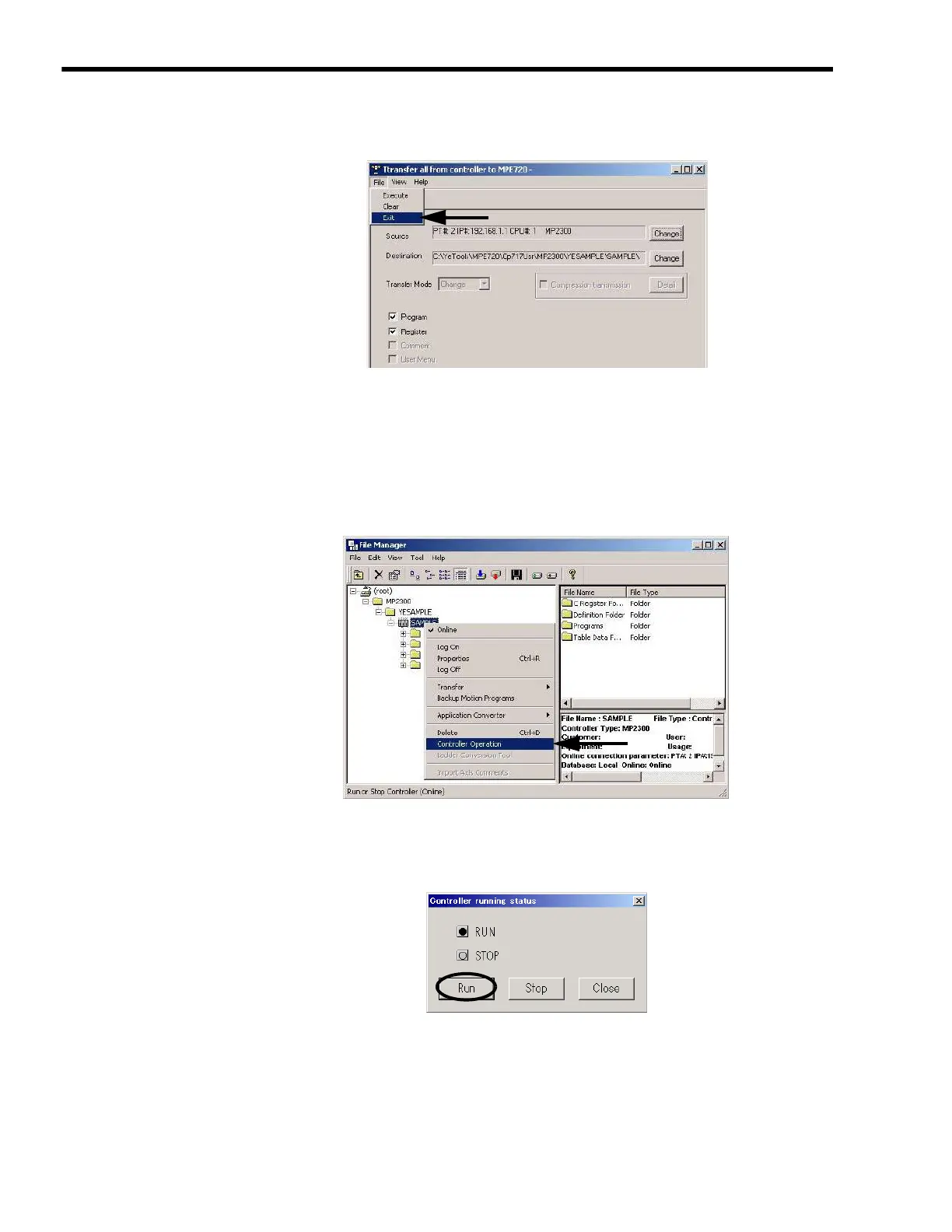

Select File - Exit to stop the dumping of all data.
( 8 ) CPU RUN Settings
If the CPU STOP status is not cleared after executing processes such as saving to flash memory, use
the following procedure to return to RUN status.
1.
Right-click on the Controller Folder where sample programs are saved and select
Controller Operation from the pop-up menu that is displayed.
The Controller Running Status Dialog Box will appear.
2.
Click the Run Button.

To stop the CPU, for example to verify errors, click the STOP Button displayed here.
To Next Page
