Checking Sample Program Operation
2-49
( 3 ) Display Tuning Panel for H06 Drawing
1.

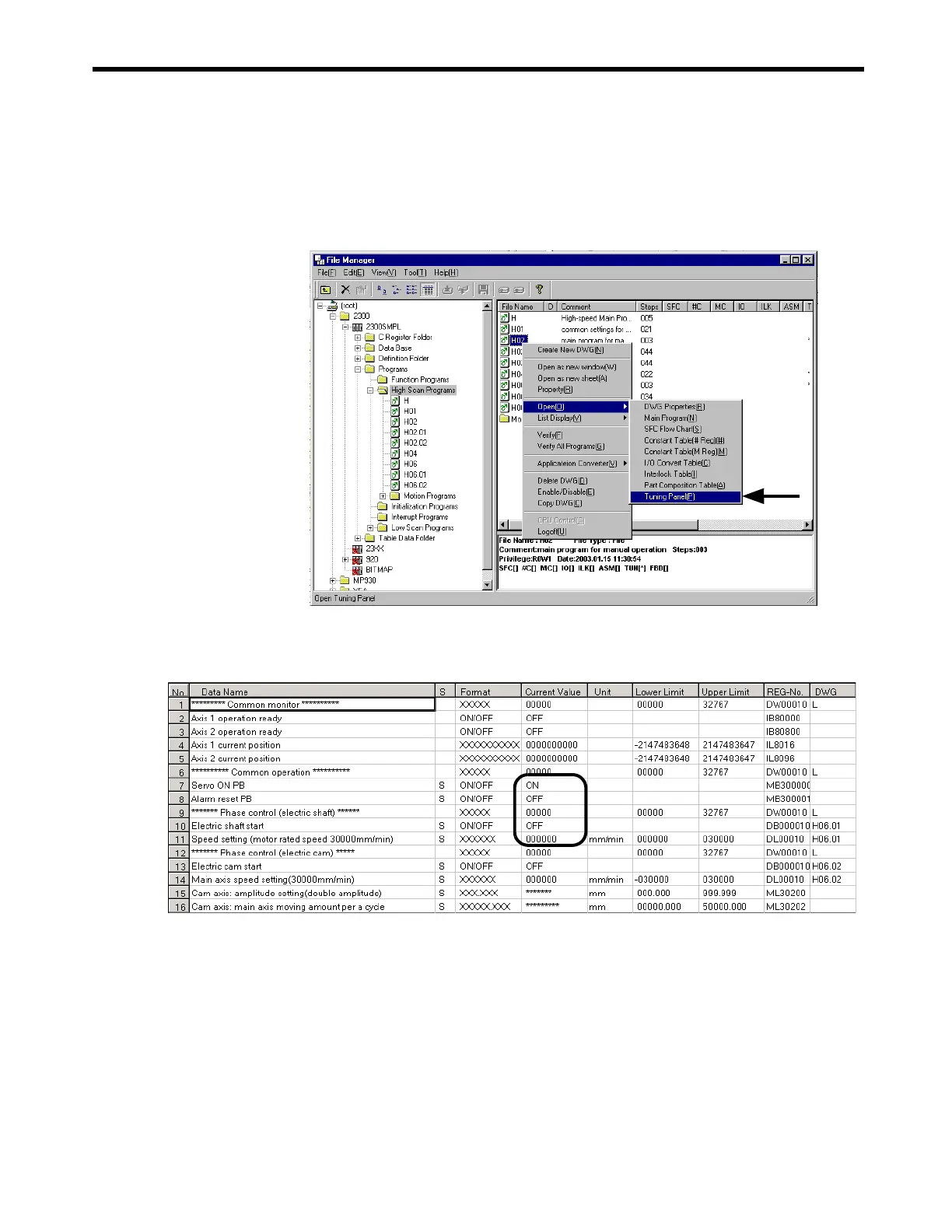

Use the same procedure as 2.2.1 ( 2 ). Right-click the H06 Drawing in the High Scan
Programs folder in the File Manager Window and select Open - Tuning Panel from
the pop-up menu that is displayed.
Engineering Manager will start and the following Tuning Panel Window for the H06 Drawing
will be displayed.
Model system operation can be controlled by writing the current values for Common operation
and Phase control (electric shaft) from the Tuning Panel.
