Agilent Technologies E6198B User Manual

5-34 E6198B Switch/Load Unit User Manual
5 Using Load Cards and Loads
Current Sharing
Notice in the wiring schematic (Figure 5-23) that pins A, C and
E in each row of J1/J2 are connected together on the PC board.
When connecting high-current (>3 amp) loads, wire across all
three pins in each row of P1/P2 (see Figure 5-24). This ensures
current sharing across all pins and prevents premature pin
failure from excessive current flow.
CAUTION
Connecting high-current (>4 amp) loads without wiring across all
three pins in the row can cause premature pin failure.

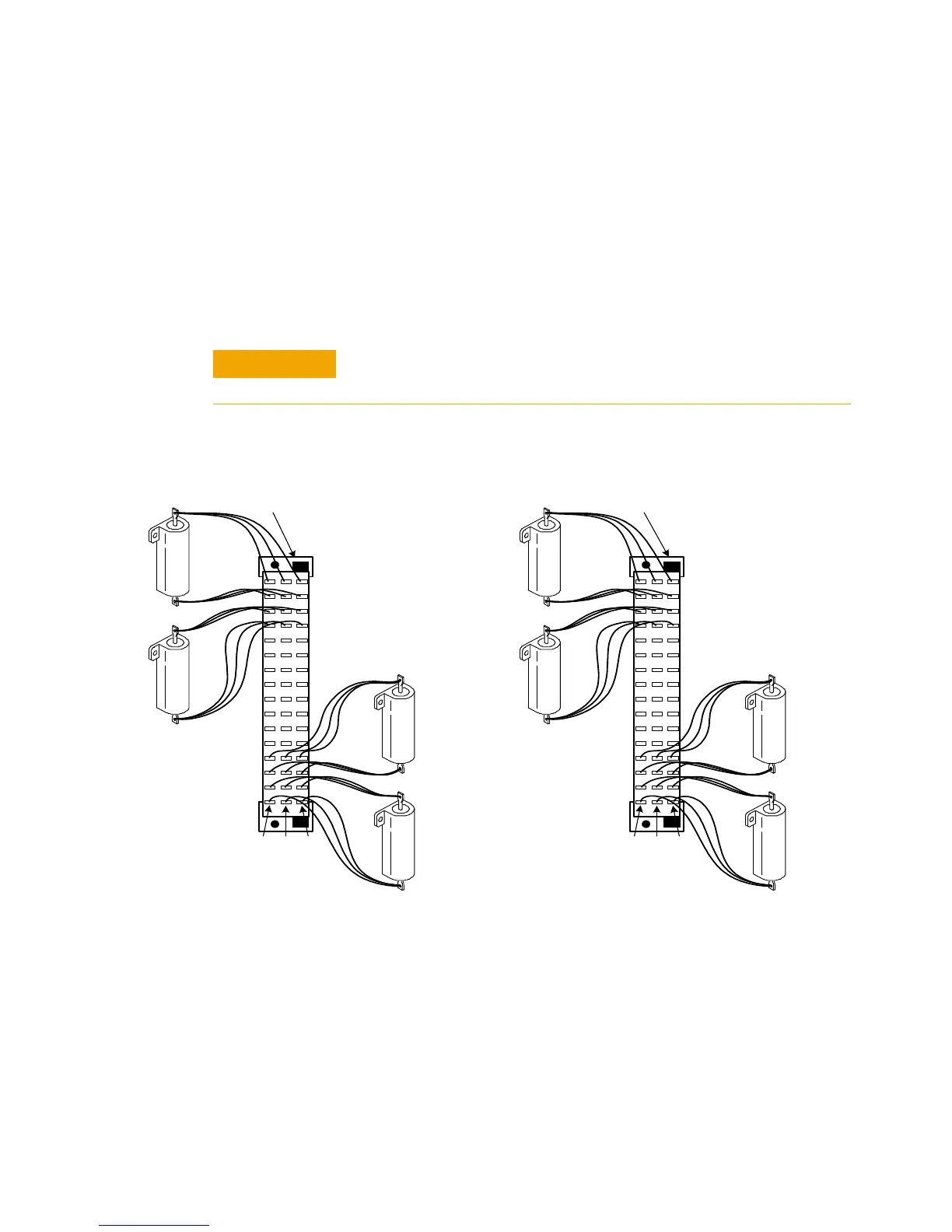

Figure 5-24 Agilent E6176A Current Sharing Example
Load 9
Load 10
Load 15
Load 16
P2 Connector
(Wiring Terminal View)
Load 1
Load 2
Load 7
Load 8
ACE
P1 Connector
(Wiring Terminal View)
Row 1
Row
16
ACE
Row 1
Row
16
