4-12 E6198B Switch/Load Unit User Manual

4 Configuring the Switch/Load Unit

Connecting E6198B to the Computer via USB Interface or Parallel Port

USB interface is introduced in E6198B, on top of parallel port

interface which is available on the older version on SLU. The

USB interface connects to the PC controller using a standard

USB cable. See Figure 4-13.

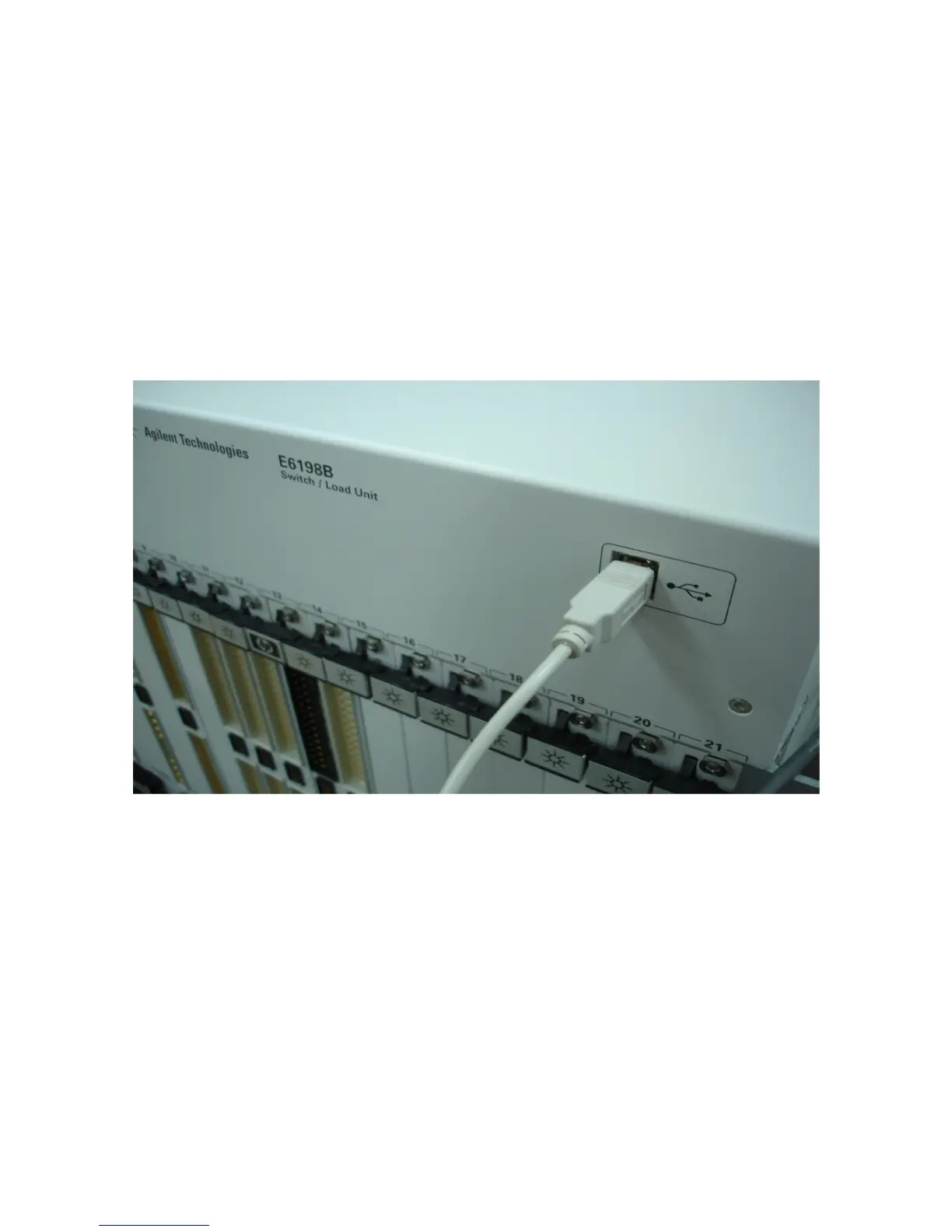

Figure 4-13 USB Cable Connections
